Name: Piston Kit 05-09 KX250 66.40 B, Wossner 8168DB Kawasaki MX
Brand: Wossner
SKU: 56-W844.B.WO

Piston Kit 05-09 KX250 66.40 B, Wossner 8168DB Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

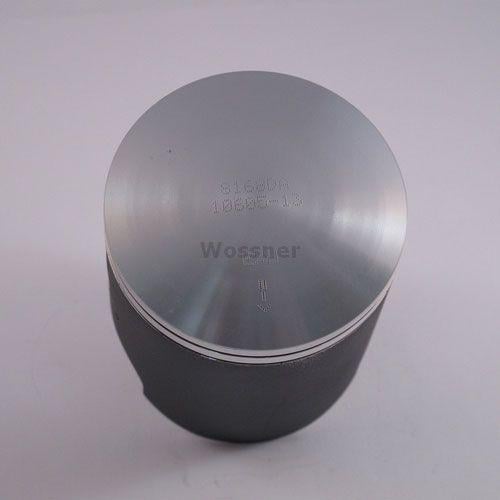

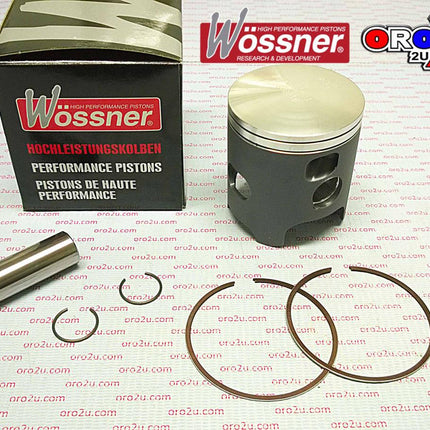

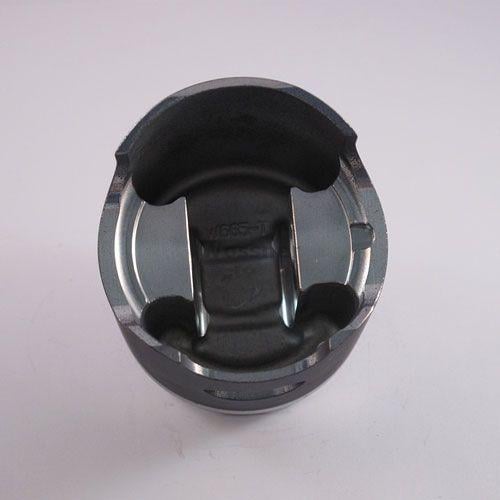

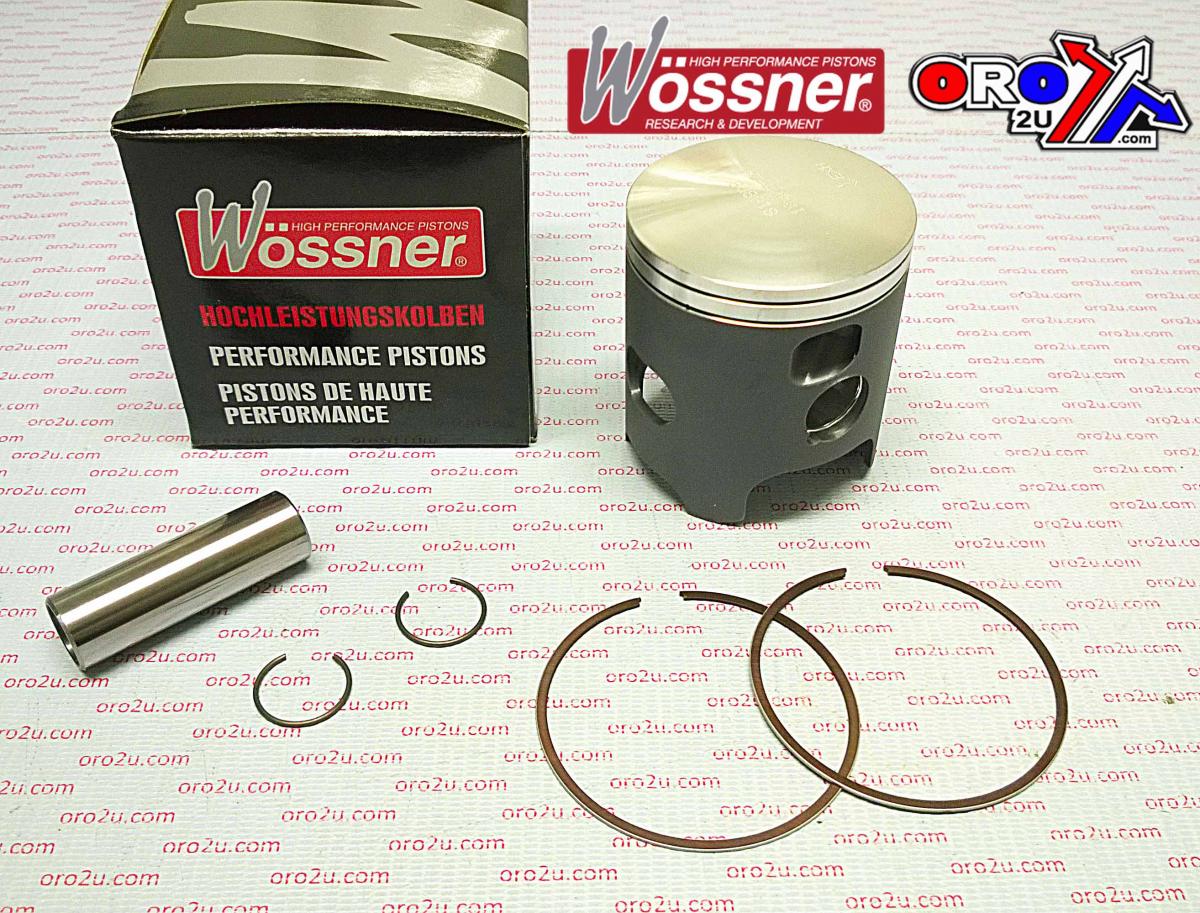

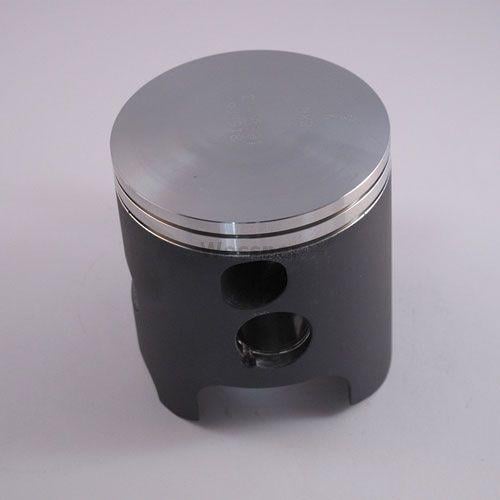

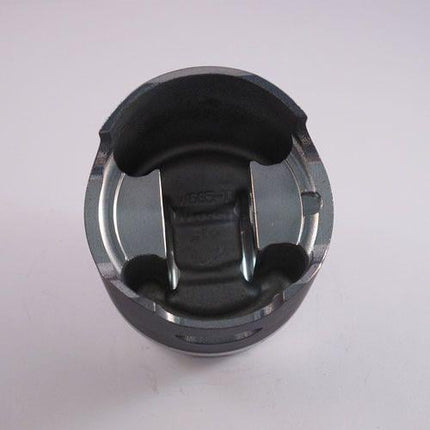

The Wossner 8168DB piston kit is a +0.01 oversize forged piston designed for the Kawasaki KX250 from 2005 to 2009. Featuring a 66.41mm bore and 66.35mm piston diameter, this piston is engineered for high-performance two-stroke applications, offering exceptional durability and thermal management. Its elliptical profile ensures even load distribution during heat expansion, reducing stress and preventing piston failure. Manufactured in Germany, this piston meets strict standards for quality and performance.

Features

Forged construction for superior strength and wear resistance
Optimised for effective heat transfer from the combustion chamber to cylinder walls
Elliptical piston design distributes thrust loads evenly to reduce localised pressure
Precision-manufactured in Germany for high reliability

Specifications

Bore: 66.41 mm
Piston Diameter: 66.35 mm
Display Displacement: 249 cm³
Stroke: 72.00 mm
Piston Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio (Wossner and OEM): 2-stroke
Lock Part Number: CW18
Pin Part Number: WP033
Ring Set Part Number: RSB6640 x 2
Rod Part Number: P2022

Cross-Reference OEM Part Numbers

13001-0058
13002-1098
13008-0013
92033-1336

Vehicle Fitments

2005 Kawasaki KX250
2006 Kawasaki KX250
2007 Kawasaki KX250
2008 Kawasaki KX250
2009 Kawasaki KX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	2005-2008
KTM	SX 250	2003-2016
YAMAHA	YZ 250	2002-2019
SUZUKI	RM 250	2003-2010
KAWASAKI	KX 250	2005-2009
