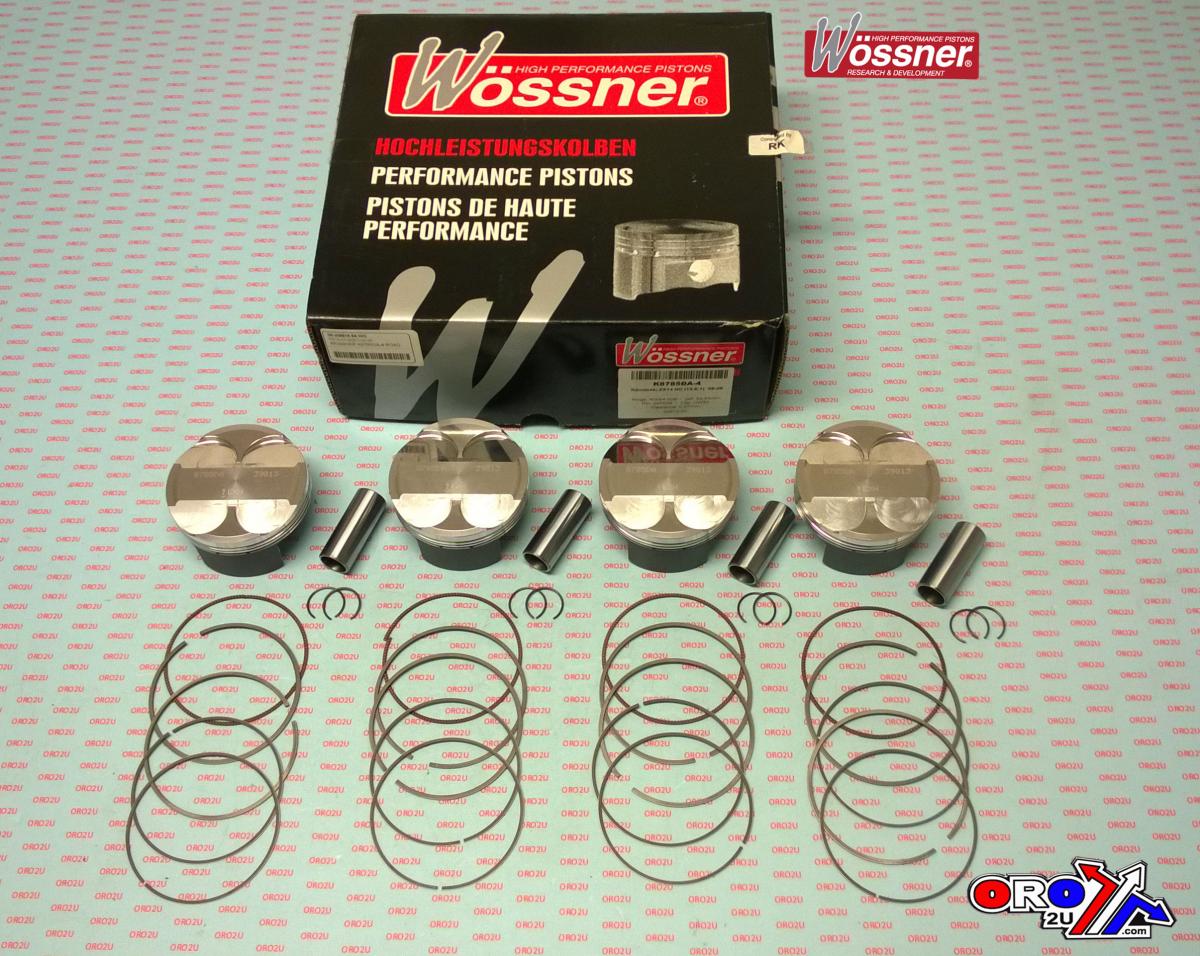

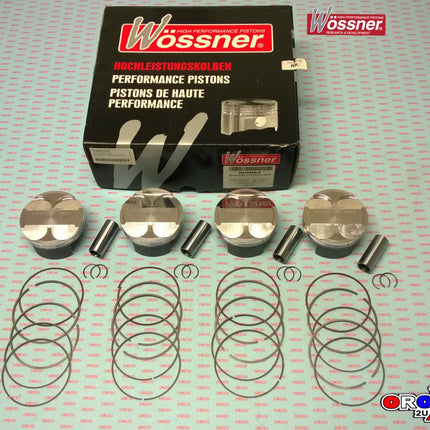

Piston Kit 06-09 ZX14 Kaw 84, Wossner K8785DA-4 Road, Kawasaki

Description

This Wossner piston kit with an 84mm bore is a standard replacement for Kawasaki ZX14 models from 2006 to 2009, including Pro Series configurations. Forged in Germany, the pistons are engineered for high strength and optimal heat dissipation. Featuring a high-compression flat top design, the elliptical profile ensures even load distribution and reduces the risk of piston collapse during high-performance use.

Features

  • Forged construction for maximum durability and strength

  • Designed for efficient combustion heat transfer to cylinder walls

  • Elliptical shape maintains uniform bearing surface under heat expansion

  • Evenly distributes thrust loads to prevent localised pressure points

  • High-compression flat top design

  • Manufactured in Germany

Specifications

  • Bore: 84mm (Standard)

  • Actual bore: 83.93mm

  • Display volume: 1198 / 1257 cm³

  • Stroke: 61.00mm

  • Clearance: 0.07mm

  • Wossner compression ratio: 13.50:1

  • OEM compression ratio: 12.00:1

  • Dome volume: -2.40 cm³

  • Compression height: 24.50mm

Cross-Reference OEM Part Numbers

  • 56-W9816.84.WO

  • K8785DA-4

Vehicle Fitments

  • Kawasaki ZX14 (2006–2009) (Pro Series)

Piston Kit 06-09 ZX14 Kaw 84, Wossner K8785DA-4 Road, Kawasaki

Product form

This Wossner piston kit with an 84mm bore is a standard replacement for Kawasaki ZX14 models from 2006 to 2009,... Read more

1 in stock 1-2 business days

£930.98 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9816.84.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner piston kit with an 84mm bore is a standard replacement for Kawasaki ZX14 models from 2006 to 2009, including Pro Series configurations. Forged in Germany, the pistons are engineered for high strength and optimal heat dissipation. Featuring a high-compression flat top design, the elliptical profile ensures even load distribution and reduces the risk of piston collapse during high-performance use.

    Features

    • Forged construction for maximum durability and strength

    • Designed for efficient combustion heat transfer to cylinder walls

    • Elliptical shape maintains uniform bearing surface under heat expansion

    • Evenly distributes thrust loads to prevent localised pressure points

    • High-compression flat top design

    • Manufactured in Germany

    Specifications

    • Bore: 84mm (Standard)

    • Actual bore: 83.93mm

    • Display volume: 1198 / 1257 cm³

    • Stroke: 61.00mm

    • Clearance: 0.07mm

    • Wossner compression ratio: 13.50:1

    • OEM compression ratio: 12.00:1

    • Dome volume: -2.40 cm³

    • Compression height: 24.50mm

    Cross-Reference OEM Part Numbers

    • 56-W9816.84.WO

    • K8785DA-4

    Vehicle Fitments

    • Kawasaki ZX14 (2006–2009) (Pro Series)
