Name: Piston Kit 06-11 EX650 Ninja, Wossner K8697DA-2 Road, Kawasaki
Brand: Wossner
SKU: 56-W9873.83.WO

Piston Kit 06-11 EX650 Ninja, Wossner K8697DA-2 Road, Kawasaki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

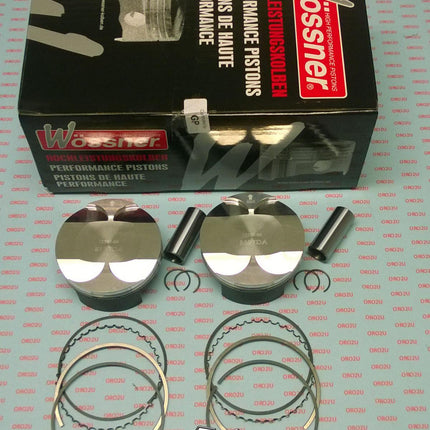

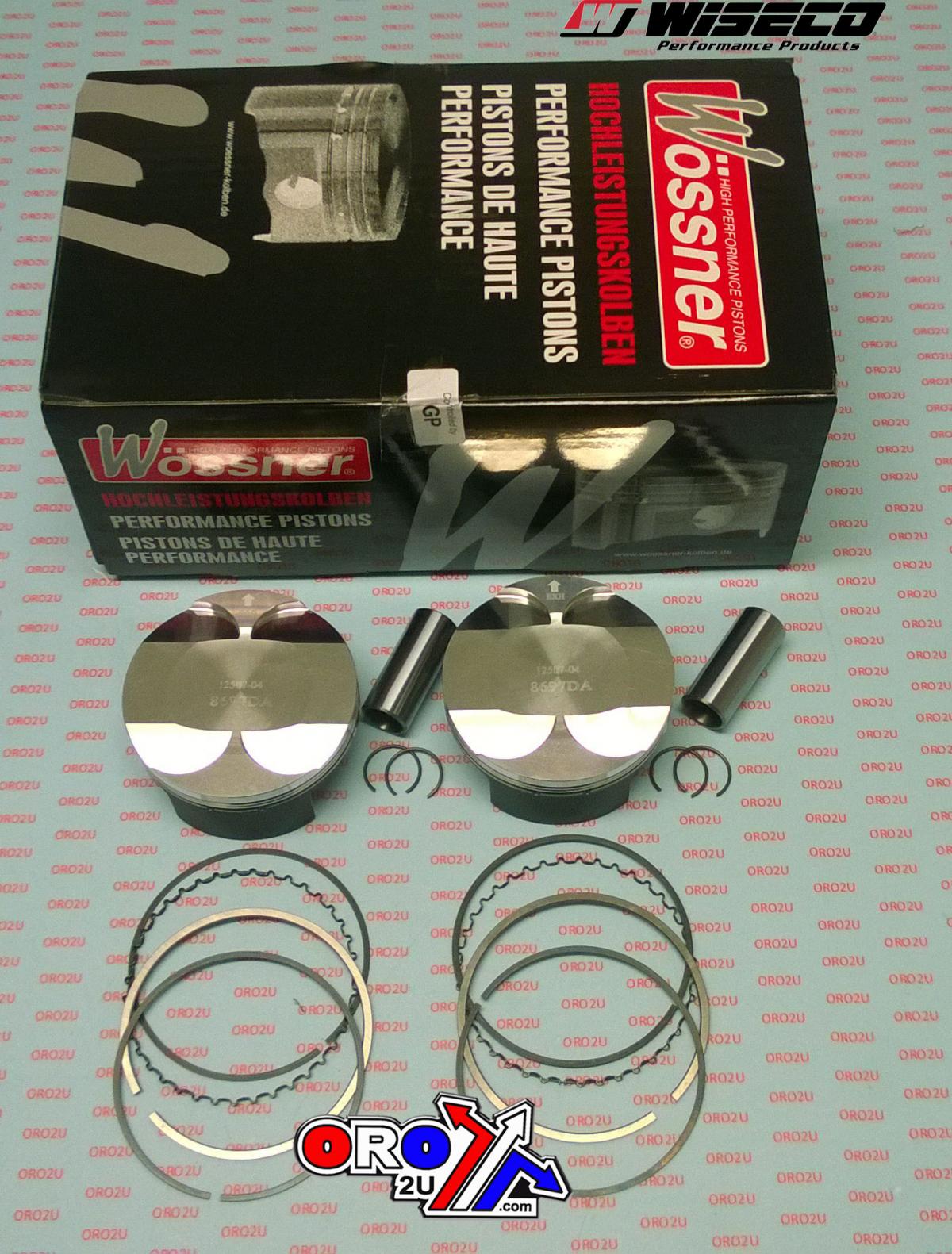

The Wossner K8697DA-2 piston kit is a standard-size forged piston set designed for Kawasaki EX650 Ninja models from 2006 to 2011. With an 83.00mm bore and 12.6:1 compression ratio, this 2-ring piston configuration offers high efficiency, structural integrity, and performance for modern four-stroke engines. Manufactured in Germany, the kit includes two pistons and all required components for installation.

Features

Forged high-performance pistons with skirt coating
Elliptical design ensures uniform load distribution and controlled heat expansion
Optimised combustion chamber heat transfer to cylinder walls
Two-ring piston configuration
Includes piston pins, clips, and rings

Specifications

Bore size: 83.00mm (Standard)
Measured bore: 82.95mm
Display displacement: 649 cm³
Stroke: 60.00mm
Clearance: 0.05mm
Compression ratio: 12.6:1
OEM compression ratio: 12.7:1
Dome volume: –9.30 cm³
Compression height: 22.70mm
Quantity: 2 pistons per kit
Made in Germany

Cross-Reference OEM Part Numbers

Part No. 56-W9873.83.000.WO
Clip: CW19
Piston Pin: WP028
Ring Set: 830XSY

Vehicle Fitments

Kawasaki EX650 Ninja 2006–2011

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	EX NINJA 650	2006-2011
