Name: Piston Kit 07-09 RMZ250 Hc 77, Forged Wossner 8672DB
Brand: Wossner
SKU: 56-W305.B.WO

Piston Kit 07-09 RMZ250 Hc 77, Forged Wossner 8672DB

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

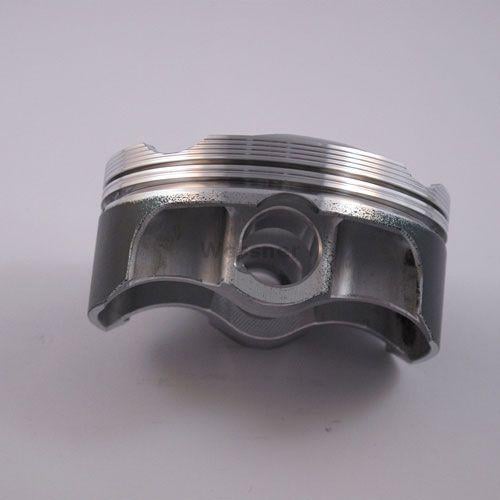

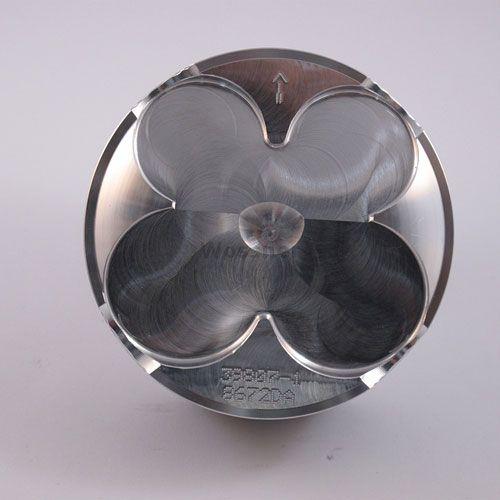

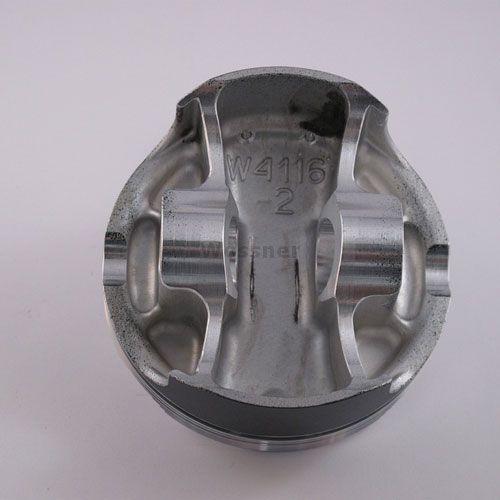

Wossner forged high-compression piston kit with a 77.01mm bore (76.97mm) for Suzuki RM-Z250 (2007-2009). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for improved efficiency
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 77.01mm (76.97mm)
Compression Ratio: 13.9:1
Part Number: 8672DB
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS-2
Rod Part Number: P4004
Displacement: 249 cm³
Stroke: 53.60mm
Clearance: 0.04mm
OEM Compression Ratio: 13.4:1
Dome Volume: -2.50 cm³
Compression Height: 19.60mm

Vehicle Fitments

Suzuki RM-Z250 (2007-2009)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2007-2009
