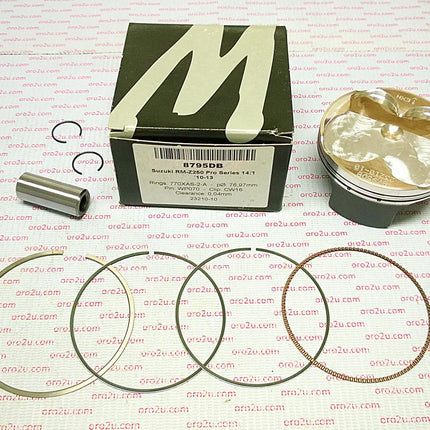

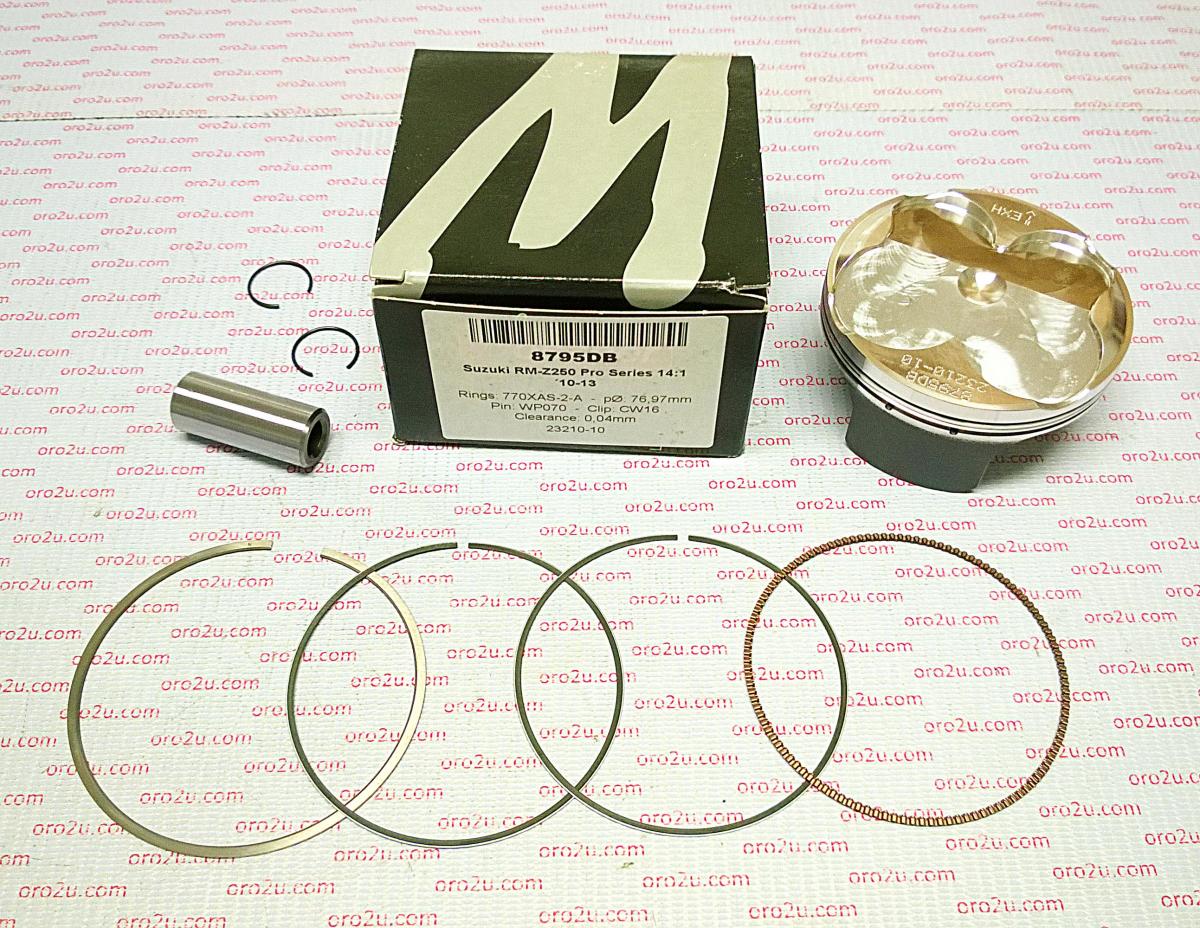

Name: Piston Kit 10-14 RMZ250 77 Hc, Comp 14:1 Wossner 8795DB
Brand: Wossner
SKU: 56-W260.B.WO

Piston Kit 10-14 RMZ250 77 Hc, Comp 14:1 Wossner 8795DB

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

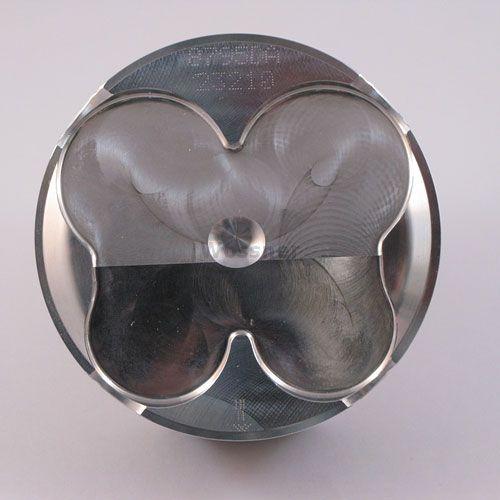

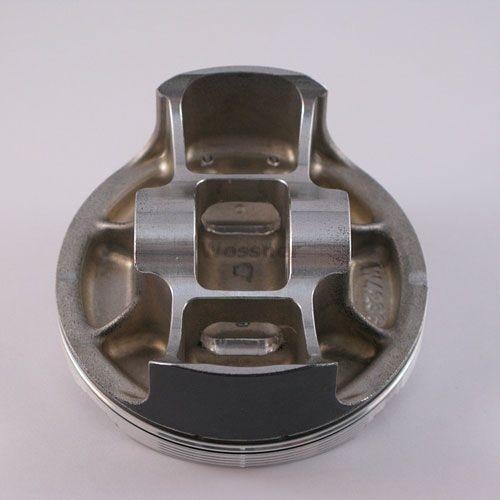

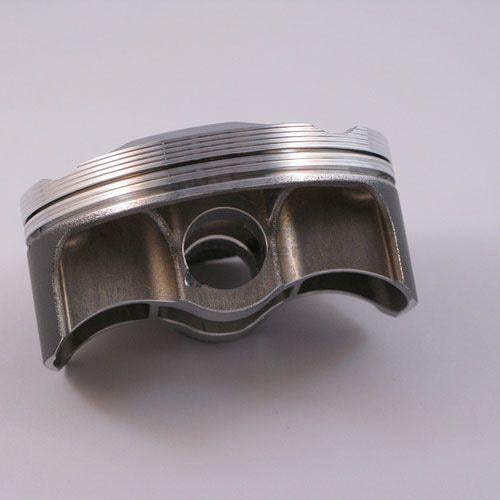

Wossner forged piston kit with a 77.01mm bore and 76.97mm diameter, designed for Suzuki RM-Z250 models (2010-2014). This high-compression piston is engineered for superior strength and optimized heat transfer. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

High-compression piston for increased performance
Forged construction for superior strength
Optimized heat transfer for efficient combustion
Elliptical design for uniform load distribution
Manufactured in Germany

Specifications

Bore: 77.01mm
Diameter: 76.97mm
Display (cm³): 249
Stroke (mm): 53.60
Clearance (mm): 0.06
Wossner Compression Ratio: 14.00:1
OEM Compression Ratio: 13.50:1
Dome Volume (cm³): -2.10
Compression Height (mm): 19.60

Cross-Reference OEM Part Numbers

Wossner Piston Kit (PN# 8795DB)
Lock P/N: CW16
Pin P/N: WP070
Ring Set P/N: 770XAS-2

Vehicle Fitments

Suzuki RM-Z250 (2010-2014)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2010-2020
SUZUKI	RM Z 250	2010-2014
SUZUKI	RM Z 250	2010-2017
