Name: Piston Kit 10-22 RMZ250 77mm B, Wossner Suzuki 8781DB
Brand: Wossner
SKU: 56-W951.B.WO

Piston Kit 10-22 RMZ250 77mm B, Wossner Suzuki 8781DB

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

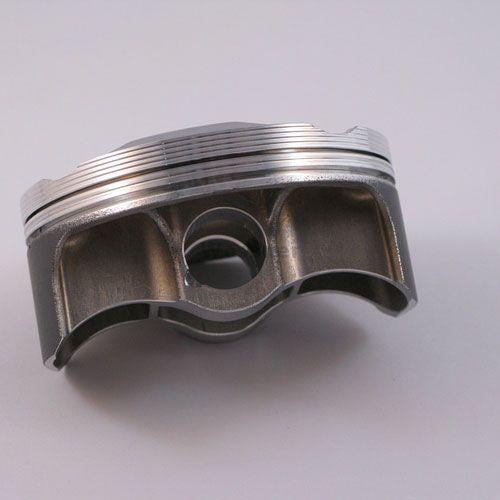

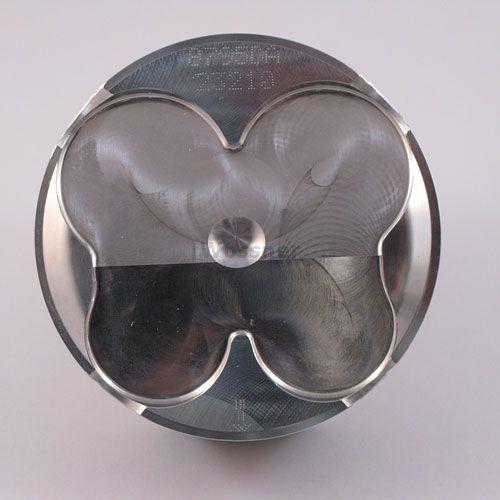

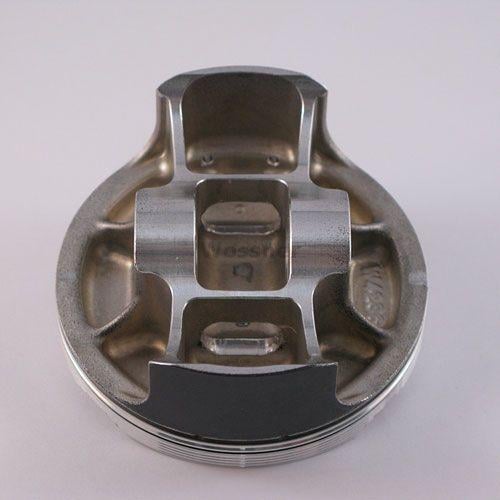

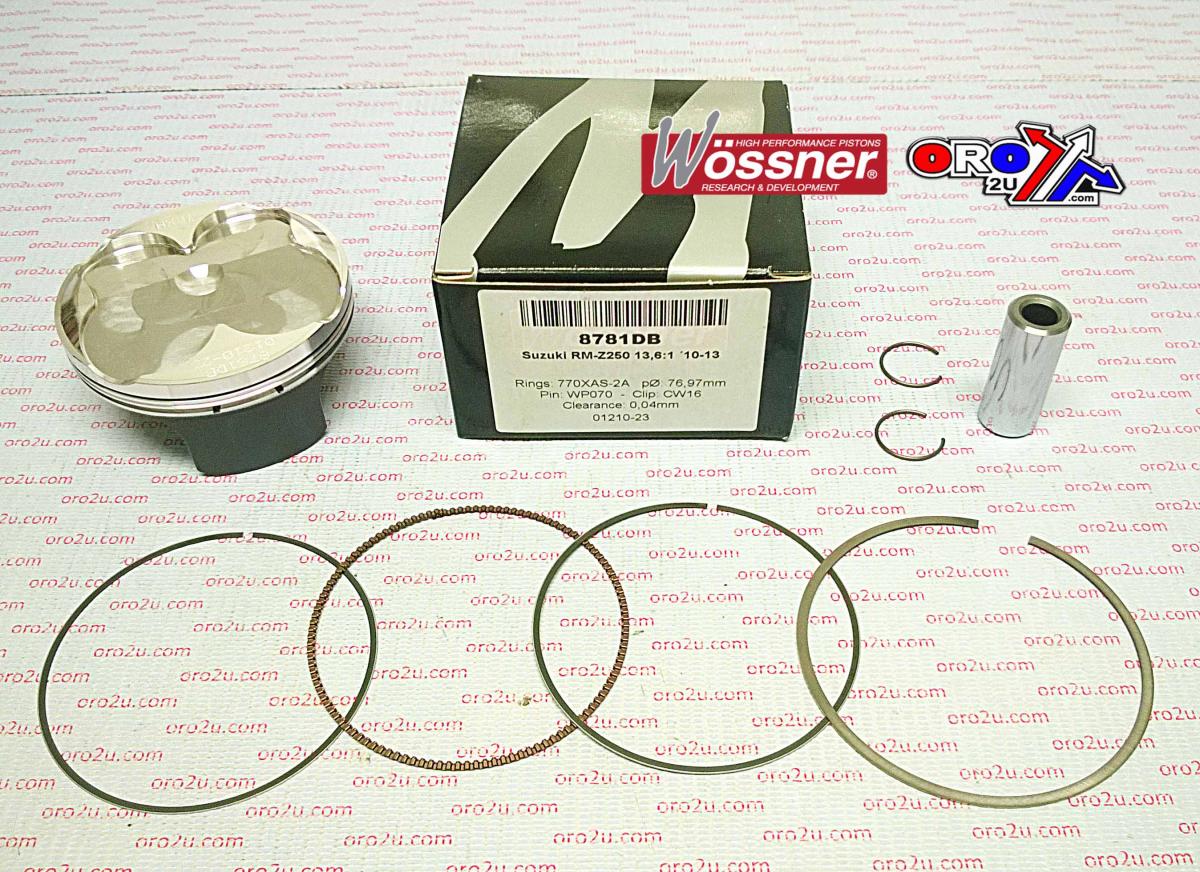

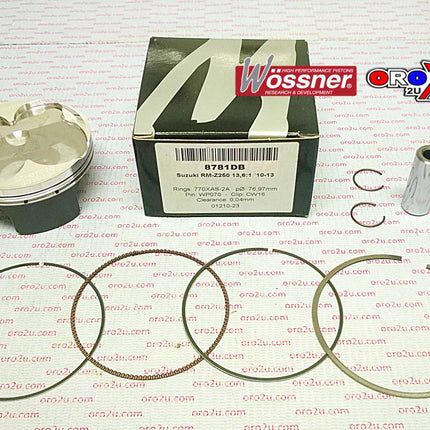

Piston kit 77.01mm BORE 76.97 Wossner 8781DB (+0.01MM)

SUZUKI
RX-Z250 2010 - 2022,

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany.

Part No. 56-W951.B.WO (radhouse.co.uk) Wossner Piston Suzuki RM-Z250 77.01 mm Bore (PN# 8781DB)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS-S
RM-Z250 2010-13

Display (cm3) 249
Hub stroke (mm) 53.80
Clearance (mm) 0.04
Wossner compression Ratio: 13.60:1
OEM Compression ratio: 13.50:1
Dome volume (cm3) -2.60
Compression height (mm) 19.60
Theorectical weight (G)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2010-2020
SUZUKI	RM Z 250	2010-2018
SUZUKI	RM Z 250	2010-2015
SUZUKI	RM Z 250	2010-2017
SUZUKI	RM Z 250	2010-2021
