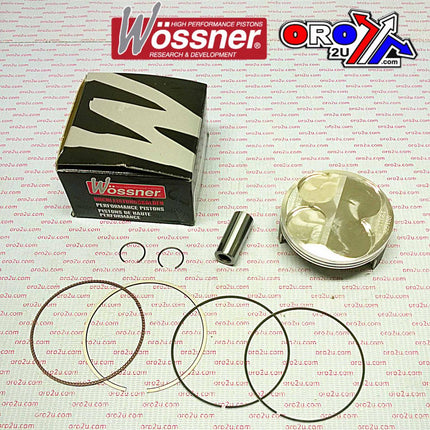

Name: Piston Kit 11-14 KX250F 77mm A, Wossner 8816DA Kawasaki Hc 13001-0125
Brand: Wossner
SKU: 56-W952.A.WO.HC
Price: 202.09 GBP
Availability: InStock

Piston Kit 11-14 KX250F 77mm A, Wossner 8816DA Kawasaki Hc 13001-0125

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

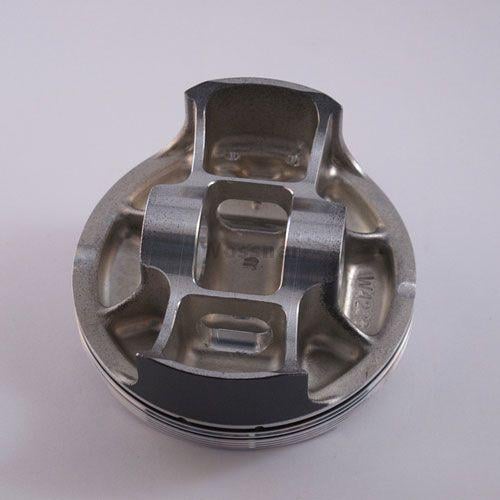

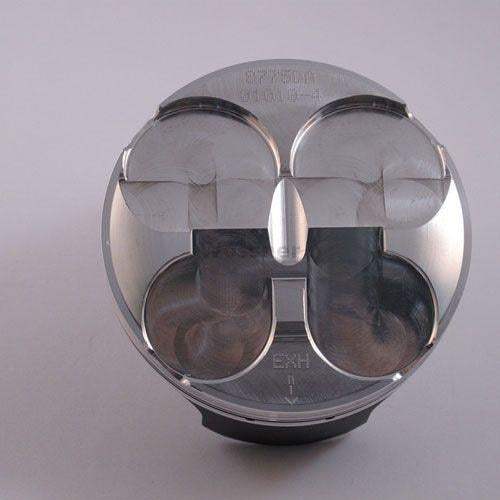

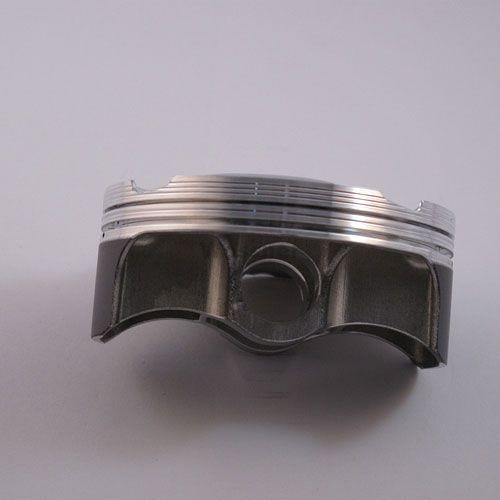

This Wossner forged high-compression piston kit features a 77mm bore size (76.96mm actual) and is designed for Kawasaki KX250F models from 2011 to 2014. The piston includes a hard Teflon skirt coating for improved fit and bore conformity. Manufactured in Germany with a two-ring configuration, it enhances combustion efficiency and strength under pressure. The elliptical design ensures even load distribution during thermal expansion.

Features

Forged high-compression piston with two-ring setup
Elliptical profile for balanced thrust load distribution
Engineered for optimal heat transfer to cylinder walls
Hard Teflon skirt coating for superior fit and bore adaptability
Manufactured in Germany

Specifications

Bore Size: 77mm (actual 76.96mm)
Displacement: 250 cm³
Stroke: 53.60 mm
Clearance: 0.04 mm
Compression Ratio (Wossner): 14.20:1
Compression Ratio (OEM): 13.50:1
Dome Volume: -1.70 cm³
Compression Height: 19.60 mm
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS

Cross-Reference OEM Part Numbers

13001-0125
40020M07700

Vehicle Fitments

2011 Kawasaki KX250F
2012 Kawasaki KX250F
2013 Kawasaki KX250F
2014 Kawasaki KX250F

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2013-2014
KAWASAKI	KX F 250	2011-2012
KAWASAKI	KX F 250	2011-2014
KAWASAKI	KX F 250	2010-2016
KAWASAKI	KX F 250	2010-2014

Piston Kit 11-14 KX250F 77mm A, Wossner 8816DA Kawasaki Hc 13001-0125

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged high-compression piston kit features a 77mm bore size (76.96mm actual) and is designed for Kawasaki KX250F models... Read more

7 in stock 1-2 business days

£202.09 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W952.A.WO.HC

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged high-compression piston kit features a 77mm bore size (76.96mm actual) and is designed for Kawasaki KX250F models from 2011 to 2014. The piston includes a hard Teflon skirt coating for improved fit and bore conformity. Manufactured in Germany with a two-ring configuration, it enhances combustion efficiency and strength under pressure. The elliptical design ensures even load distribution during thermal expansion.

Features

Forged high-compression piston with two-ring setup
Elliptical profile for balanced thrust load distribution
Engineered for optimal heat transfer to cylinder walls
Hard Teflon skirt coating for superior fit and bore adaptability
Manufactured in Germany

Specifications

Bore Size: 77mm (actual 76.96mm)
Displacement: 250 cm³
Stroke: 53.60 mm
Clearance: 0.04 mm
Compression Ratio (Wossner): 14.20:1
Compression Ratio (OEM): 13.50:1
Dome Volume: -1.70 cm³
Compression Height: 19.60 mm
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS

Cross-Reference OEM Part Numbers

13001-0125
40020M07700

Vehicle Fitments

2011 Kawasaki KX250F
2012 Kawasaki KX250F
2013 Kawasaki KX250F
2014 Kawasaki KX250F

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2013-2014
KAWASAKI	KX F 250	2011-2012
KAWASAKI	KX F 250	2011-2014
KAWASAKI	KX F 250	2010-2016
KAWASAKI	KX F 250	2010-2014
