Name: Piston Kit 11-14 KX250F 77mm C, 8814DC Wossner Kawasaki
Brand: Wossner
SKU: 56-W952.C.WO

Piston Kit 11-14 KX250F 77mm C, 8814DC Wossner Kawasaki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

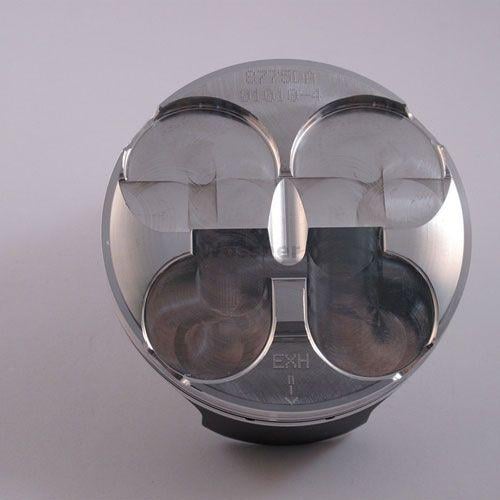

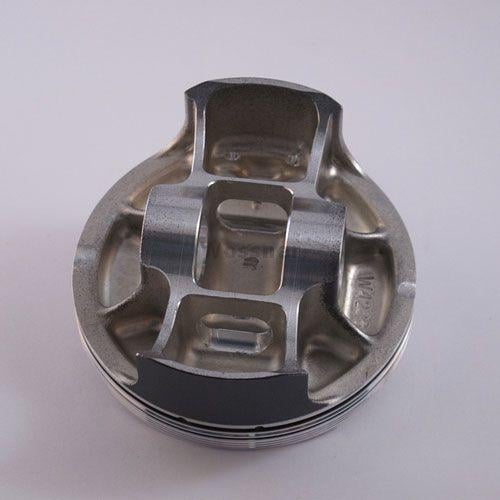

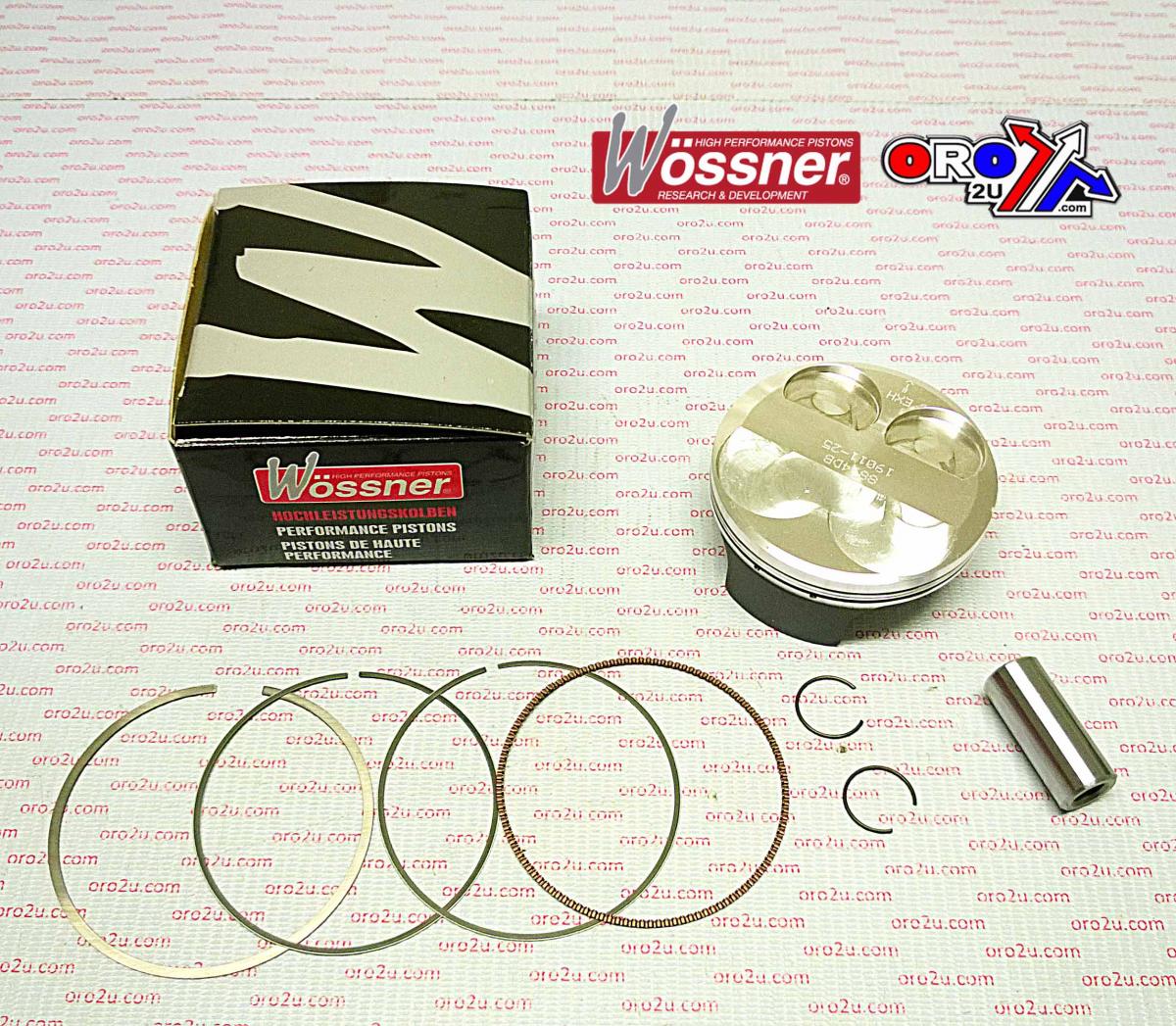

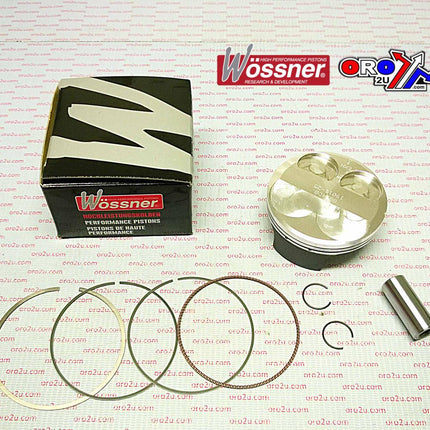

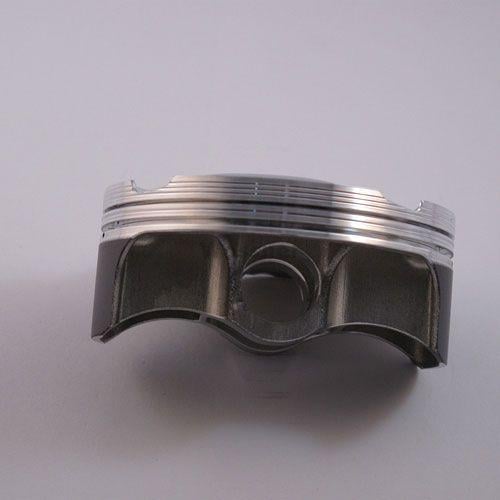

This Wossner forged piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification for Kawasaki KX250F models from 2011 to 2014. Built with a two-ring design and precision-manufactured in Germany, the piston provides reliable performance under thermal and mechanical stress. Its elliptical shape promotes balanced thrust force distribution and efficient heat transfer.

Features

Forged piston with two-ring configuration for enhanced strength and durability
Elliptical design ensures uniform bearing surface during heat expansion
Engineered for effective combustion heat dissipation
Manufactured in Germany

Specifications

Bore Size: 77.02mm (actual 76.98mm)
Displacement: 249 cm³
Stroke: 53.60 mm
Clearance: 0.04 mm
Compression Ratio (Wossner): OEM
Compression Ratio (OEM): 13.50:1
Dome Volume: -2.80 cm³
Compression Height: 19.60 mm
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS-2

Cross-Reference OEM Part Numbers

56-W952.C.WO

Vehicle Fitments

2011 Kawasaki KX250F
2012 Kawasaki KX250F
2013 Kawasaki KX250F
2014 Kawasaki KX250F

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2013-2014
KAWASAKI	KX F 250	2011-2012
KAWASAKI	KX F 250	2011-2014
KAWASAKI	KX F 250	2010-2016
KAWASAKI	KX F 250	2010-2014

Piston Kit 11-14 KX250F 77mm C, 8814DC Wossner Kawasaki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification for Kawasaki KX250F... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W952.C.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification for Kawasaki KX250F models from 2011 to 2014. Built with a two-ring design and precision-manufactured in Germany, the piston provides reliable performance under thermal and mechanical stress. Its elliptical shape promotes balanced thrust force distribution and efficient heat transfer.

Features

Forged piston with two-ring configuration for enhanced strength and durability
Elliptical design ensures uniform bearing surface during heat expansion
Engineered for effective combustion heat dissipation
Manufactured in Germany

Specifications

Bore Size: 77.02mm (actual 76.98mm)
Displacement: 249 cm³
Stroke: 53.60 mm
Clearance: 0.04 mm
Compression Ratio (Wossner): OEM
Compression Ratio (OEM): 13.50:1
Dome Volume: -2.80 cm³
Compression Height: 19.60 mm
Lock Part Number: CW16
Pin Part Number: WP070
Ring Set Part Number: 770XAS-2

Cross-Reference OEM Part Numbers

56-W952.C.WO

Vehicle Fitments

2011 Kawasaki KX250F
2012 Kawasaki KX250F
2013 Kawasaki KX250F
2014 Kawasaki KX250F

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2013-2014
KAWASAKI	KX F 250	2011-2012
KAWASAKI	KX F 250	2011-2014
KAWASAKI	KX F 250	2010-2016
KAWASAKI	KX F 250	2010-2014
