Name: Piston Kit 13-17 RMZ450 96 Hc, Wossner 8887DB Suzuki
Brand: Wossner
SKU: 56-W4956.B.WO

Piston Kit 13-17 RMZ450 96 Hc, Wossner 8887DB Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

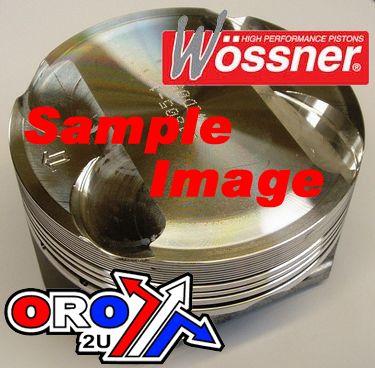

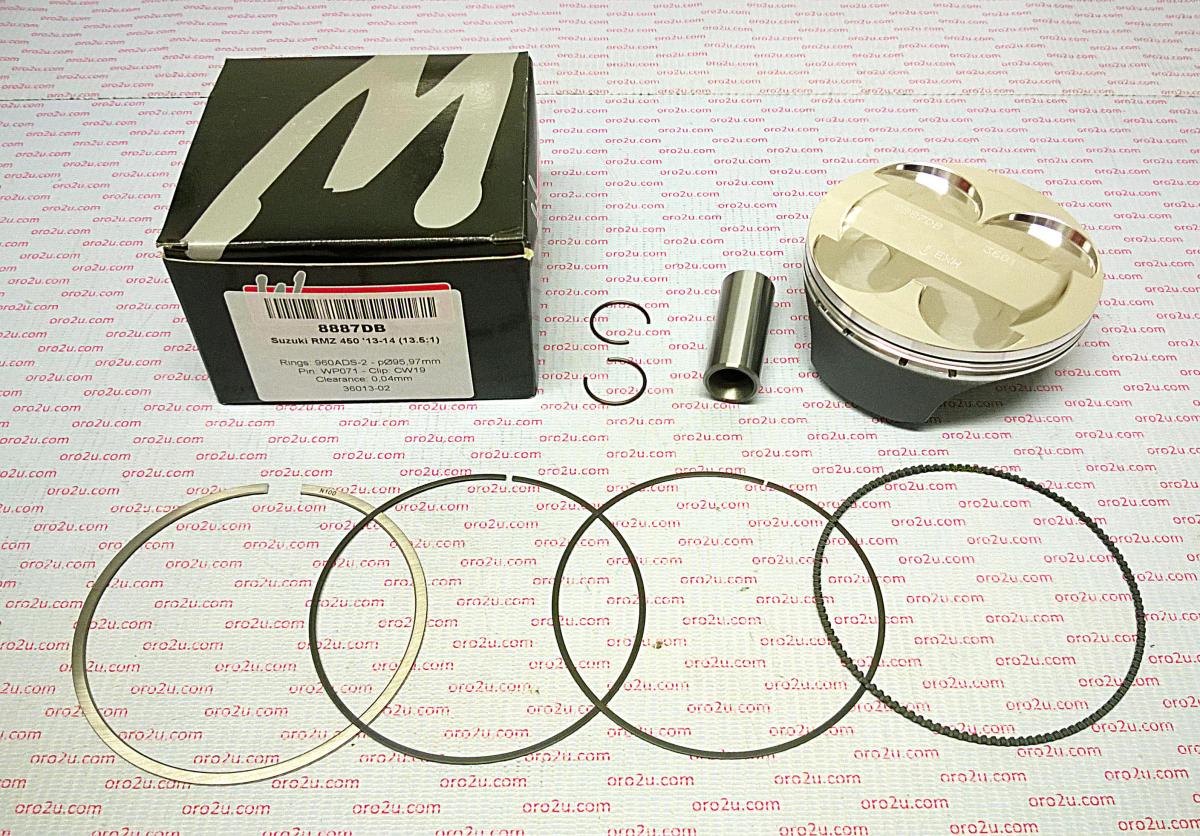

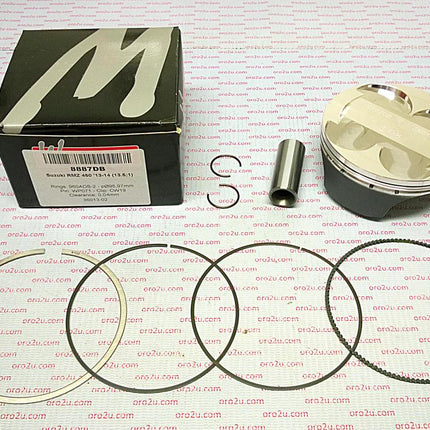

This Wossner forged piston kit, part number 8887DB, features a 96.01mm bore with an actual bore size of 95.97mm (+0.01mm oversize) and is designed for high-compression use in Suzuki RM-Z450 models from 2013 to 2017. Made in Germany, it provides increased compression over OEM standards and is engineered with an elliptical design for even load distribution and resistance to thermal expansion-related stress.

Features

Forged piston construction for strength and high-performance durability
High compression design for enhanced engine output
Elliptical shape promotes uniform expansion and minimizes localized pressure
Designed for effective heat transfer from combustion chamber to cylinder wall
Made in Germany
Direct OEM replacement
Easy to install; professional installation recommended if unsure

Specifications

Bore Size: 96.01mm
Actual Bore: 95.97mm
Displacement: 449cm³
Stroke: 62.10mm
Clearance: 0.04mm
Dome Volume: -0.40cm³
Wossner Compression Ratio: 13.50:1
OEM Compression Ratio: 12.50:1
Compression Height: 22.90mm

Cross-Reference OEM Part Numbers

CW19 (Lock)
WP071 (Pin)
960ADS-2 (Ring Set)
P4013 (Rod)
MB83C072C (Main Bearing Right)
MB830053-4 (Main Bearing Left)

Vehicle Fitments

RM-Z450 (2013–2017)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 450	2013-2014
SUZUKI	RM Z 450	2013-2017
SUZUKI	RM Z 450	2019-2020
