Name: Piston Kit 1990 KX125 56.00, Wossner 8106DB Kawasaki MX
Brand: Wossner
SKU: 56-W589+00B.WO

Piston Kit 1990 KX125 56.00, Wossner 8106DB Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

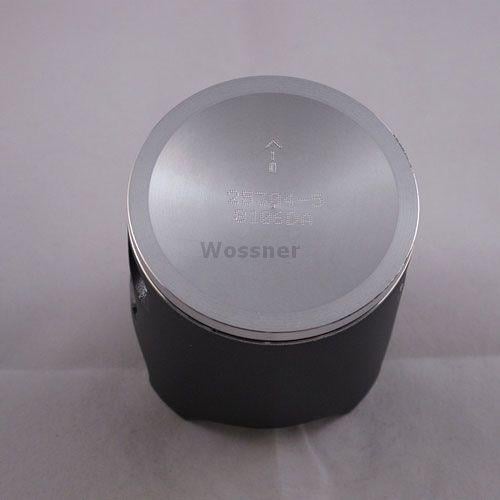

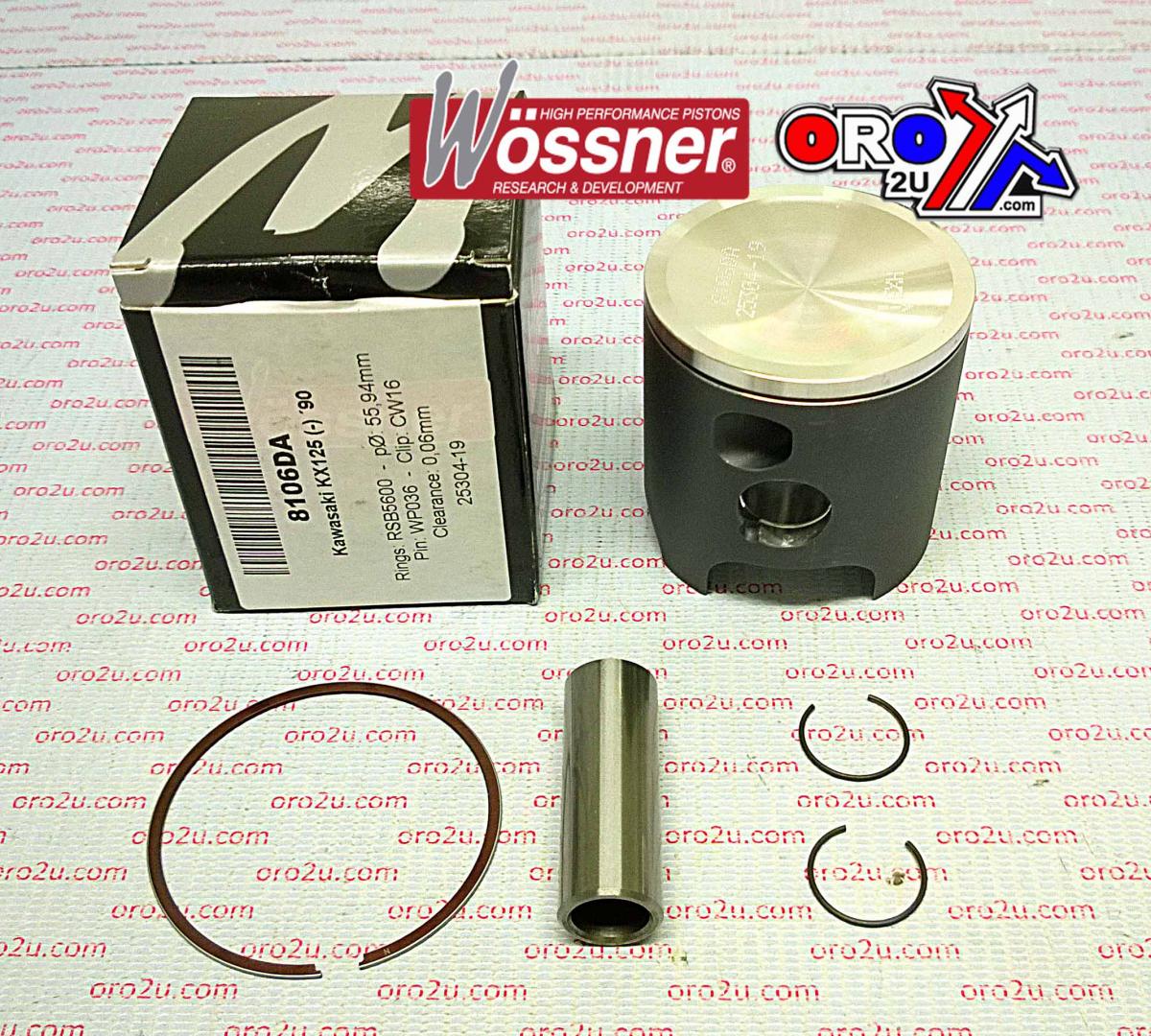

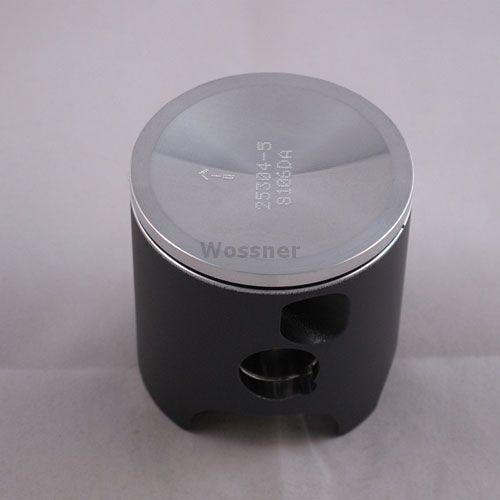

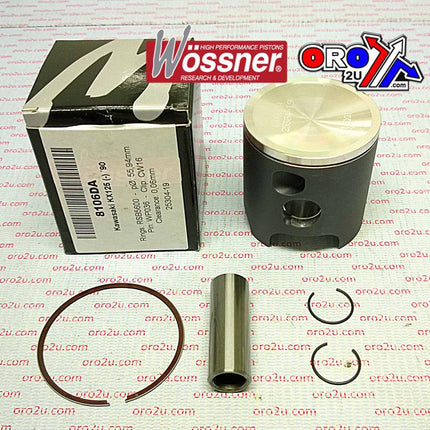

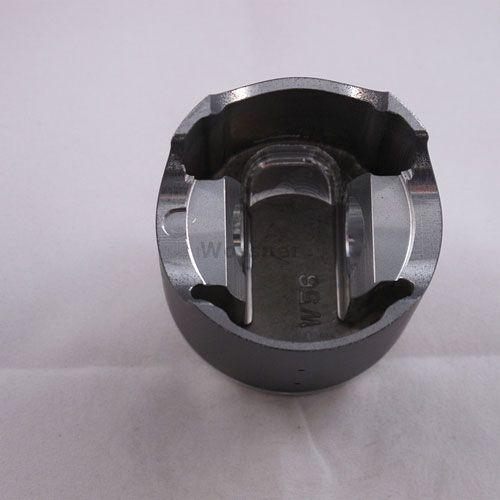

Wossner Forged Piston Kit 56.01mm Bore – Kawasaki KX125 1990 (8106DB +0.01)
This Wossner forged piston kit with a +0.01mm oversize bore (actual 55.95mm) is designed for the 1990 Kawasaki KX125. Crafted for high-performance 2-stroke engines, the forged piston provides excellent mechanical integrity and heat resistance. The elliptical piston design evenly distributes thrust loads during thermal expansion, minimising localised pressure and reducing the risk of piston failure. Manufactured in Germany to exacting standards.

Features

Forged aluminium construction for maximum strength and durability
Designed for optimal heat dissipation from the combustion chamber
Elliptical profile ensures uniform load distribution under expansion
Purpose-built for 2-stroke engine performance
Made in Germany

Specifications

Bore Size: 56.01mm (+0.01 oversize)
Actual Bore: 55.95mm
Compression Height: 29.50mm
Clearance: 0.06mm
Stroke: 50.60mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8106DB
Ring Set: RSB5600
Lock: CW16
Pin: WP036
Rod: P2033
Internal Reference: 56-W589+00B.WO

Vehicle Fitments

1990 Kawasaki KX125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1991
KAWASAKI	KX 125	1990

Piston Kit 1990 KX125 56.00, Wossner 8106DB Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 56.01mm Bore – Kawasaki KX125 1990 (8106DB +0.01) This Wossner forged piston kit with a +0.01mm... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W589+00B.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 56.01mm Bore – Kawasaki KX125 1990 (8106DB +0.01)
This Wossner forged piston kit with a +0.01mm oversize bore (actual 55.95mm) is designed for the 1990 Kawasaki KX125. Crafted for high-performance 2-stroke engines, the forged piston provides excellent mechanical integrity and heat resistance. The elliptical piston design evenly distributes thrust loads during thermal expansion, minimising localised pressure and reducing the risk of piston failure. Manufactured in Germany to exacting standards.

Features

Forged aluminium construction for maximum strength and durability
Designed for optimal heat dissipation from the combustion chamber
Elliptical profile ensures uniform load distribution under expansion
Purpose-built for 2-stroke engine performance
Made in Germany

Specifications

Bore Size: 56.01mm (+0.01 oversize)
Actual Bore: 55.95mm
Compression Height: 29.50mm
Clearance: 0.06mm
Stroke: 50.60mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8106DB
Ring Set: RSB5600
Lock: CW16
Pin: WP036
Rod: P2033
Internal Reference: 56-W589+00B.WO

Vehicle Fitments

1990 Kawasaki KX125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1991
KAWASAKI	KX 125	1990
