Name: Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX
Brand: Wossner
SKU: 56-W589+050.WO

Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

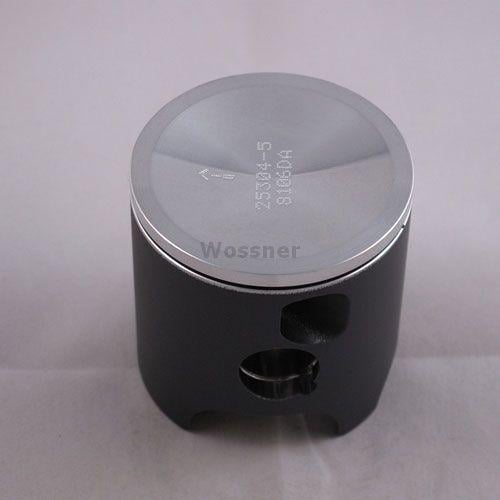

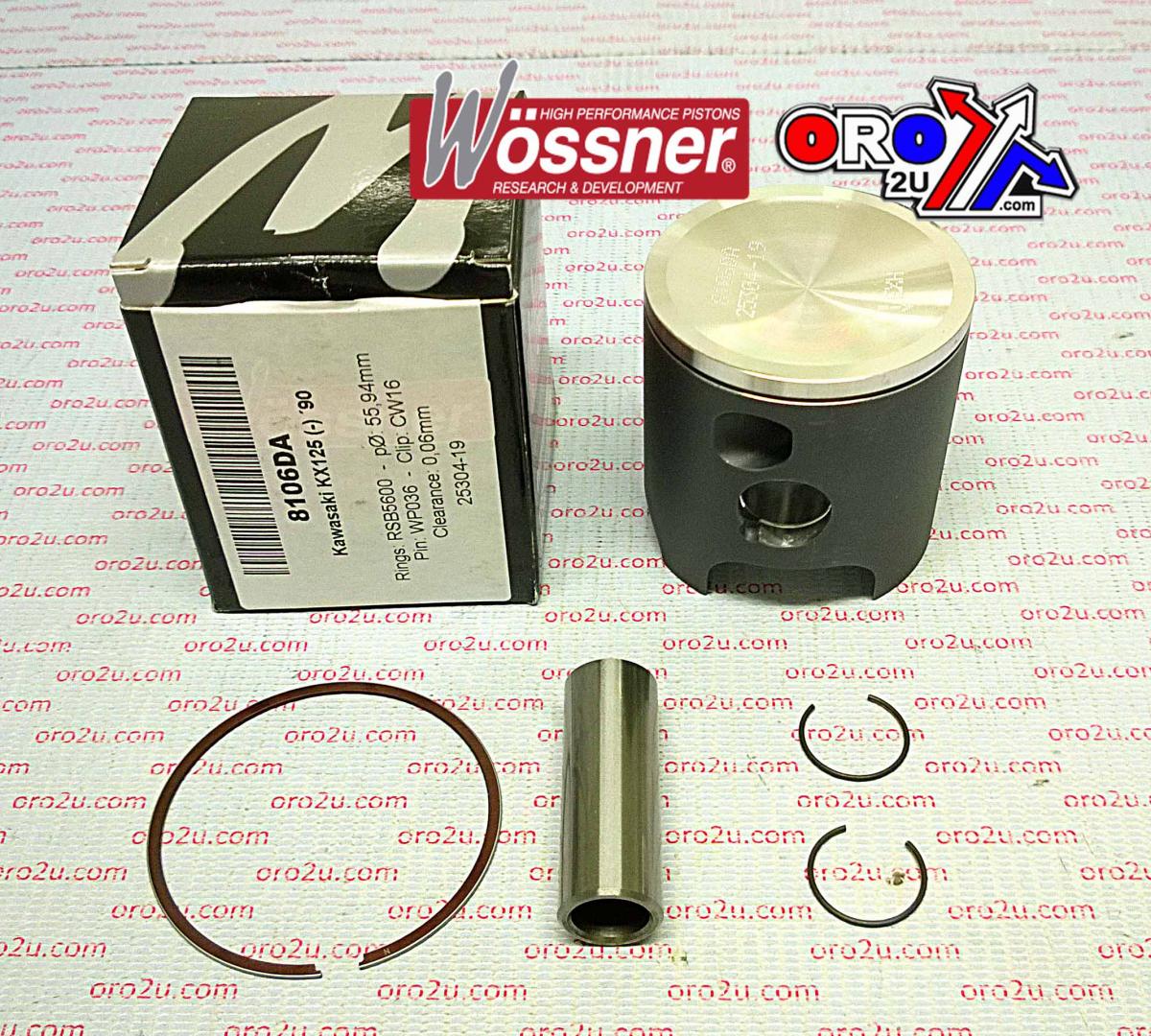

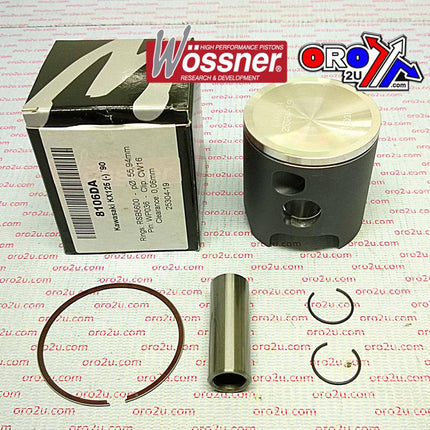

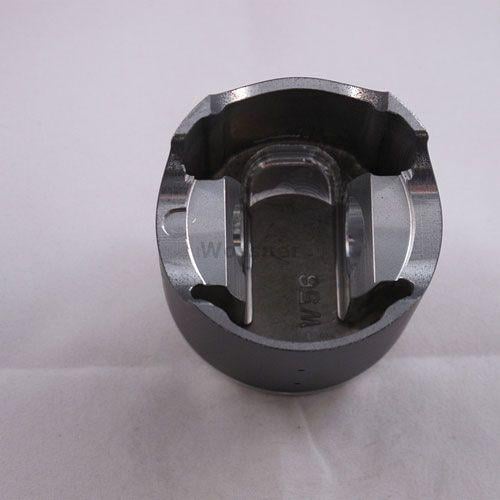

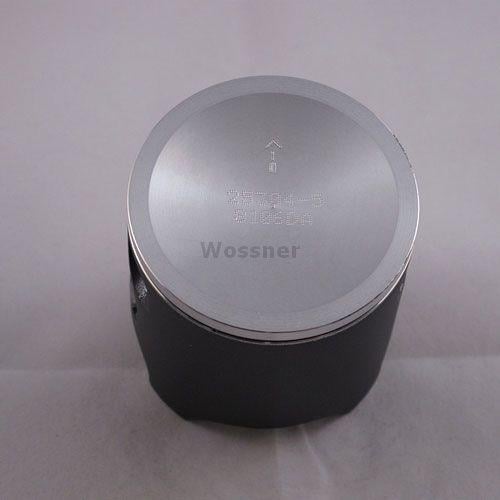

Wossner Forged Piston Kit 56.50mm Bore – Kawasaki KX125 1990 (8106D050 +0.50)
This Wossner forged piston kit is designed for the 1990 Kawasaki KX125, featuring a +0.50mm oversize bore (actual 56.44mm). Specifically engineered for high-performance 2-stroke engines, the forged construction ensures durability, strength, and superior heat dissipation. The piston’s elliptical shape promotes even thrust load distribution during thermal expansion, reducing the risk of localised stress and piston failure. Precision-made in Germany.

Features

Forged piston construction for improved mechanical strength and wear resistance
Optimised design for effective combustion heat transfer to the cylinder walls
Elliptical profile reduces localised pressure and improves load distribution
Built for 2-stroke engine applications
Manufactured in Germany

Specifications

Bore Size: 56.50mm (+0.50 oversize)
Actual Bore: 56.44mm
Compression Height: 29.50mm
Clearance: 0.06mm
Stroke: 50.60mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8106D050
Ring Set: RSB5650
Lock: CW16
Pin: WP036
Rod: P2033
Internal Reference: 56-W589+00050.WO

Vehicle Fitments

1990 Kawasaki KX125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1991
KAWASAKI	KX 125	1990

Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 56.50mm Bore – Kawasaki KX125 1990 (8106D050 +0.50) This Wossner forged piston kit is designed for... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W589+050.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 56.50mm Bore – Kawasaki KX125 1990 (8106D050 +0.50)
This Wossner forged piston kit is designed for the 1990 Kawasaki KX125, featuring a +0.50mm oversize bore (actual 56.44mm). Specifically engineered for high-performance 2-stroke engines, the forged construction ensures durability, strength, and superior heat dissipation. The piston’s elliptical shape promotes even thrust load distribution during thermal expansion, reducing the risk of localised stress and piston failure. Precision-made in Germany.

Features

Forged piston construction for improved mechanical strength and wear resistance
Optimised design for effective combustion heat transfer to the cylinder walls
Elliptical profile reduces localised pressure and improves load distribution
Built for 2-stroke engine applications
Manufactured in Germany

Specifications

Bore Size: 56.50mm (+0.50 oversize)
Actual Bore: 56.44mm
Compression Height: 29.50mm
Clearance: 0.06mm
Stroke: 50.60mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8106D050
Ring Set: RSB5650
Lock: CW16
Pin: WP036
Rod: P2033
Internal Reference: 56-W589+00050.WO

Vehicle Fitments

1990 Kawasaki KX125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1991
KAWASAKI	KX 125	1990
