Piston KIT-2 BMW R1200GS,S,ST, Wossner K8710DA-2, 101mm

Description

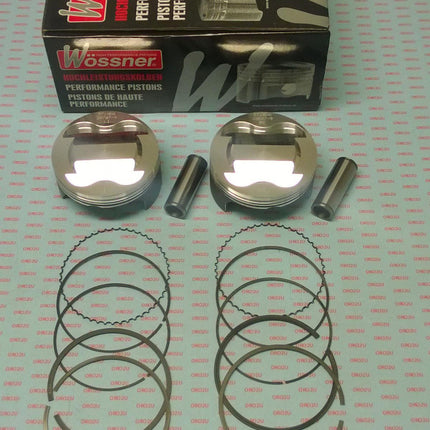

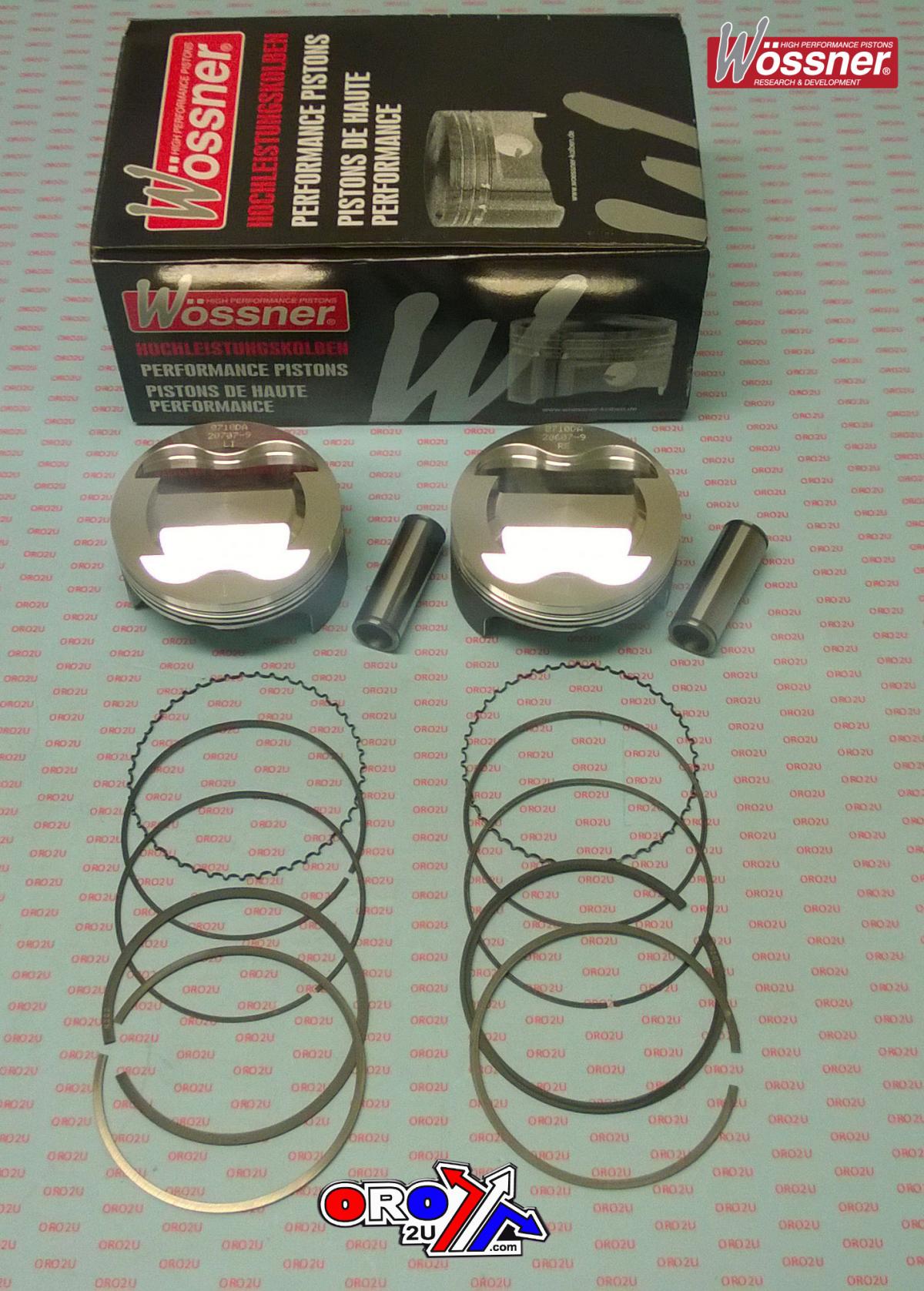

This Wossner piston kit set includes two forged pistons with a standard 101.00mm bore and a measured diameter of 100.96mm. Specifically designed for BMW R1200 series models from 2006 to 2009, the Pro Series pistons are engineered for high-performance applications and long rod configurations, offering enhanced compression and thermal efficiency.

Features

  • Forged piston construction for superior strength and endurance

  • Engineered for optimal combustion chamber heat transfer to cylinder walls

  • Elliptical profile ensures a consistent bearing surface under thermal expansion

  • Distributes thrust loads evenly to reduce stress and prevent piston collapse

  • Manufactured in Germany

  • Designed for long rod configuration

Specifications

  • Bore: 101.00mm

  • Diameter: 100.96mm

  • Engine Displacement: 1170 cm³

  • Stroke: 73.00 mm

  • Clearance: 0.04 mm

  • Compression Ratio (Wossner): 12.70:1

  • Compression Ratio (OEM): 12.00:1

  • Dome Volume: +4.40 cm³

  • Compression Height: 27.90 mm

  • Kit Includes: 2 pistons, pins, rings, and clips

  • Clips P/N: C22X1.6

  • Pin P/N: WP009

  • Ring Set P/N: 1010XSY

Cross-Reference OEM Part Numbers

  • Part No. 56-W9935.000.WO

  • Wossner Piston K8710DA-2

Vehicle Fitments

  • BMW R1200GS 2006–2009

  • BMW R1200S 2006–2009

  • BMW R1200ST 2006–2009

  • BMW R1200RT 2006–2009

  • BMW R1200R 2006–2009

Piston KIT-2 BMW R1200GS,S,ST, Wossner K8710DA-2, 101mm

Product form

This Wossner piston kit set includes two forged pistons with a standard 101.00mm bore and a measured diameter of 100.96mm.... Read more

Out of stock

£459.35 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9935.000.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner piston kit set includes two forged pistons with a standard 101.00mm bore and a measured diameter of 100.96mm. Specifically designed for BMW R1200 series models from 2006 to 2009, the Pro Series pistons are engineered for high-performance applications and long rod configurations, offering enhanced compression and thermal efficiency.

    Features

    • Forged piston construction for superior strength and endurance

    • Engineered for optimal combustion chamber heat transfer to cylinder walls

    • Elliptical profile ensures a consistent bearing surface under thermal expansion

    • Distributes thrust loads evenly to reduce stress and prevent piston collapse

    • Manufactured in Germany

    • Designed for long rod configuration

    Specifications

    • Bore: 101.00mm

    • Diameter: 100.96mm

    • Engine Displacement: 1170 cm³

    • Stroke: 73.00 mm

    • Clearance: 0.04 mm

    • Compression Ratio (Wossner): 12.70:1

    • Compression Ratio (OEM): 12.00:1

    • Dome Volume: +4.40 cm³

    • Compression Height: 27.90 mm

    • Kit Includes: 2 pistons, pins, rings, and clips

    • Clips P/N: C22X1.6

    • Pin P/N: WP009

    • Ring Set P/N: 1010XSY

    Cross-Reference OEM Part Numbers

    • Part No. 56-W9935.000.WO

    • Wossner Piston K8710DA-2

    Vehicle Fitments

    • BMW R1200GS 2006–2009

    • BMW R1200S 2006–2009

    • BMW R1200ST 2006–2009

    • BMW R1200RT 2006–2009

    • BMW R1200R 2006–2009
