Name: Piston Kit 2010 KX250F 77mm B, Wossner 8778DB Kawasaki Hc, Comp 13.9:1
Brand: Wossner
SKU: 56-W953.B.WO.HC

Piston Kit 2010 KX250F 77mm B, Wossner 8778DB Kawasaki Hc, Comp 13.9:1

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

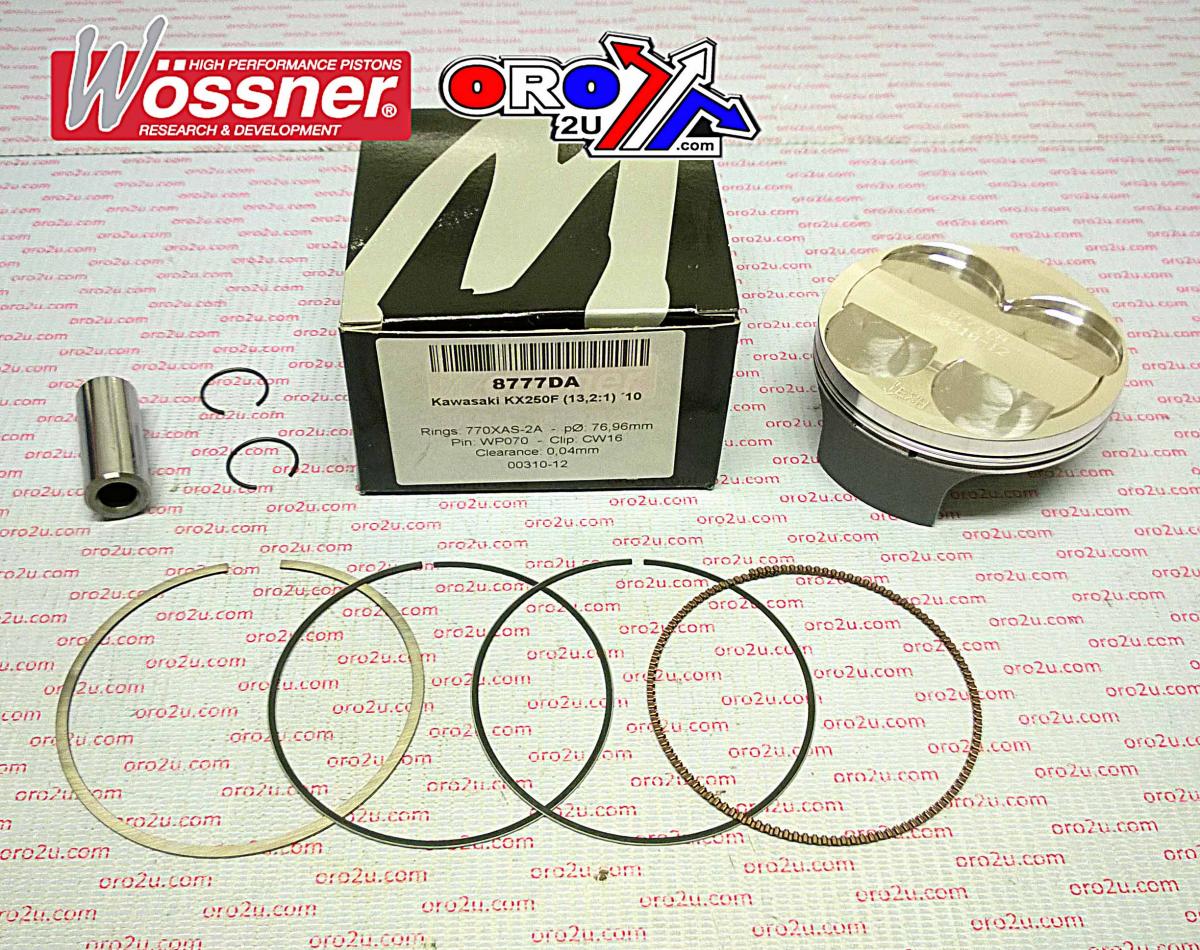

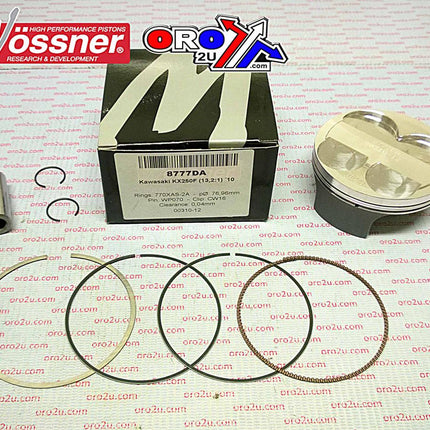

Piston kit 77.01mm BORE 76.97 Wossner 8778DB (+0.01mm)

KAWASAKI
kx250F 2010, (High compression)

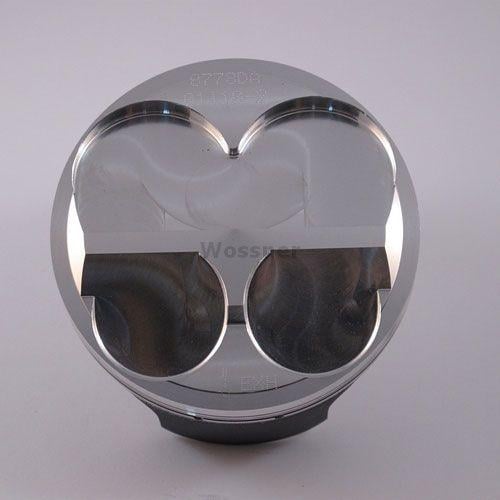

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany.

Part No. 56-W953.B.WO.HC (radhouse.co.uk) Wossner Piston Kawasaki KX250F 77.01 mm Bore (PN# 8778DB)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS

Display (cm3) 250
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: 13.90:1
OEM Compression ratio: 13.20:1
Dome volume (cm3) -1.40
Compression height (mm) 19.60
Theorectical weight (G)

Cross reference numbers. oem 13001-0115, wiseco 40009M, Vertex 23566, Prox01.4340

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2010

Piston Kit 2010 KX250F 77mm B, Wossner 8778DB Kawasaki Hc, Comp 13.9:1

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Piston kit 77.01mm BORE 76.97 Wossner 8778DB (+0.01mm) KAWASAKIkx250F 2010, (High compression) Wossner forged pistons are superior in strength and... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W953.B.WO.HC

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Piston kit 77.01mm BORE 76.97 Wossner 8778DB (+0.01mm)

KAWASAKI
kx250F 2010, (High compression)

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany.

Part No. 56-W953.B.WO.HC (radhouse.co.uk) Wossner Piston Kawasaki KX250F 77.01 mm Bore (PN# 8778DB)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS

Display (cm3) 250
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: 13.90:1
OEM Compression ratio: 13.20:1
Dome volume (cm3) -1.40
Compression height (mm) 19.60
Theorectical weight (G)

Cross reference numbers. oem 13001-0115, wiseco 40009M, Vertex 23566, Prox01.4340

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX F 250	2010
