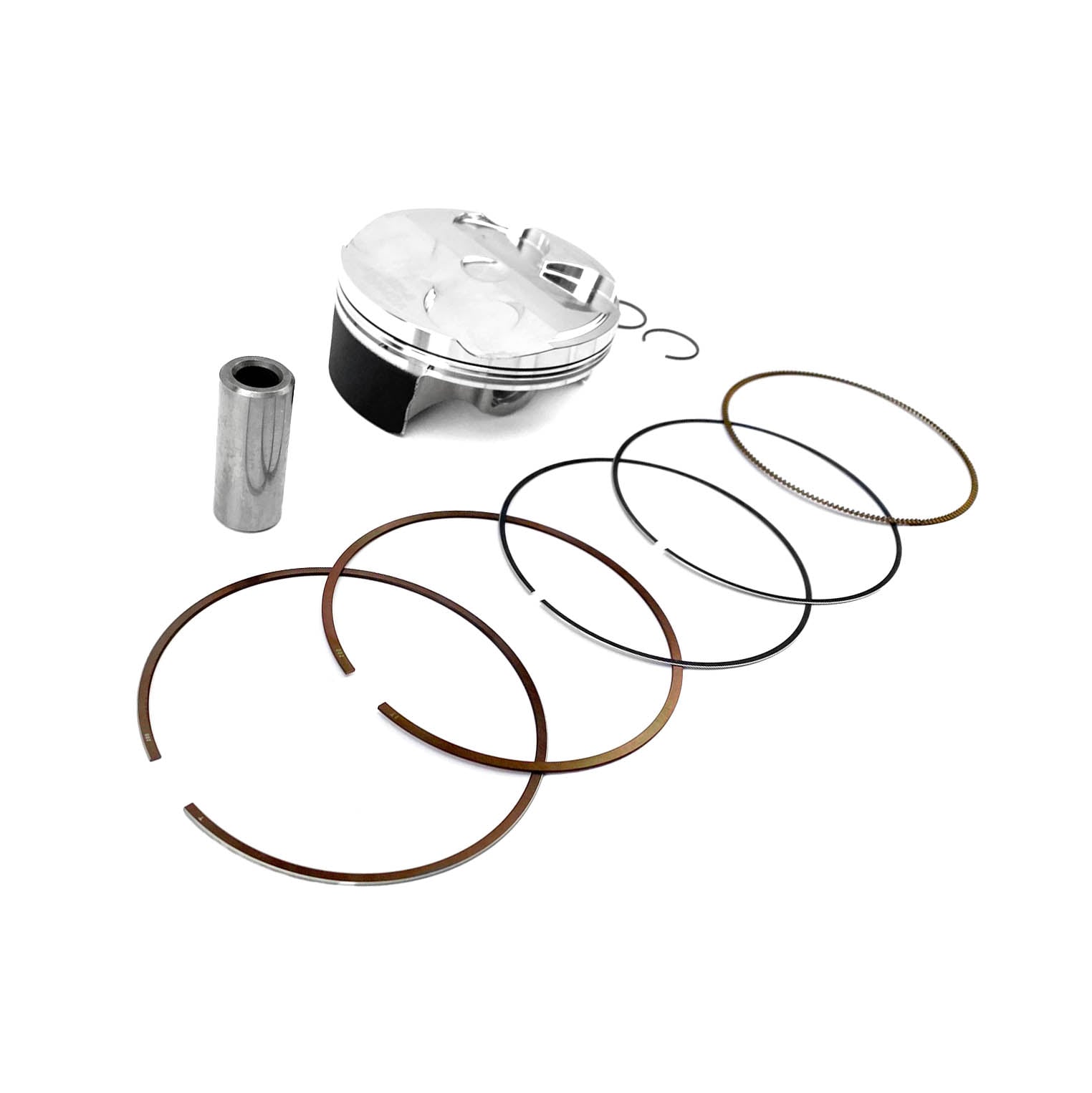

Piston Kit 2021-22 KX250F 77.96mm, High Compression Wossner 8994DA, Kawasaki

Description

High Compression Piston kit 78mm Bore 77.96 Wossner 8994DA (STD)

KAWASAKI
KX 250F 2021 - 2022
KX 250 XC 2021 - 2022

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W8820.A.WO.HC  (radhouse.co.uk)

WOSSNER 8994DA PISTON KIT 78.00mm
A GRADE PISTON KIT 77.96mm
COMPRESSION RATIO 14.5:1
COMPRESSION HEIGHT 20.18mm
STROKE 52.20

Cross reference numbers
RING SET. RIK78.00
CLIPS. CW16
PIN. WP070-SP

Piston Kit 2021-22 KX250F 77.96mm, High Compression Wossner 8994DA, Kawasaki

Product form

High Compression Piston kit 78mm Bore 77.96 Wossner 8994DA (STD) KAWASAKI KX 250F 2021 - 2022 KX 250 XC 2021 - 2022... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W8820.A.WO.HC
    Barcode: 0120000004287

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    High Compression Piston kit 78mm Bore 77.96 Wossner 8994DA (STD)

    KAWASAKI
    KX 250F 2021 - 2022
    KX 250 XC 2021 - 2022

    • Wossner forged pistons are superior in strength and design.
    • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
    • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
    • Made in Germany.

    Part No. 56-W8820.A.WO.HC  (radhouse.co.uk)

    WOSSNER 8994DA PISTON KIT 78.00mm
    A GRADE PISTON KIT 77.96mm
    COMPRESSION RATIO 14.5:1
    COMPRESSION HEIGHT 20.18mm
    STROKE 52.20

    Cross reference numbers
    RING SET. RIK78.00
    CLIPS. CW16
    PIN. WP070-SP
