Piston Kit 2023 Yamaha Yzf 450, Wossner 4085DC

Description

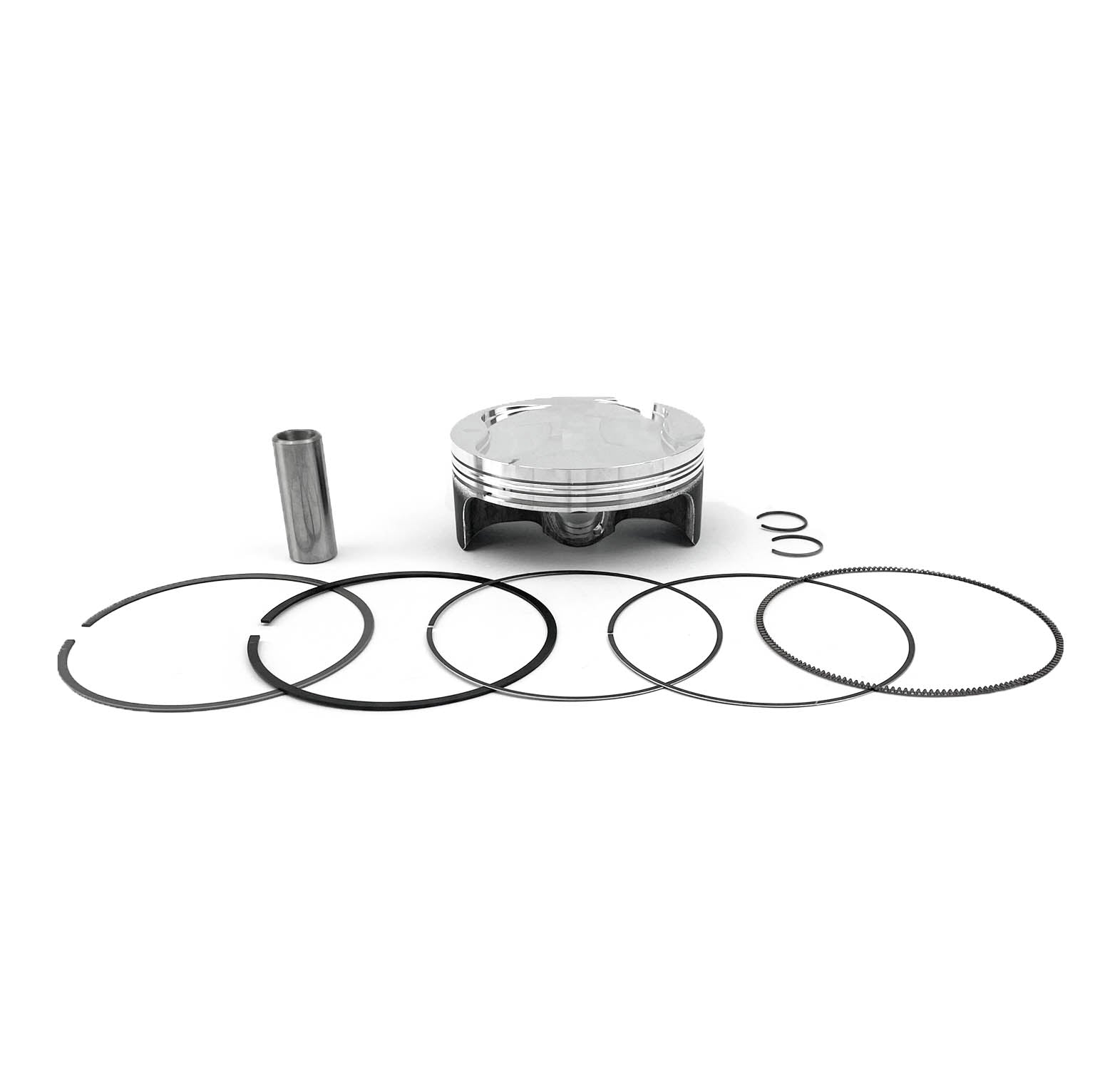

PISTON KIT 97mm BORE 96.98mm WOSSNER 4085DC (STD)

YAMAHA
YZF 450 2023


  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W4085.C.WO (radhouse.co.uk)
WOSSNER  4085DC PISTON KIT, BORE 97.00mm
C GRADE PISTON 96.98mm
CLEARANCE 0.04mm
STROKE 60.80mm
COMPRESSION HEIGHT 24mm
COMPRESSION RATIO 13:1
THEORETICAL WEIGHT 263.50g
RINGS RIK97.00
PISTON PIN WP072-SP
PISTON CLIPS CW18


Piston Kit 2023 Yamaha Yzf 450, Wossner 4085DC

Product form

PISTON KIT 97mm BORE 96.98mm WOSSNER 4085DC (STD) YAMAHA   YZF 450 2023   Wossner forged pistons are superior in strength and design. Engineered... Read more

1 in stock 1-2 business days

£201.29 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W4085.C.WO
    Barcode: 0120000004164

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    PISTON KIT 97mm BORE 96.98mm WOSSNER 4085DC (STD)

    YAMAHA
    YZF 450 2023


    • Wossner forged pistons are superior in strength and design.
    • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
    • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
    • Made in Germany.

    Part No. 56-W4085.C.WO (radhouse.co.uk)
    WOSSNER  4085DC PISTON KIT, BORE 97.00mm
    C GRADE PISTON 96.98mm
    CLEARANCE 0.04mm
    STROKE 60.80mm
    COMPRESSION HEIGHT 24mm
    COMPRESSION RATIO 13:1
    THEORETICAL WEIGHT 263.50g
    RINGS RIK97.00
    PISTON PIN WP072-SP
    PISTON CLIPS CW18
