Piston Kit 2023 Yamaha Yzf 450, Wossner 4086DC Pro Series

Description

PRO SERIES PISTON KIT 97mm BORE 96.98mm WOSSNER 4086DC (STD)

YAMAHA
YZF 450 2023


  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W4086.C.WO (radhouse.co.uk)

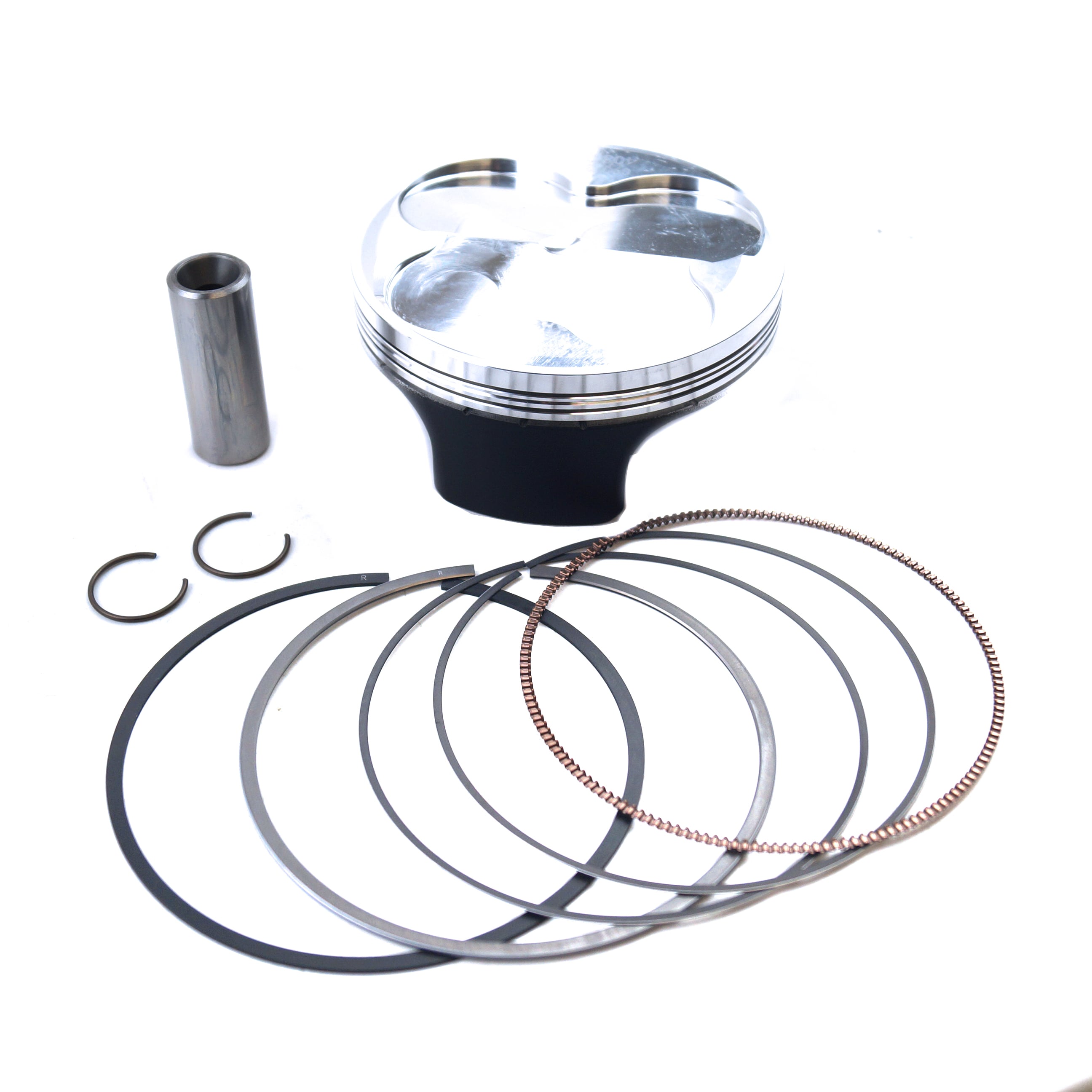

WOSSNER  4086DC PISTON KIT, BORE 97.00mm
A GRADE PISTON 96.98mm
CLEARANCE 0.04mm
STROKE 60.80mm
COMPRESSION HEIGHT 24mm
COMPRESSION RATIO 13.50:1
THEORETICAL WEIGHT 267.50g
RINGS RIK97.00
PISTON PIN WP072-SP
PISTON CLIPS CW18
