Name: Piston KIT/3 750 Triple 71.00, Wossner K8248DA-3 1972-75
Brand: Wossner
SKU: 56-W9868.000.WO

Piston KIT/3 750 Triple 71.00, Wossner K8248DA-3 1972-75

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

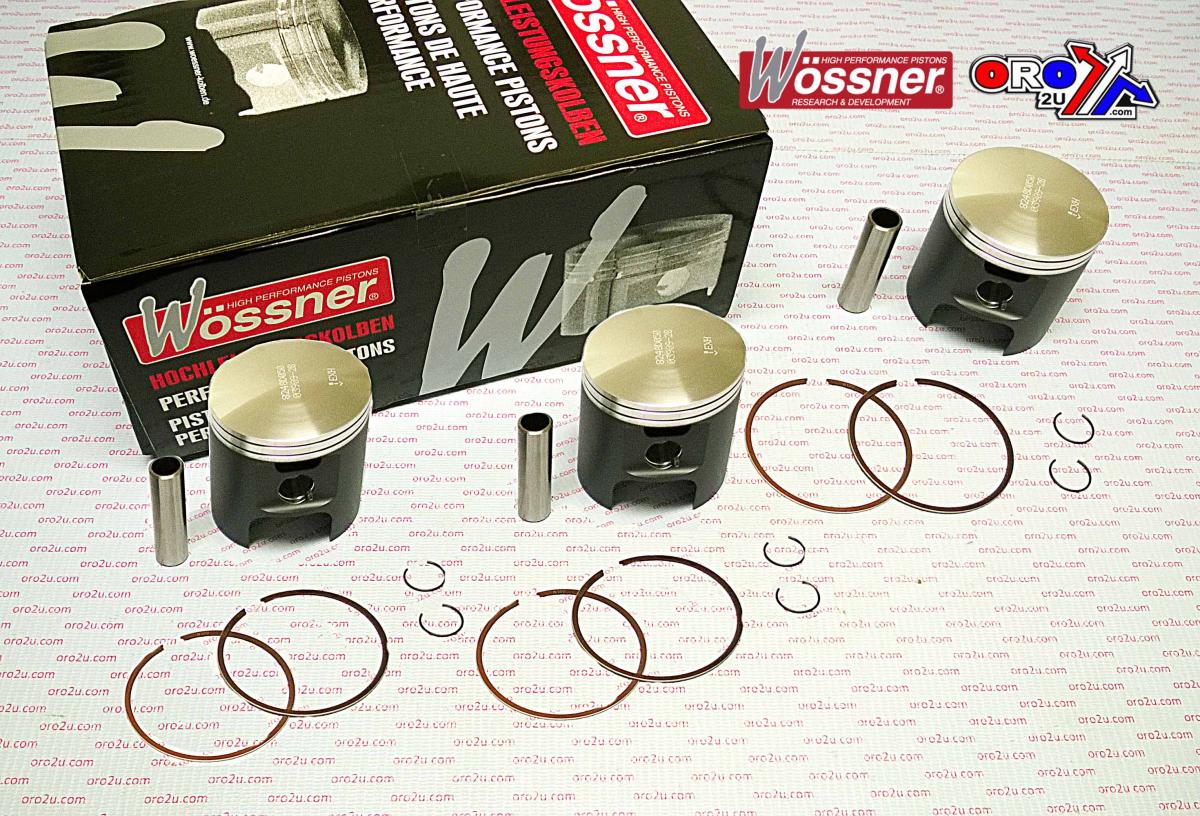

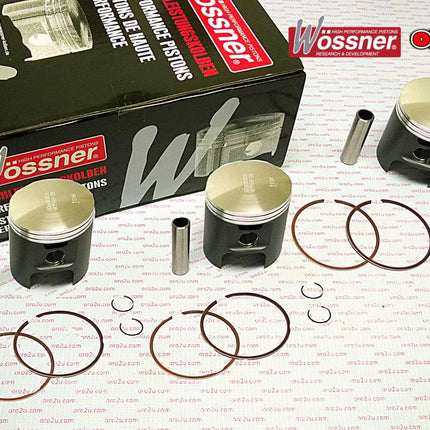

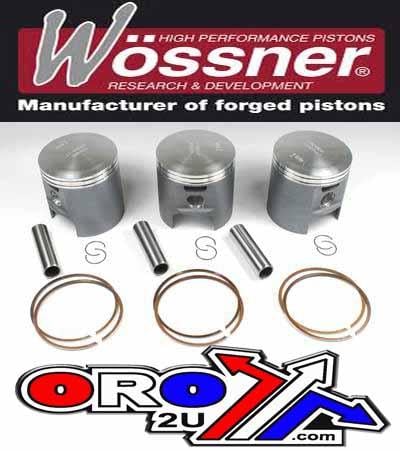

The Wossner K8248DA-3 piston kit is a standard-size forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from 1972 to 1975. Featuring a 71.00mm bore and built from high-strength materials, this kit ensures superior heat transfer and structural reliability. Manufactured in Germany, the set includes three pistons and all necessary installation components.

Features

Forged high-performance pistons with PTFE-coated skirts
Elliptical design provides even heat expansion and load distribution
Polished crown surfaces to resist detonation
Made from 4032 T6 alloy for tighter piston-to-bore tolerances
Includes piston pins, clips, and rings

Specifications

Bore size: 71.00mm (Standard)
Measured bore: 70.93mm
Display displacement: 747 cm³
Stroke: 63.00mm
Clearance: 0.07mm
Compression height: 32.00mm
Wossner compression ratio: 2-stroke
OEM compression ratio: 2-stroke
Quantity: 3 pistons per kit
Made in Germany

Cross-Reference OEM Part Numbers

Part No. 56-W9868.000.WO
Clip: CW16
Piston Pin: WP027
Ring Set: RSB7100 x 2 per piston

Vehicle Fitments

Kawasaki 750 Mach IV 1972–1975
Kawasaki H2 750 Triple Cylinder 1972–1975

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	H2 750	1972-1975
KAWASAKI	MACH IV 750	1972-1975

Piston KIT/3 750 Triple 71.00, Wossner K8248DA-3 1972-75

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Wossner K8248DA-3 piston kit is a standard-size forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W9868.000.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Wossner K8248DA-3 piston kit is a standard-size forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from 1972 to 1975. Featuring a 71.00mm bore and built from high-strength materials, this kit ensures superior heat transfer and structural reliability. Manufactured in Germany, the set includes three pistons and all necessary installation components.

Features

Forged high-performance pistons with PTFE-coated skirts
Elliptical design provides even heat expansion and load distribution
Polished crown surfaces to resist detonation
Made from 4032 T6 alloy for tighter piston-to-bore tolerances
Includes piston pins, clips, and rings

Specifications

Bore size: 71.00mm (Standard)
Measured bore: 70.93mm
Display displacement: 747 cm³
Stroke: 63.00mm
Clearance: 0.07mm
Compression height: 32.00mm
Wossner compression ratio: 2-stroke
OEM compression ratio: 2-stroke
Quantity: 3 pistons per kit
Made in Germany

Cross-Reference OEM Part Numbers

Part No. 56-W9868.000.WO
Clip: CW16
Piston Pin: WP027
Ring Set: RSB7100 x 2 per piston

Vehicle Fitments

Kawasaki 750 Mach IV 1972–1975
Kawasaki H2 750 Triple Cylinder 1972–1975

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	H2 750	1972-1975
KAWASAKI	MACH IV 750	1972-1975
