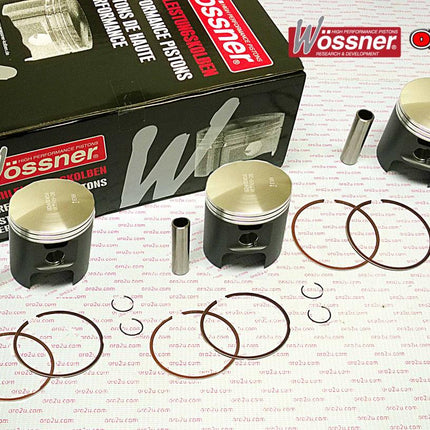

Piston KIT/3 750 Triple 72.50, Wossner K8248D150-3 1972-75

Description

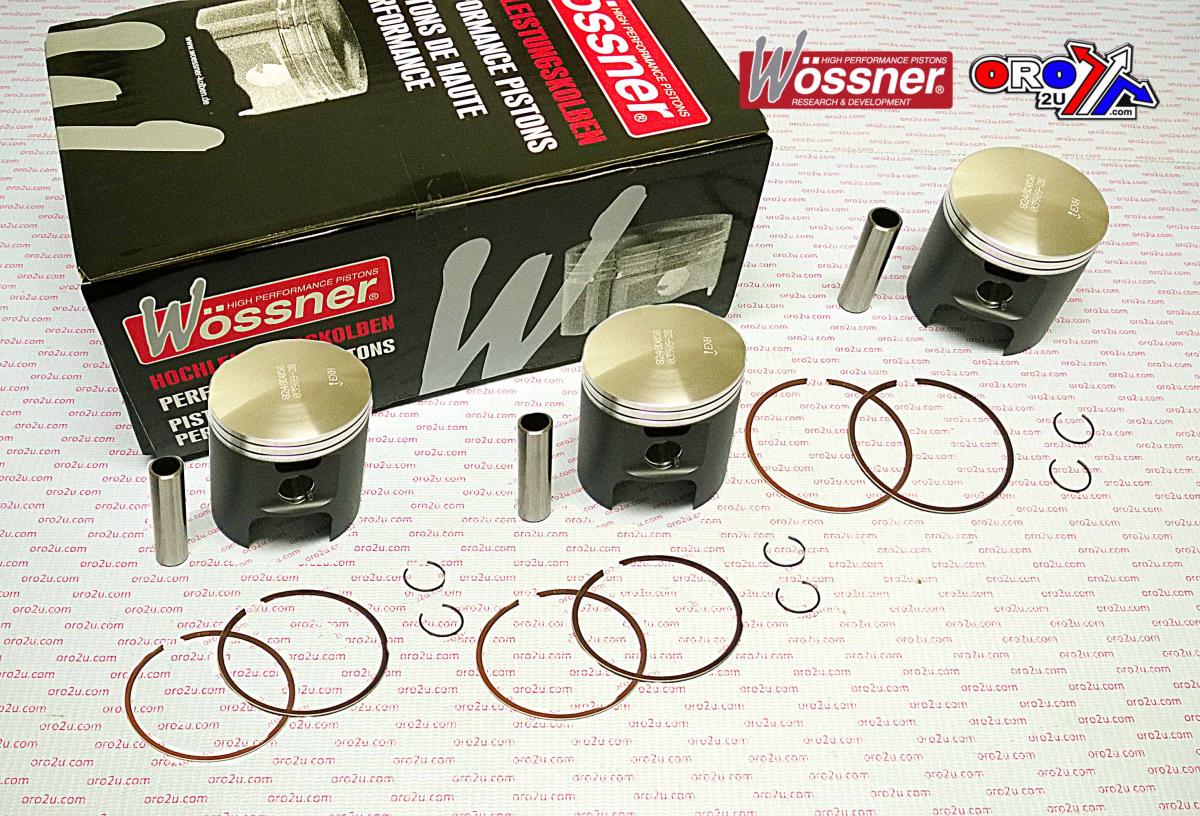

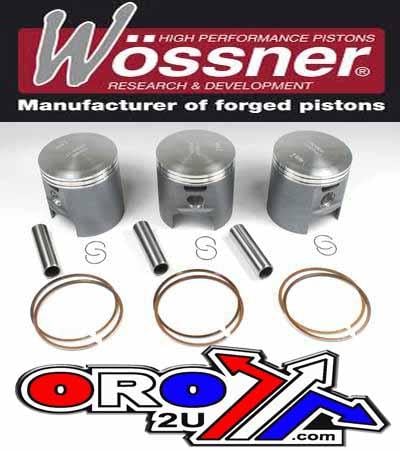

The Wossner K8248D150-3 piston kit is a +1.50mm oversize forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles manufactured between 1972 and 1975. Featuring a 72.50mm bore, this kit provides durable performance and optimised heat transfer for classic high-output engines. Manufactured in Germany, it includes three pistons along with all required installation components.

Features

  • Forged high-performance pistons with PTFE-coated skirts

  • Elliptical design promotes uniform load distribution and thermal expansion

  • Enhanced combustion chamber heat transfer to cylinder walls

  • Made from 4032 T6 alloy for close piston-to-bore tolerances

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 72.50mm (+1.50mm oversize)

  • Measured bore: 72.43mm

  • Display displacement: 747 cm³

  • Stroke: 63.00mm

  • Clearance: 0.07mm

  • Compression height: 32.00mm

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Quantity: 3 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9868.150.WO

  • Clip: CW16

  • Piston Pin: WP027

  • Ring Set: RSB7250 x 2 per piston

Vehicle Fitments

  • Kawasaki 750 Mach IV 1972–1975

  • Kawasaki H2 750 Triple Cylinder 1972–1975

Piston KIT/3 750 Triple 72.50, Wossner K8248D150-3 1972-75

Product form

The Wossner K8248D150-3 piston kit is a +1.50mm oversize forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles manufactured... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9868.150.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner K8248D150-3 piston kit is a +1.50mm oversize forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles manufactured between 1972 and 1975. Featuring a 72.50mm bore, this kit provides durable performance and optimised heat transfer for classic high-output engines. Manufactured in Germany, it includes three pistons along with all required installation components.

    Features

    • Forged high-performance pistons with PTFE-coated skirts

    • Elliptical design promotes uniform load distribution and thermal expansion

    • Enhanced combustion chamber heat transfer to cylinder walls

    • Made from 4032 T6 alloy for close piston-to-bore tolerances

    • Includes piston pins, clips, and rings

    Specifications

    • Bore size: 72.50mm (+1.50mm oversize)

    • Measured bore: 72.43mm

    • Display displacement: 747 cm³

    • Stroke: 63.00mm

    • Clearance: 0.07mm

    • Compression height: 32.00mm

    • Wossner compression ratio: 2-stroke

    • OEM compression ratio: 2-stroke

    • Quantity: 3 pistons per kit

    • Made in Germany

    Cross-Reference OEM Part Numbers

    • Part No. 56-W9868.150.WO

    • Clip: CW16

    • Piston Pin: WP027

    • Ring Set: RSB7250 x 2 per piston

    Vehicle Fitments

    • Kawasaki 750 Mach IV 1972–1975

    • Kawasaki H2 750 Triple Cylinder 1972–1975
