Piston KIT/4 77.00 Comp 13:1YAMAHA YZF1000 Wossner K8752DA-4

Description

The Wossner K8752DA-4 piston kit is a standard-size forged piston set designed for Yamaha R1 YZF1000 models from 2004 to 2006. With a 77.00mm bore and a raised compression ratio of 13.5:1, this high-performance kit enhances power output and combustion efficiency for demanding four-stroke applications. Manufactured in Germany, it includes four pistons along with all necessary installation components.

Features

  • Forged high-performance pistons with skirt coating
  • Elliptical design promotes uniform thermal expansion and balanced load distribution
  • Engineered for optimised heat transfer from combustion chamber to cylinder walls
  • Designed for high-compression four-stroke engines

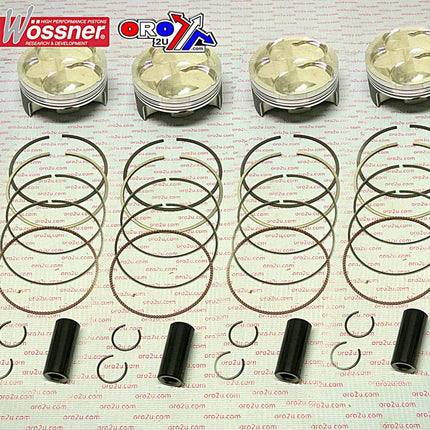

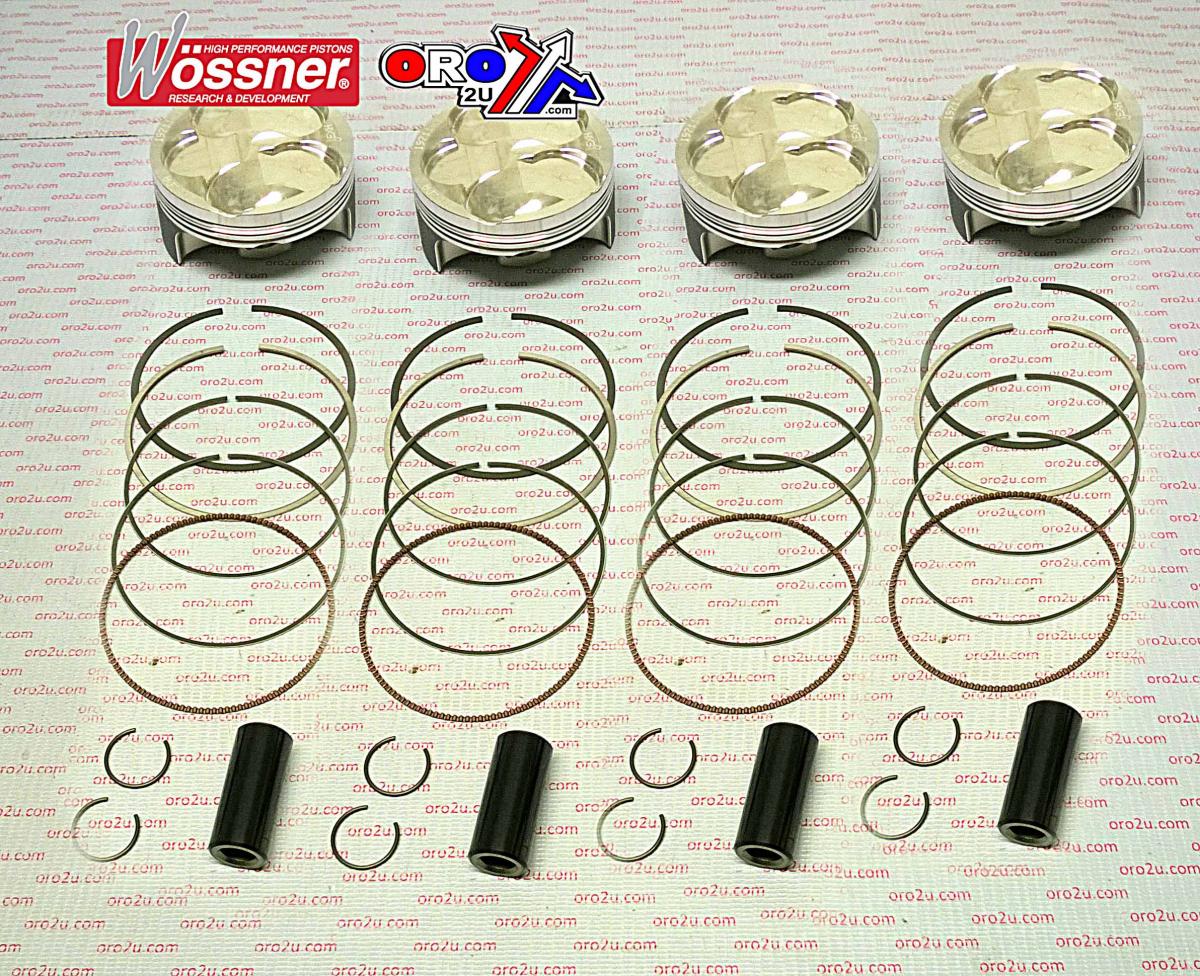

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 77.00mm (Standard)
  • Measured bore: 76.96mm
  • Display displacement: 998 / 1023 cm³
  • Stroke: 53.60mm
  • Clearance: 0.04mm
  • Compression ratio: 13.5:1
  • OEM compression ratio: 12.5:1
  • Dome volume: –4.70 cm³
  • Compression height: 22.80mm
  • Quantity: 4 pistons per kit
  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9876.000.WO
  • Clip: CW17
  • Piston Pin: WP0111
  • Ring Set: 770XAS-2

Vehicle Fitments

  • Yamaha R1 YZF1000 2004–2006

Piston KIT/4 77.00 Comp 13:1YAMAHA YZF1000 Wossner K8752DA-4
