Piston KIT/4 Kaw KZ10R C 13:1, Wossner K8746D200-4 O/s 2.00

Description

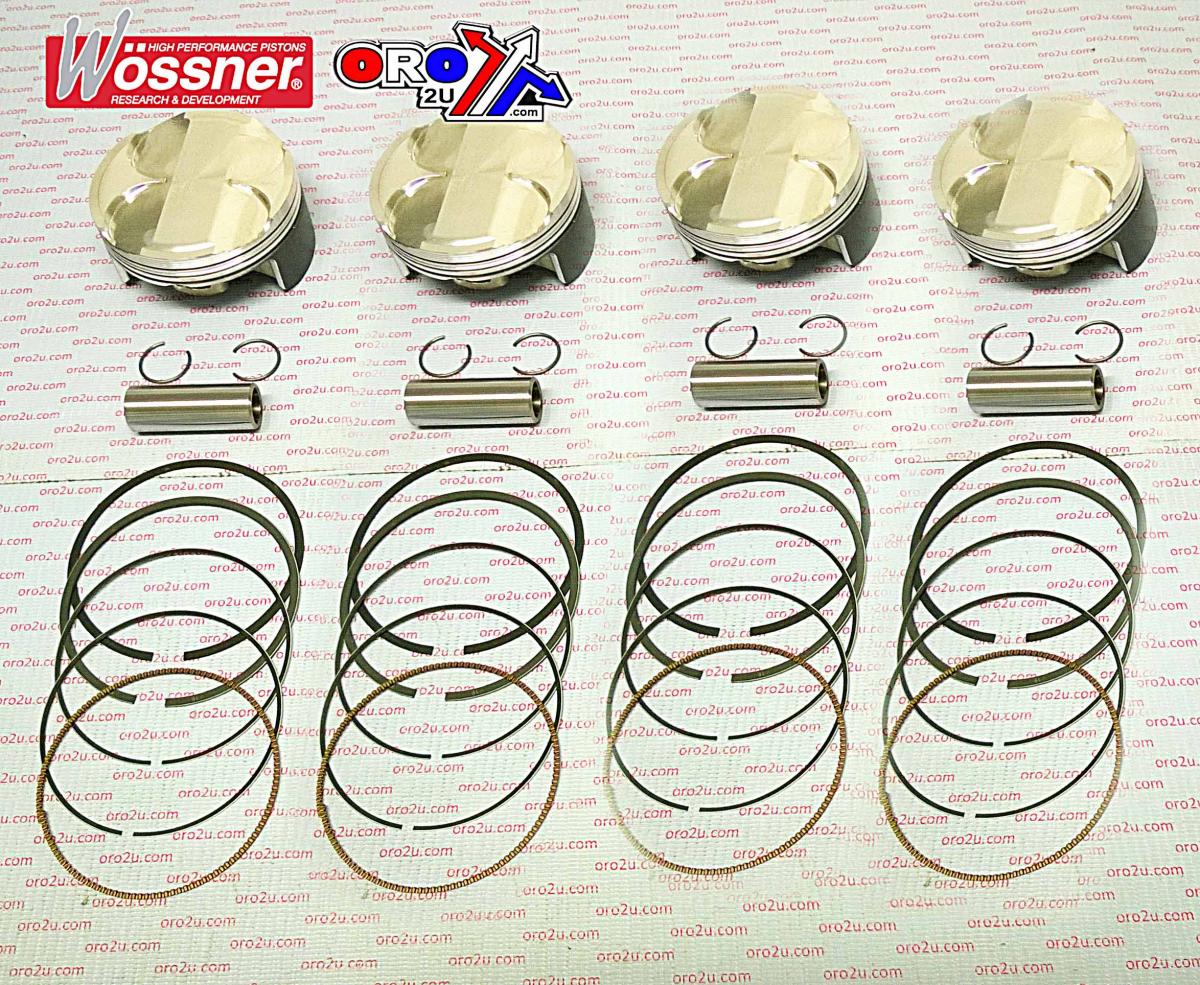

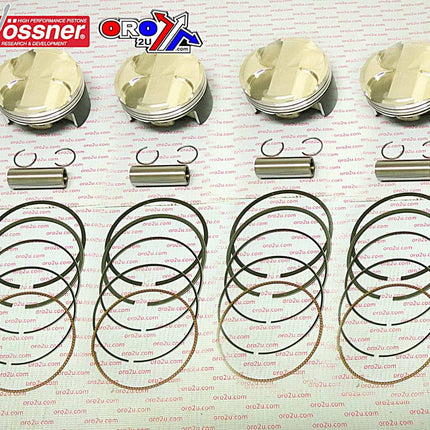

Piston kit 78mm BORE 77.94 Wossner K8746D200-4 (+2MM)

KAWASAKI
ZX10R Racing 2004 - 2007,
ZX10R 2008 - 2010,

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W9808.200.WO (radhouse.co.uk)
Kawasaki ZX10R 2011 to Current, Comp. 13.4:1
Lock P/N CW17
Pin P/N WP038
Ring Set P/N 780XWY

Display (cm3) 998 / 1051
Hub stroke (mm) 55.00
Clearance (mm) 0.06
Wossner compression Ratio: 13.40:1
OEM Compression ratio: 12.70:1
Dome volume (cm3) -1.80
Compression height (mm) 22.70
Theorectical weight (G)

heat inside the chamber which will help prevent ?hot spots? on piston crowns. Price includes all piston rings and gudgeon pins.

Piston KIT/4 Kaw KZ10R C 13:1, Wossner K8746D200-4 O/s 2.00

Product form

Piston kit 78mm BORE 77.94 Wossner K8746D200-4 (+2MM) KAWASAKIZX10R Racing 2004 - 2007,ZX10R 2008 - 2010, Wossner forged pistons are... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9808.78.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Piston kit 78mm BORE 77.94 Wossner K8746D200-4 (+2MM)

    KAWASAKI
    ZX10R Racing 2004 - 2007,
    ZX10R 2008 - 2010,

    • Wossner forged pistons are superior in strength and design.
    • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
    • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
    • Made in Germany.

    Part No. 56-W9808.200.WO (radhouse.co.uk)
    Kawasaki ZX10R 2011 to Current, Comp. 13.4:1
    Lock P/N CW17
    Pin P/N WP038
    Ring Set P/N 780XWY

    Display (cm3) 998 / 1051
    Hub stroke (mm) 55.00
    Clearance (mm) 0.06
    Wossner compression Ratio: 13.40:1
    OEM Compression ratio: 12.70:1
    Dome volume (cm3) -1.80
    Compression height (mm) 22.70
    Theorectical weight (G)

    heat inside the chamber which will help prevent ?hot spots? on piston crowns. Price includes all piston rings and gudgeon pins.
