Piston KIT/4 Kaw KZ10R C Turbo, Wossner K8767D200-4 48mm

Description

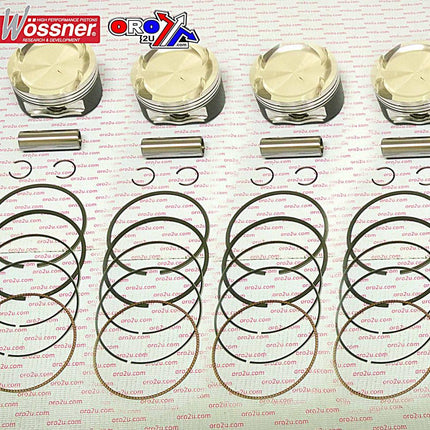

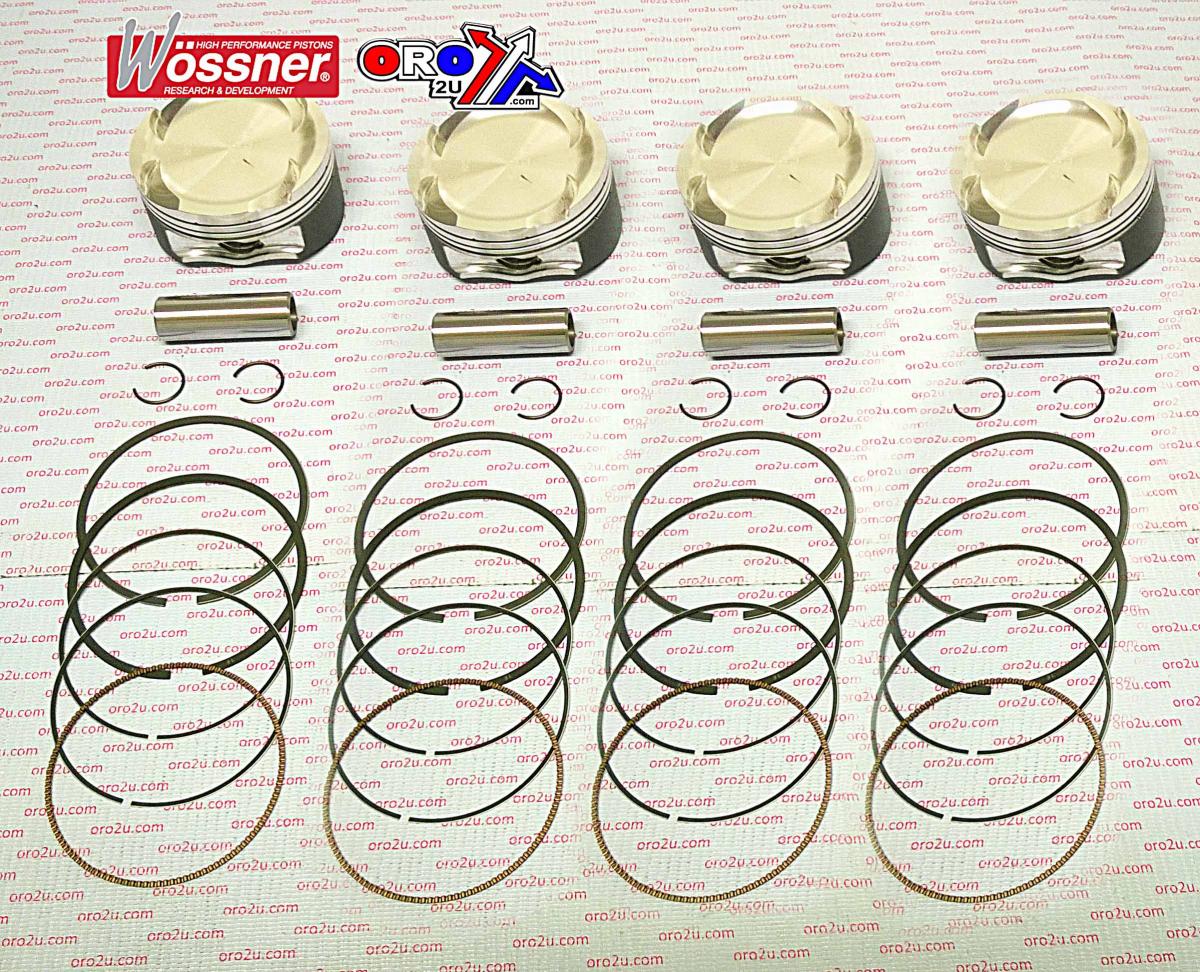

The Wossner K8767DA-4 piston kit is a +2.00mm oversize forged piston set designed for the Kawasaki ZX10R Turbo models from 2008 to 2010. With a 78.00mm bore and a reduced compression ratio of 10.0:1, this kit is optimised for turbocharged performance, ensuring durability and efficient combustion under high boost. Manufactured in Germany, the kit includes four pistons and all required installation components.

Features

  • Forged high-performance pistons with skirt coating

  • Elliptical design provides even thermal expansion and load distribution

  • Optimised heat transfer from combustion chamber to cylinder walls

  • Lower compression ratio ideal for turbocharged setups

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 78.00mm (+2.00mm oversize)

  • Measured bore: 77.94mm

  • Display displacement: 998 / 1051 cm³

  • Stroke: 55.00mm

  • Clearance: 0.06mm

  • Compression ratio: 10.0:1

  • OEM compression ratio: 12.7:1

  • Dome volume: –9.30 cm³

  • Compression height: 22.70mm

  • Quantity: 4 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9872.000.WO

  • Clip: CW17

  • Piston Pin: WP090

  • Ring Set: 780XAS

Vehicle Fitments

  • Kawasaki ZX10R Turbo 2008–2010
