Piston KIT/4 Kaw KZ10R C Turbo, Wossner K8767D400-4 80mm

Description

The Wossner K8767D400-4 piston kit is a +4.00mm oversize forged piston set developed for Kawasaki ZX10R Turbo models from 2008 to 2010. With an 80.00mm bore and a lowered compression ratio of 10.0:1, this kit is specifically engineered for high-performance turbocharged applications. Manufactured in Germany, the set includes four pistons along with all necessary components for installation.

Features

  • Forged high-performance pistons with skirt coating

  • Elliptical design ensures balanced heat expansion and load distribution

  • Designed for optimal combustion chamber heat transfer to cylinder walls

  • Lowered compression ratio suitable for turbocharged engines

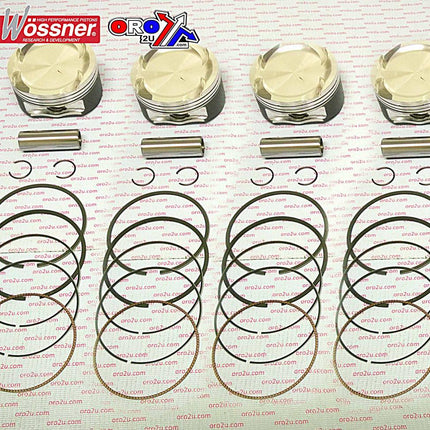

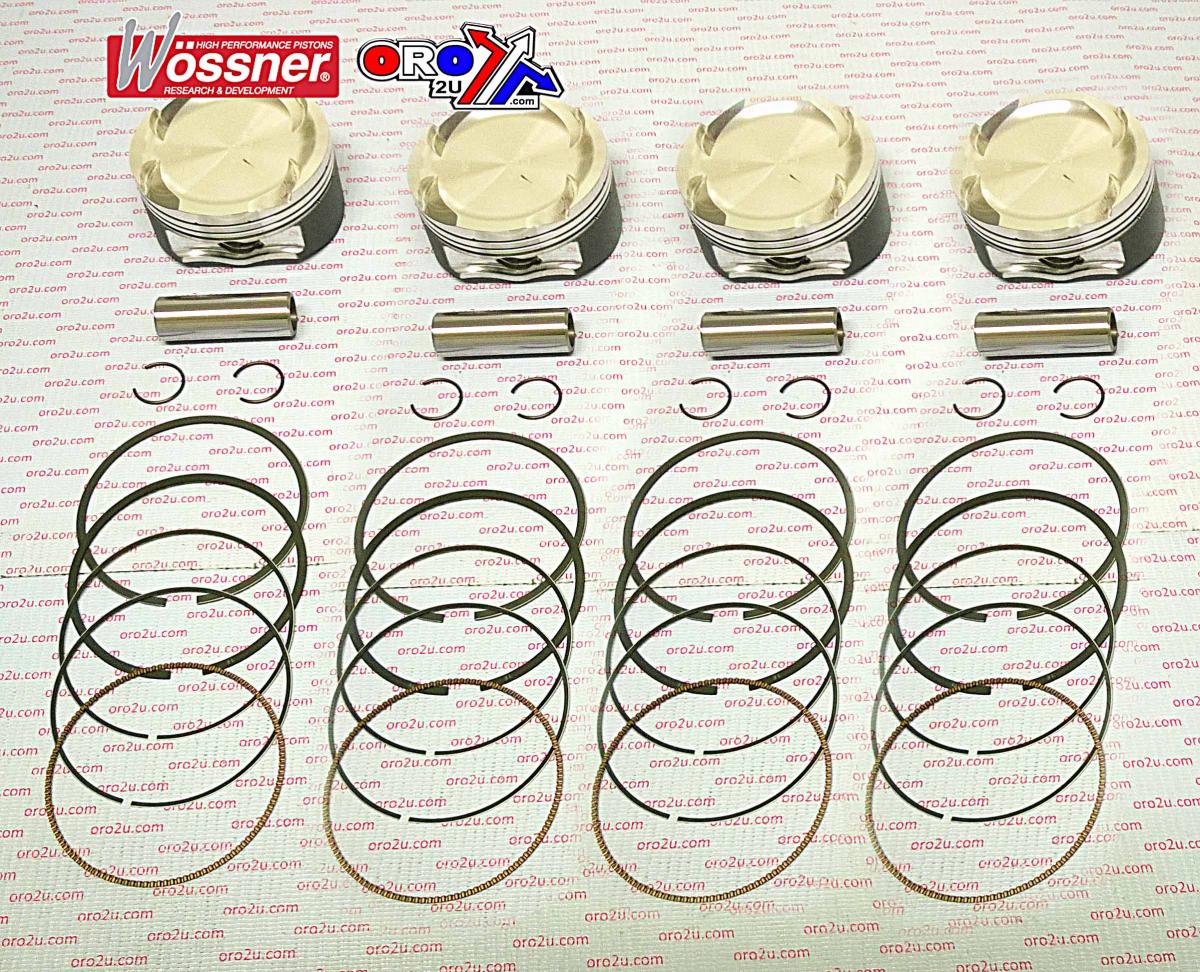

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 80.00mm (+4.00mm oversize)

  • Measured bore: 79.94mm

  • Display displacement: 998 / 1051 cm³

  • Stroke: 55.00mm

  • Clearance: 0.06mm

  • Compression ratio: 10.0:1

  • OEM compression ratio: 12.7:1

  • Dome volume: –9.30 cm³

  • Compression height: 22.70mm

  • Quantity: 4 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9872.400.WO

  • Clip: CW17

  • Piston Pin: WP090

  • Ring Set: 800XAS

Vehicle Fitments

  • Kawasaki ZX10R Turbo 2008–2010

Piston KIT/4 Kaw KZ10R C Turbo, Wossner K8767D400-4 80mm

Product form

The Wossner K8767D400-4 piston kit is a +4.00mm oversize forged piston set developed for Kawasaki ZX10R Turbo models from 2008... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9872.400.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner K8767D400-4 piston kit is a +4.00mm oversize forged piston set developed for Kawasaki ZX10R Turbo models from 2008 to 2010. With an 80.00mm bore and a lowered compression ratio of 10.0:1, this kit is specifically engineered for high-performance turbocharged applications. Manufactured in Germany, the set includes four pistons along with all necessary components for installation.

    Features

    • Forged high-performance pistons with skirt coating

    • Elliptical design ensures balanced heat expansion and load distribution

    • Designed for optimal combustion chamber heat transfer to cylinder walls

    • Lowered compression ratio suitable for turbocharged engines

    • Includes piston pins, clips, and rings

    Specifications

    • Bore size: 80.00mm (+4.00mm oversize)

    • Measured bore: 79.94mm

    • Display displacement: 998 / 1051 cm³

    • Stroke: 55.00mm

    • Clearance: 0.06mm

    • Compression ratio: 10.0:1

    • OEM compression ratio: 12.7:1

    • Dome volume: –9.30 cm³

    • Compression height: 22.70mm

    • Quantity: 4 pistons per kit

    • Made in Germany

    Cross-Reference OEM Part Numbers

    • Part No. 56-W9872.400.WO

    • Clip: CW17

    • Piston Pin: WP090

    • Ring Set: 800XAS

    Vehicle Fitments

    • Kawasaki ZX10R Turbo 2008–2010
