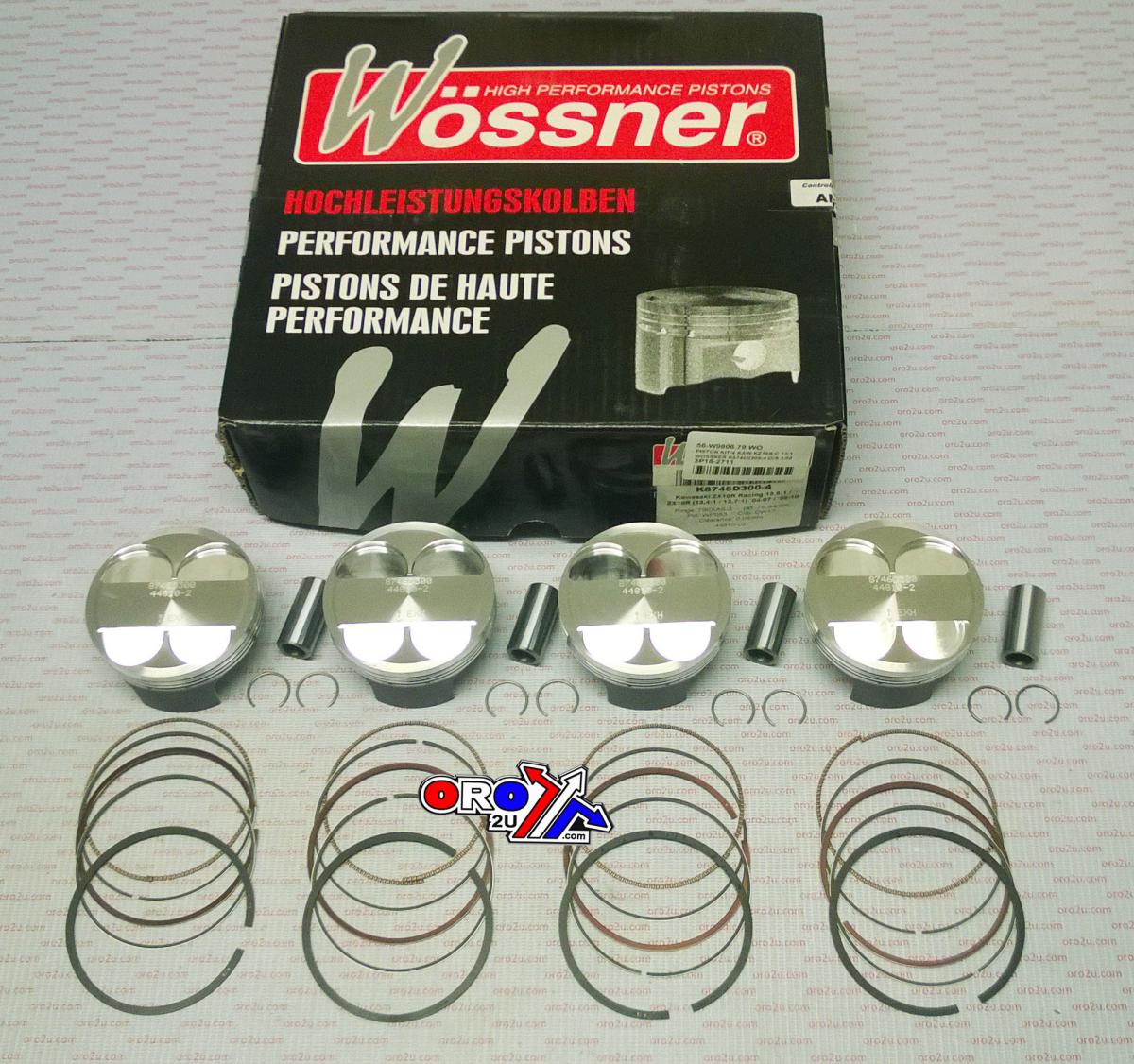

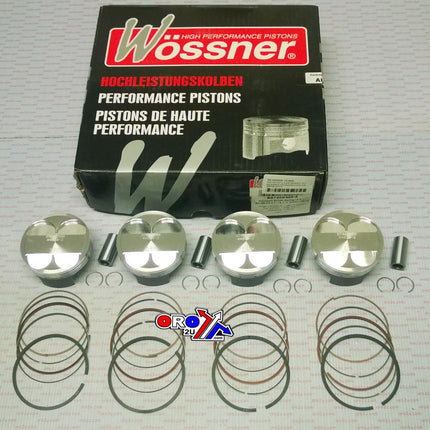

Piston KIT/4 Kawasaki KZ10R C 13:1 Wossner K8746D300-4 3.00

Description

This Wossner piston kit features a 79mm bore and is an oversized (+3mm) option for Kawasaki ZX10R Racing (2004–2007), ZX10R (2008–2010), and ZX10R models from 2011 to current. Forged in Germany for high-performance applications, the pistons are engineered for superior strength, optimal heat dissipation, and uniform expansion under thermal load, helping to prevent piston collapse during intense operation.

Features

  • Forged construction ensures strength and durability
  • Designed for efficient heat transfer from combustion chamber to cylinder walls
  • Elliptical design provides even bearing surface under thermal expansion
  • Reduces localised pressure and evenly distributes thrust loads
  • Manufactured in Germany

Specifications

  • Bore: 79.00mm (+3.00mm Oversize)
  • Actual bore: 78.94mm
  • Display volume: 998 / 1051 cm³
  • Stroke: 55.00mm
  • Clearance: 0.06mm
  • Wossner compression ratio: 13.40:1
  • OEM compression ratio: 12.70:1
  • Dome volume: -1.80 cm³
  • Compression height: 22.70mm
  • Lock Part Number: CW17
  • Pin Part Number: WP038
  • Ring Set Part Number: RIK79.00D3

Cross-Reference OEM Part Numbers

  • 56-W9808.300.WO
  • K8746D300-4

Vehicle Fitments

  • Kawasaki ZX10R Racing (2004–2007)
  • Kawasaki ZX10R (2008–2010)
  • Kawasaki ZX10R (2011–Current)

Piston KIT/4 Kawasaki KZ10R C 13:1 Wossner K8746D300-4 3.00

Product form

This Wossner piston kit features a 79mm bore and is an oversized (+3mm) option for Kawasaki ZX10R Racing (2004–2007), ZX10R... Read more

2 in stock 1-2 business days

£930.98 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9808.79.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner piston kit features a 79mm bore and is an oversized (+3mm) option for Kawasaki ZX10R Racing (2004–2007), ZX10R (2008–2010), and ZX10R models from 2011 to current. Forged in Germany for high-performance applications, the pistons are engineered for superior strength, optimal heat dissipation, and uniform expansion under thermal load, helping to prevent piston collapse during intense operation.

    Features

    • Forged construction ensures strength and durability
    • Designed for efficient heat transfer from combustion chamber to cylinder walls
    • Elliptical design provides even bearing surface under thermal expansion
    • Reduces localised pressure and evenly distributes thrust loads
    • Manufactured in Germany

    Specifications

    • Bore: 79.00mm (+3.00mm Oversize)
    • Actual bore: 78.94mm
    • Display volume: 998 / 1051 cm³
    • Stroke: 55.00mm
    • Clearance: 0.06mm
    • Wossner compression ratio: 13.40:1
    • OEM compression ratio: 12.70:1
    • Dome volume: -1.80 cm³
    • Compression height: 22.70mm
    • Lock Part Number: CW17
    • Pin Part Number: WP038
    • Ring Set Part Number: RIK79.00D3

    Cross-Reference OEM Part Numbers

    • 56-W9808.300.WO
    • K8746D300-4

    Vehicle Fitments

    • Kawasaki ZX10R Racing (2004–2007)
    • Kawasaki ZX10R (2008–2010)
    • Kawasaki ZX10R (2011–Current)
