Piston KIT/4 Suz GSXR1000 Turb, Wossner K8747D160-4 75.00mm

Description

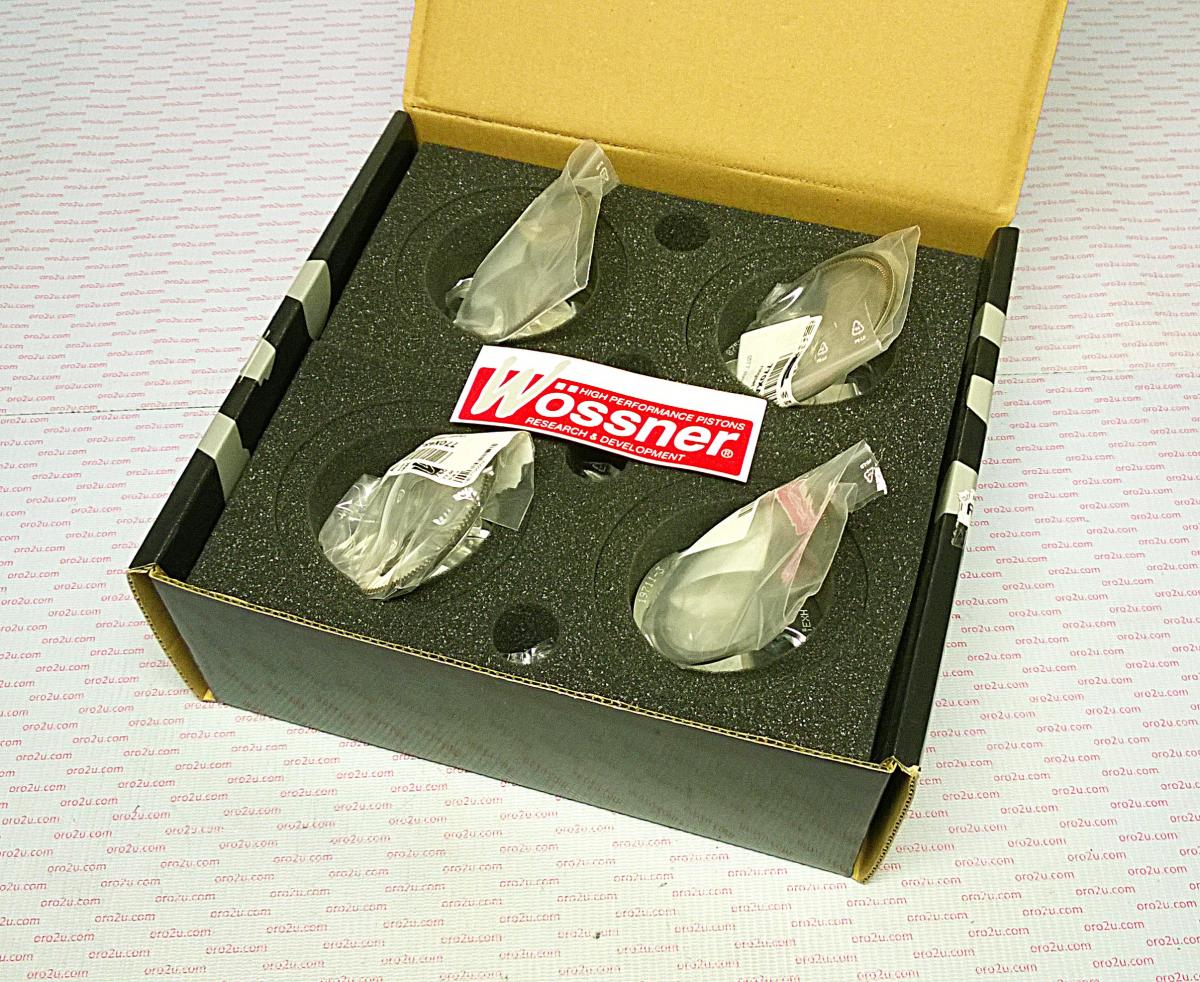

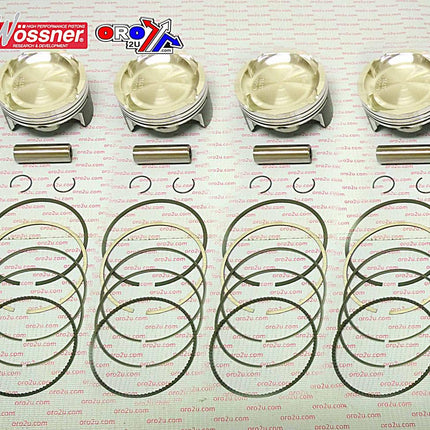

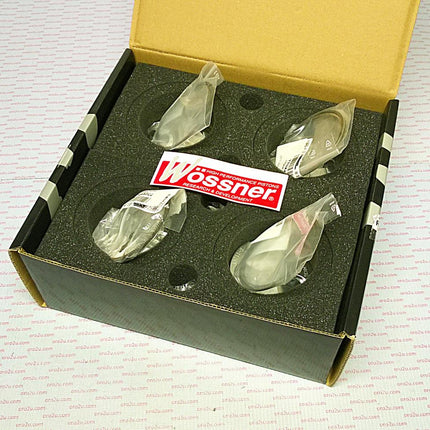

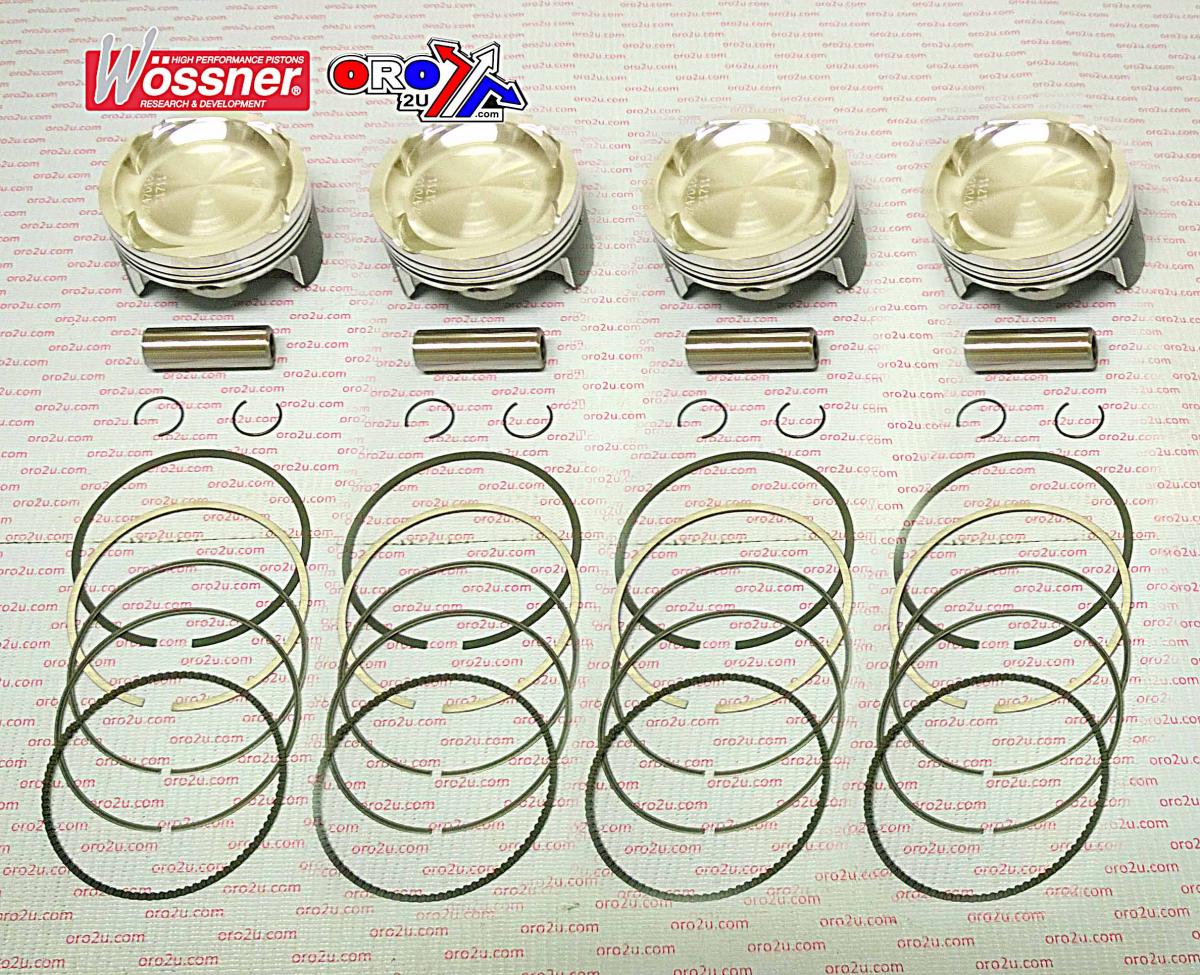

The Wossner K8747D160-4 piston kit is a +1.60mm oversize forged piston set designed for Suzuki GSXR1000 Turbo models from 2005 to 2008. Featuring a 75.00mm bore and a reduced compression ratio of 10.0:1, these pistons are optimised for high-boost turbocharged performance. Manufactured in Germany, the kit includes four pistons and all required installation components.

Features

  • Forged high-performance pistons with skirt coating

  • Elliptical design ensures even thermal expansion and load distribution

  • Designed for efficient heat transfer to cylinder walls

  • Lower compression ratio ideal for turbocharged setups

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 75.00mm (+1.60mm oversize)

  • Measured bore: 74.96mm

  • Display displacement: 998 / 1042 / 1070 cm³

  • Stroke: 59.00mm

  • Clearance: 0.04mm

  • Compression ratio: 10.0:1

  • OEM compression ratio: 12.5:1

  • Dome volume: –12.50 cm³

  • Compression height: 22.50mm

  • Quantity: 4 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9871.160.WO

  • Clip: CW15

  • Piston Pin: WP011

  • Ring Set: RIK75.00L

Vehicle Fitments

  • Suzuki GSXR1000 Turbo 2005–2008

Piston KIT/4 Suz GSXR1000 Turb, Wossner K8747D160-4 75.00mm

Product form

The Wossner K8747D160-4 piston kit is a +1.60mm oversize forged piston set designed for Suzuki GSXR1000 Turbo models from 2005... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9871.160.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner K8747D160-4 piston kit is a +1.60mm oversize forged piston set designed for Suzuki GSXR1000 Turbo models from 2005 to 2008. Featuring a 75.00mm bore and a reduced compression ratio of 10.0:1, these pistons are optimised for high-boost turbocharged performance. Manufactured in Germany, the kit includes four pistons and all required installation components.

    Features

    • Forged high-performance pistons with skirt coating

    • Elliptical design ensures even thermal expansion and load distribution

    • Designed for efficient heat transfer to cylinder walls

    • Lower compression ratio ideal for turbocharged setups

    • Includes piston pins, clips, and rings

    Specifications

    • Bore size: 75.00mm (+1.60mm oversize)

    • Measured bore: 74.96mm

    • Display displacement: 998 / 1042 / 1070 cm³

    • Stroke: 59.00mm

    • Clearance: 0.04mm

    • Compression ratio: 10.0:1

    • OEM compression ratio: 12.5:1

    • Dome volume: –12.50 cm³

    • Compression height: 22.50mm

    • Quantity: 4 pistons per kit

    • Made in Germany

    Cross-Reference OEM Part Numbers

    • Part No. 56-W9871.160.WO

    • Clip: CW15

    • Piston Pin: WP011

    • Ring Set: RIK75.00L

    Vehicle Fitments

    • Suzuki GSXR1000 Turbo 2005–2008
