Name: Piston KIT-4 Suzuki GSXR1000 K9-K10 Wossner K8790DA-4
Brand: Wossner
SKU: 56-W9933.000.WO
Price: 777.57 GBP
Availability: InStock

Piston KIT-4 Suzuki GSXR1000 K9-K10 Wossner K8790DA-4

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

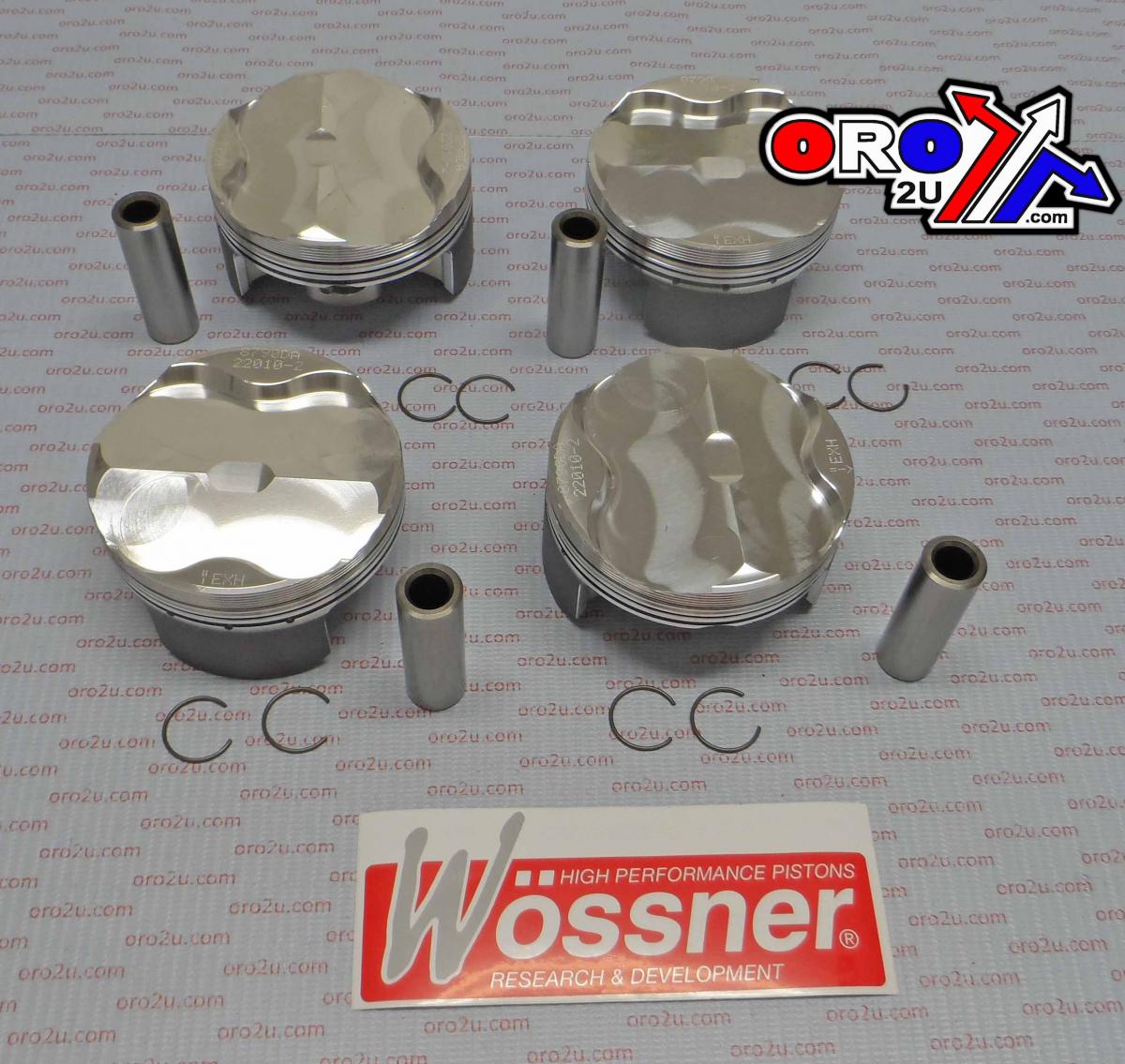

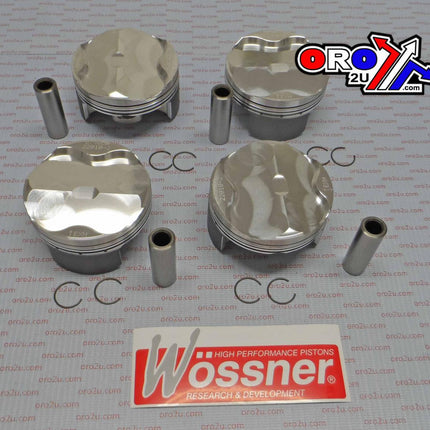

Forged piston kit set of four with a standard 74.50 mm bore (measured piston diameter 74.46 mm), engineered for high-performance road and race use. Designed to withstand extreme thermal and mechanical loads, with an elliptical profile for consistent bearing surfaces and balanced thrust load distribution. Must be used with the OEM ring set.

Features

Forged construction for maximum strength and durability
Optimised heat transfer from combustion chamber to cylinder walls
Elliptical profile for consistent bearing surface under heat expansion
Even thrust load distribution to help prevent piston collapse
Manufactured in Germany
Supplied as a set of four pistons
Must be used with OEM ring set

Specifications

Bore: 74.50 mm
Measured diameter: 74.46 mm
Engine displacement (reference): 999 / 1052 cm³
Stroke: 57.30 mm
Clearance: 0.04 mm
Compression ratio (Wössner): 14.00:1
Compression ratio (OEM reference): 12.80:1
Dome volume: −4.40 cm³
Compression height: 22.35 mm
Quantity in kit: 4 pistons

Cross-Reference OEM Part Numbers

56-W9933.000.WO
Wössner K8790DA-4
Clips: CW15
Piston pin: WP011
Ring set: OEM (use original equipment rings)

Vehicle Fitments

Suzuki GSX-R1000 2009–2016

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	GSX R 1000	2009-2015

Piston KIT-4 Suzuki GSXR1000 K9-K10 Wossner K8790DA-4

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Forged piston kit set of four with a standard 74.50 mm bore (measured piston diameter 74.46 mm), engineered for high-performance... Read more

1 in stock 1-2 business days

£777.57 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W9933.000.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Forged piston kit set of four with a standard 74.50 mm bore (measured piston diameter 74.46 mm), engineered for high-performance road and race use. Designed to withstand extreme thermal and mechanical loads, with an elliptical profile for consistent bearing surfaces and balanced thrust load distribution. Must be used with the OEM ring set.

Features

Forged construction for maximum strength and durability
Optimised heat transfer from combustion chamber to cylinder walls
Elliptical profile for consistent bearing surface under heat expansion
Even thrust load distribution to help prevent piston collapse
Manufactured in Germany
Supplied as a set of four pistons
Must be used with OEM ring set

Specifications

Bore: 74.50 mm
Measured diameter: 74.46 mm
Engine displacement (reference): 999 / 1052 cm³
Stroke: 57.30 mm
Clearance: 0.04 mm
Compression ratio (Wössner): 14.00:1
Compression ratio (OEM reference): 12.80:1
Dome volume: −4.40 cm³
Compression height: 22.35 mm
Quantity in kit: 4 pistons

Cross-Reference OEM Part Numbers

56-W9933.000.WO
Wössner K8790DA-4
Clips: CW15
Piston pin: WP011
Ring set: OEM (use original equipment rings)

Vehicle Fitments

Suzuki GSX-R1000 2009–2016

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	GSX R 1000	2009-2015
