Name: Piston Kit 71-89 TS125 56.50, Forged Wossner 8146D050
Brand: Wossner
SKU: 56-W257.050.WO

Piston Kit 71-89 TS125 56.50, Forged Wossner 8146D050

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

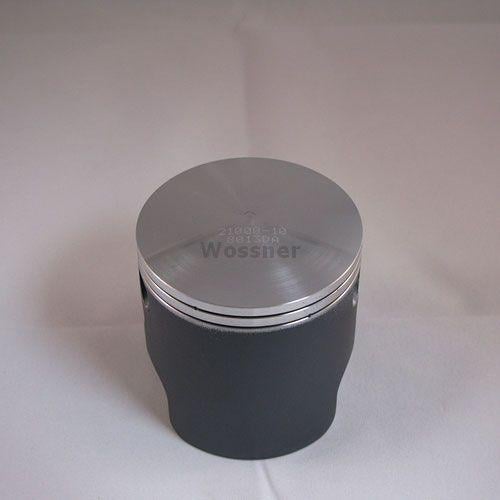

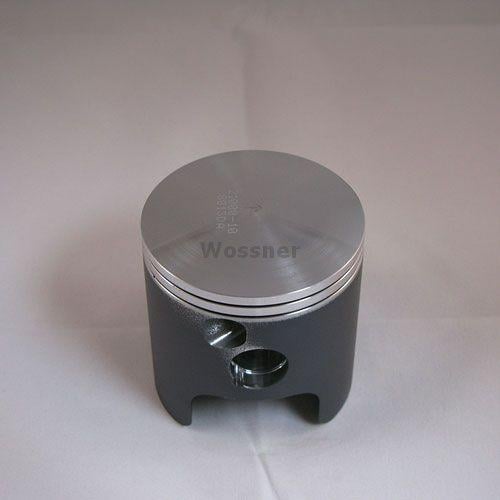

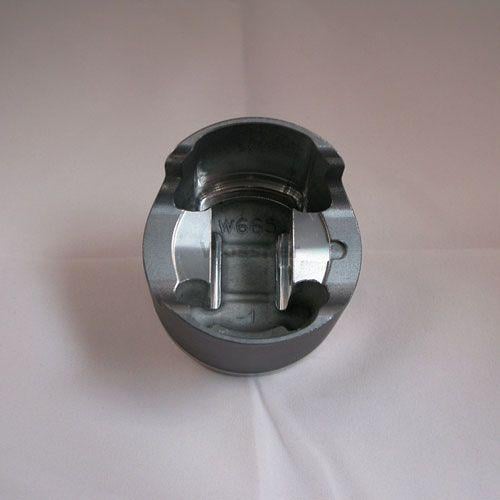

Wossner forged piston kit with a 56.50mm bore and 56.44mm diameter, designed for Suzuki TS125, RV125, TS125ER, and TS125X models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

Forged construction for superior strength
Optimized heat transfer for efficient combustion
Elliptical design for uniform load distribution
Manufactured in Germany

Specifications

Bore: 56.50mm
Diameter: 56.44mm
Display (cm³): 125
Stroke (mm): 50.00
Clearance (mm): 0.06
Wossner Compression Ratio: 2-Stroke
OEM Compression Ratio: 2-Stroke
Compression Height (mm): 29.00

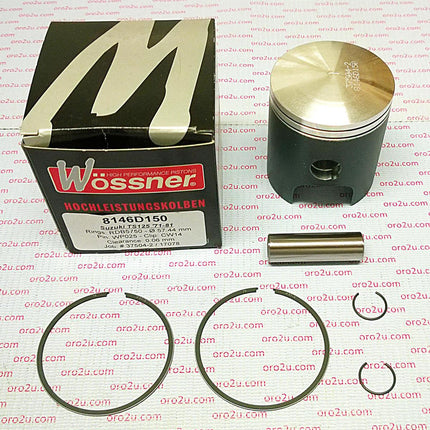

Cross-Reference OEM Part Numbers

Wossner Piston Suzuki TS125 (PN# 8146D050)
Lock P/N: CW14
Pin P/N: WP025
Ring Set P/N: RSB5650 x 2

Vehicle Fitments

Suzuki TS125 (1971-1981)
Suzuki RV125 (1974-1978)
Suzuki TS125ER (1979-1981)
Suzuki TS125X (1984-1989)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	TS X 125	1984-1989
SUZUKI	TS ER 125	1979-1981
SUZUKI	TS 125	1971-1981
SUZUKI	RV 125	1974-1978
SUZUKI	TS ER 125	1971-1981
