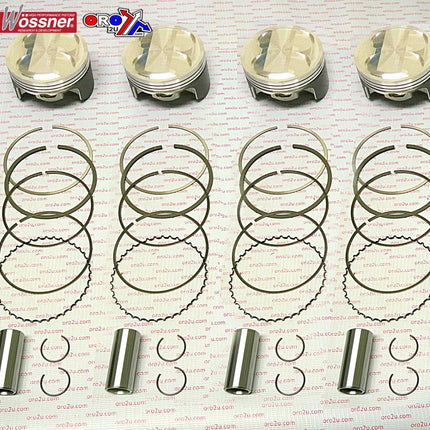

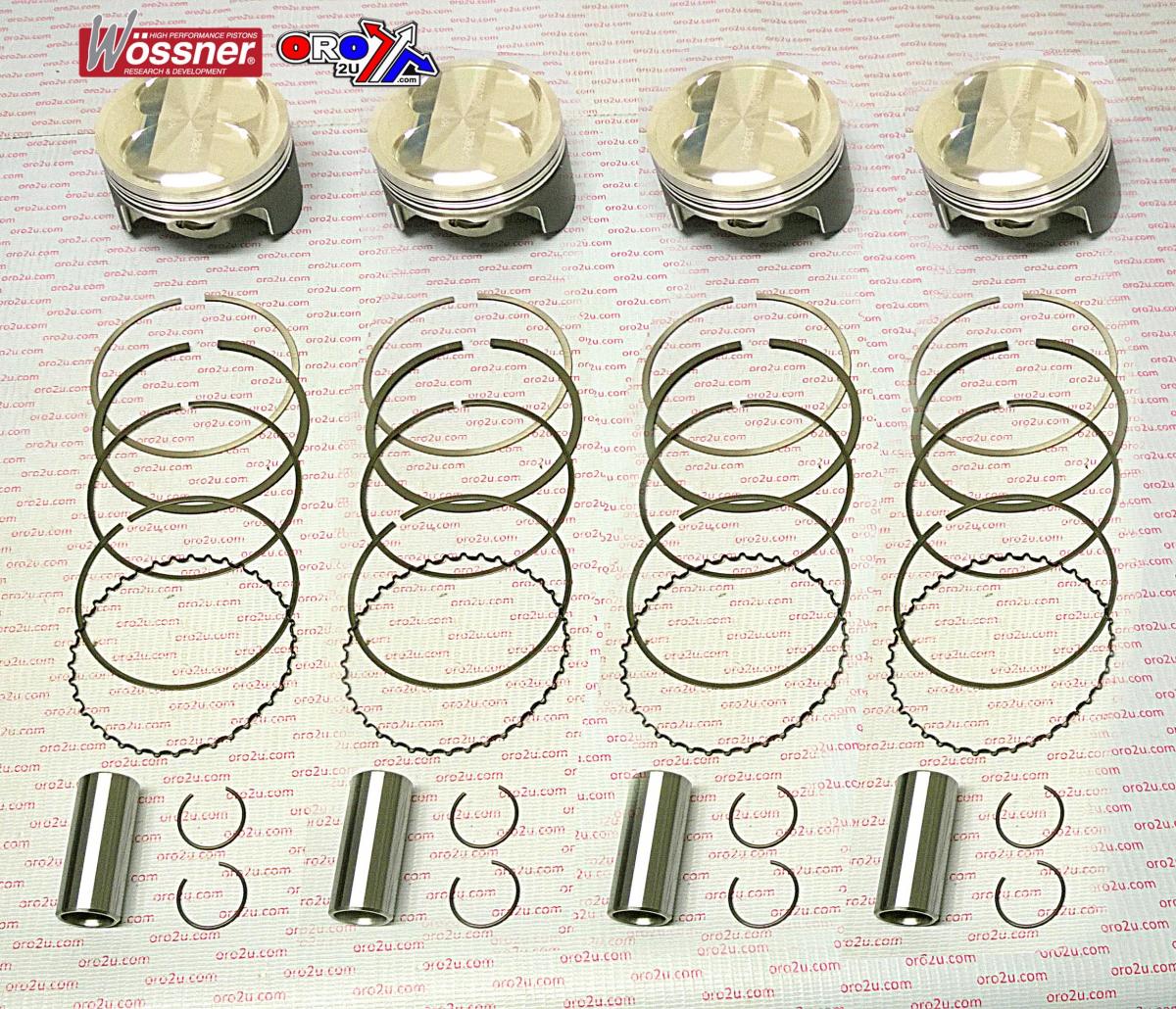

Piston Kit 82mm Oversize 4.00mm SET/4 Suzuki GSXR1100 Wossner K8530D400-4

Description

Forged piston kit set of four with an 82.00 mm bore (+4.00 mm oversize) and measured piston diameter of 81.94 mm. Engineered for strength, efficient heat transfer and stable operation under thermal load, the elliptical skirt profile promotes a uniform bearing surface and even thrust load distribution. Manufactured in Germany.

Features

  • Forged pistons engineered for strength and durability
  • Optimised heat transfer from combustion chamber to cylinder walls
  • Elliptical design provides a uniform bearing surface under heat expansion
  • Distributes thrust loads evenly to help prevent piston collapse
  • Made in Germany

Specifications

  • Bore size: 82.00 mm
  • Measured piston diameter: 81.94 mm
  • Oversize: +4.00 mm
  • Compression ratio (Wössner): 12.5:1
  • OEM compression ratio (reference): 10.0:1
  • Compression height: 25.30 mm
  • Dome volume: +3.80 cm³
  • Recommended clearance: 0.06 mm
  • Stroke (engine reference): 58.00 mm
  • Displacement (cm³): 1165 / 1194 / 1224 / 1254 / 1315

Cross-Reference OEM Part Numbers

  • Wössner K8530D400-4
  • Clip: CW20
  • Piston pin: WP029
  • Ring set: 820XSY

Vehicle Fitments

  • Suzuki GSX-R1100 1989–1992
  • Suzuki GSF1200 Bandit 1989–1992
  • Suzuki GSX1100F Katana 1989–1992

Piston Kit 82mm Oversize 4.00mm SET/4 Suzuki GSXR1100 Wossner K8530D400-4

Product form

Forged piston kit set of four with an 82.00 mm bore (+4.00 mm oversize) and measured piston diameter of 81.94... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9890.400.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Forged piston kit set of four with an 82.00 mm bore (+4.00 mm oversize) and measured piston diameter of 81.94 mm. Engineered for strength, efficient heat transfer and stable operation under thermal load, the elliptical skirt profile promotes a uniform bearing surface and even thrust load distribution. Manufactured in Germany.

    Features

    • Forged pistons engineered for strength and durability
    • Optimised heat transfer from combustion chamber to cylinder walls
    • Elliptical design provides a uniform bearing surface under heat expansion
    • Distributes thrust loads evenly to help prevent piston collapse
    • Made in Germany

    Specifications

    • Bore size: 82.00 mm
    • Measured piston diameter: 81.94 mm
    • Oversize: +4.00 mm
    • Compression ratio (Wössner): 12.5:1
    • OEM compression ratio (reference): 10.0:1
    • Compression height: 25.30 mm
    • Dome volume: +3.80 cm³
    • Recommended clearance: 0.06 mm
    • Stroke (engine reference): 58.00 mm
    • Displacement (cm³): 1165 / 1194 / 1224 / 1254 / 1315

    Cross-Reference OEM Part Numbers

    • Wössner K8530D400-4
    • Clip: CW20
    • Piston pin: WP029
    • Ring set: 820XSY

    Vehicle Fitments

    • Suzuki GSX-R1100 1989–1992
    • Suzuki GSF1200 Bandit 1989–1992
    • Suzuki GSX1100F Katana 1989–1992
