Name: Piston Kit 83-03 KX60 43.00, Wossner 8232DA Kawasaki MX 13001-1536
Brand: Wossner
SKU: 56-W648.A.WO
Price: 97.74 GBP

Piston Kit 83-03 KX60 43.00, Wossner 8232DA Kawasaki MX 13001-1536

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

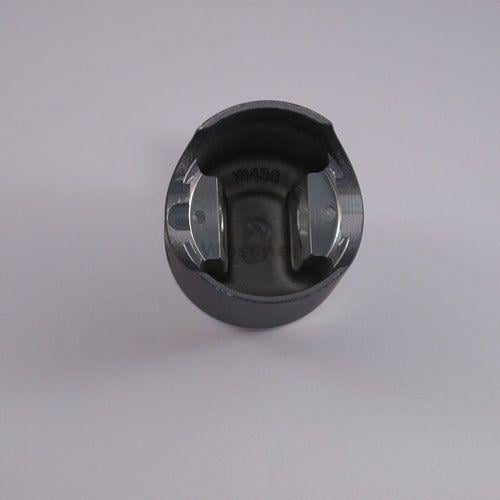

Wossner Piston Kit 8232DA is a standard-size forged piston developed for Kawasaki KX60 models from 1983 to 2003, with a 43.00mm bore. Engineered and manufactured in Germany, this piston is designed for strength, thermal stability, and optimal performance. Its elliptical geometry evenly distributes thrust loads under thermal expansion, reducing localised stress and enhancing durability.

Features

Forged piston design for maximum durability and performance
Elliptical profile minimises stress and prevents piston collapse under heat expansion
Provides efficient heat transfer to cylinder walls
German precision manufacturing

Specifications

Bore: 43.00 mm
Actual Piston Diameter: 42.95 mm
Stroke: 41.60 mm
Displacement: 60 cm³
Clearance: 0.05 mm
Compression Height: 23.50 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8232DA
Lock: CW12
Pin: WP091
Ring Set: RSB4300
Rod: P2001
Internal Part No: 56-W648.A.WO
OEM: 13001-1536
Alternate Part Number: 648M04300

Vehicle Fitments

1983 Kawasaki KX60
1984 Kawasaki KX60
1985 Kawasaki KX60
1986 Kawasaki KX60
1987 Kawasaki KX60
1988 Kawasaki KX60
1989 Kawasaki KX60
1990 Kawasaki KX60
1991 Kawasaki KX60
1992 Kawasaki KX60
1993 Kawasaki KX60
1994 Kawasaki KX60
1995 Kawasaki KX60
1996 Kawasaki KX60
1997 Kawasaki KX60

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
KAWASAKI	KX 60	1983-2003
KAWASAKI	KX 60	1985-2003
KAWASAKI	KX 60	1983-2004
SUZUKI	RM 60	2003-2005

Piston Kit 83-03 KX60 43.00, Wossner 8232DA Kawasaki MX 13001-1536

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Piston Kit 8232DA is a standard-size forged piston developed for Kawasaki KX60 models from 1983 to 2003, with a... Read more

Out of stock

£97.74 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W648.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Piston Kit 8232DA is a standard-size forged piston developed for Kawasaki KX60 models from 1983 to 2003, with a 43.00mm bore. Engineered and manufactured in Germany, this piston is designed for strength, thermal stability, and optimal performance. Its elliptical geometry evenly distributes thrust loads under thermal expansion, reducing localised stress and enhancing durability.

Features

Forged piston design for maximum durability and performance
Elliptical profile minimises stress and prevents piston collapse under heat expansion
Provides efficient heat transfer to cylinder walls
German precision manufacturing

Specifications

Bore: 43.00 mm
Actual Piston Diameter: 42.95 mm
Stroke: 41.60 mm
Displacement: 60 cm³
Clearance: 0.05 mm
Compression Height: 23.50 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8232DA
Lock: CW12
Pin: WP091
Ring Set: RSB4300
Rod: P2001
Internal Part No: 56-W648.A.WO
OEM: 13001-1536
Alternate Part Number: 648M04300

Vehicle Fitments

1983 Kawasaki KX60
1984 Kawasaki KX60
1985 Kawasaki KX60
1986 Kawasaki KX60
1987 Kawasaki KX60
1988 Kawasaki KX60
1989 Kawasaki KX60
1990 Kawasaki KX60
1991 Kawasaki KX60
1992 Kawasaki KX60
1993 Kawasaki KX60
1994 Kawasaki KX60
1995 Kawasaki KX60
1996 Kawasaki KX60
1997 Kawasaki KX60

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 60	2003
KAWASAKI	KX 60	1983-2003
KAWASAKI	KX 60	1985-2003
KAWASAKI	KX 60	1983-2004
SUZUKI	RM 60	2003-2005
