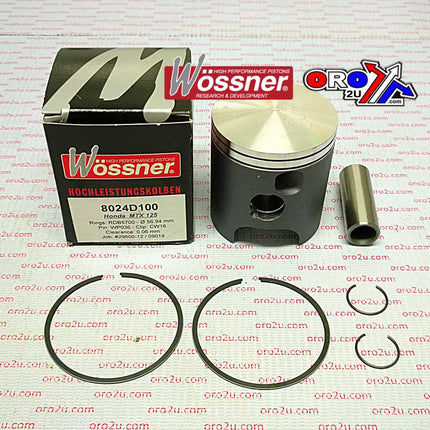

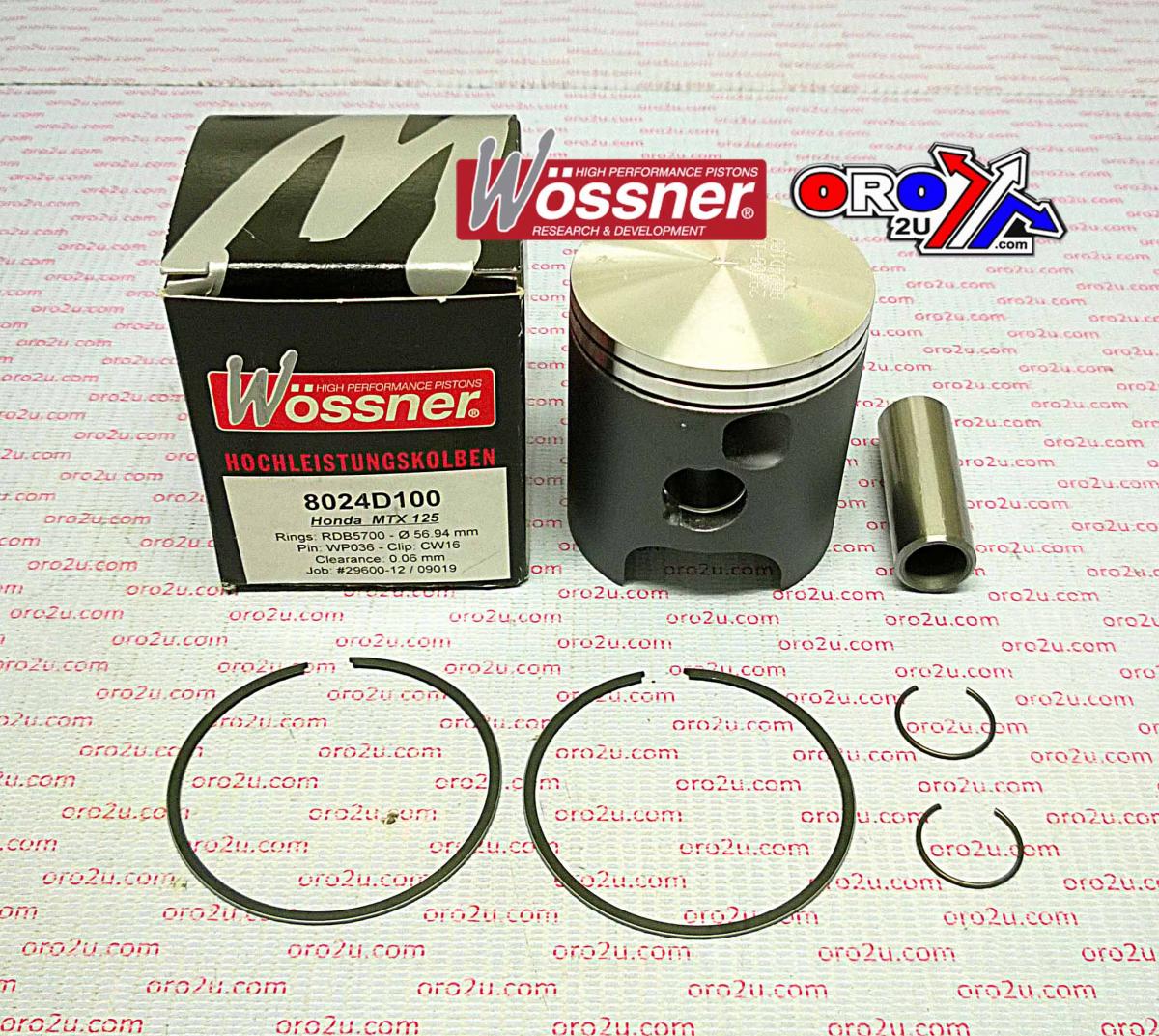

Name: Piston Kit 83-87 MTX125 56.50, Wossner 8024D050 Honda Road
Brand: Wossner
SKU: 56-W903+050.WO

Piston Kit 83-87 MTX125 56.50, Wossner 8024D050 Honda Road

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

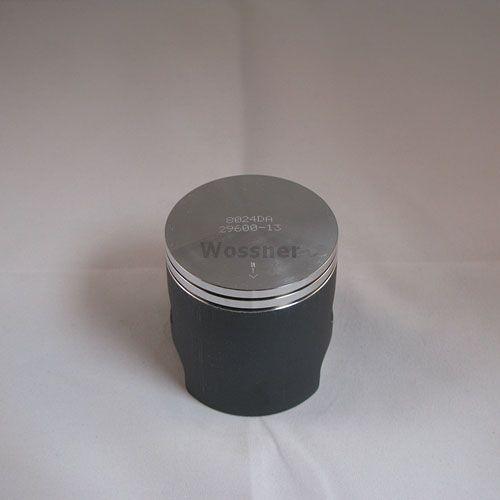

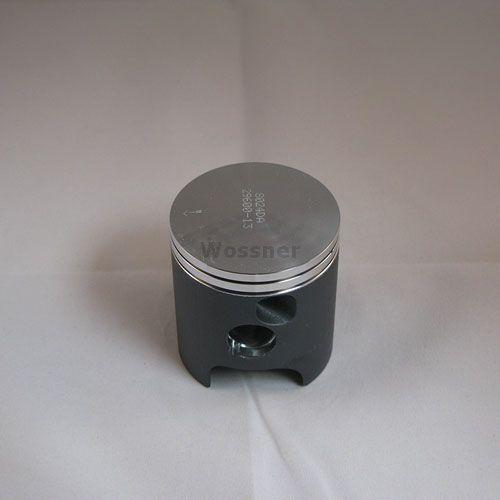

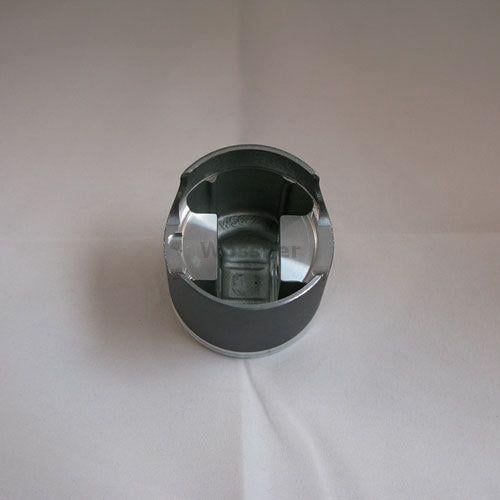

Wossner forged piston kit 8024D050 is an oversized (+0.50mm) solution for Honda MBX125 and MTX125 models from 1983 to 1987. With a 56.50mm bore and precision engineering, it is designed to withstand high-performance demands while ensuring reliable combustion and thermal management. Manufactured in Germany, this kit upholds Wossner's standards for durability and design accuracy.

Features

Forged construction offers enhanced strength and resistance to wear
Elliptical profile enables uniform load distribution under heat expansion
Superior heat transfer from combustion chamber to cylinder walls
Reduces localised pressure to help prevent piston collapse
Made in Germany

Specifications

Bore: 56.50mm (Measured: 56.44mm)
Display Volume: 124 cm³
Stroke: 50.60mm
Clearance: 0.06mm
Compression Height: 30.40mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Part No.: 56-W903+050.WO (Wossner Piston Honda MBX125 56.50 mm Bore, PN# 8024D050)
Lock P/N: CW16
Pin P/N: WP036
Ring Set P/N: RSB5650 x 2

Cross-Reference OEM Part Numbers

Not provided

Vehicle Fitments

1983 Honda MBX 125
1983 Honda MTX 125
1984 Honda MBX 125
1984 Honda MTX 125
1985 Honda MBX 125
1985 Honda MTX 125
1986 Honda MBX 125
1986 Honda MTX 125
1987 Honda MBX 125
1987 Honda MTX 125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	MTX 125	1983-1987
HONDA	MBX 125	1983-1987
