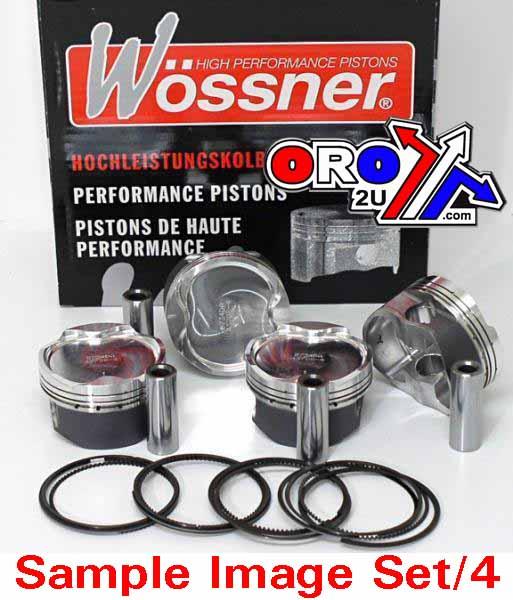

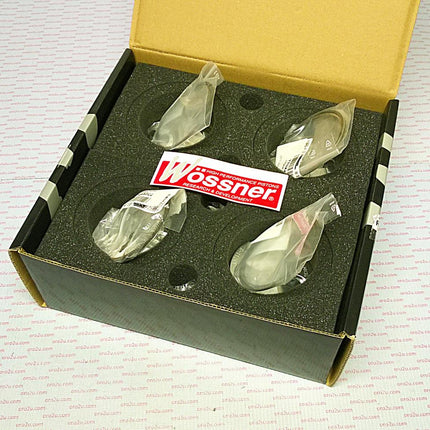

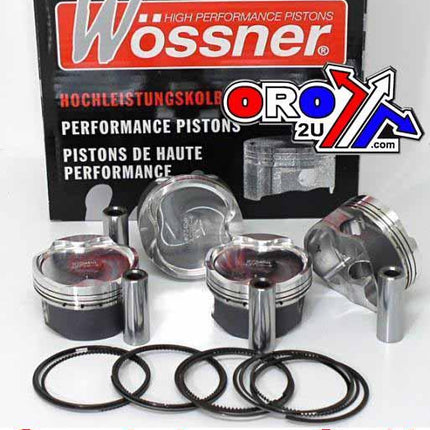

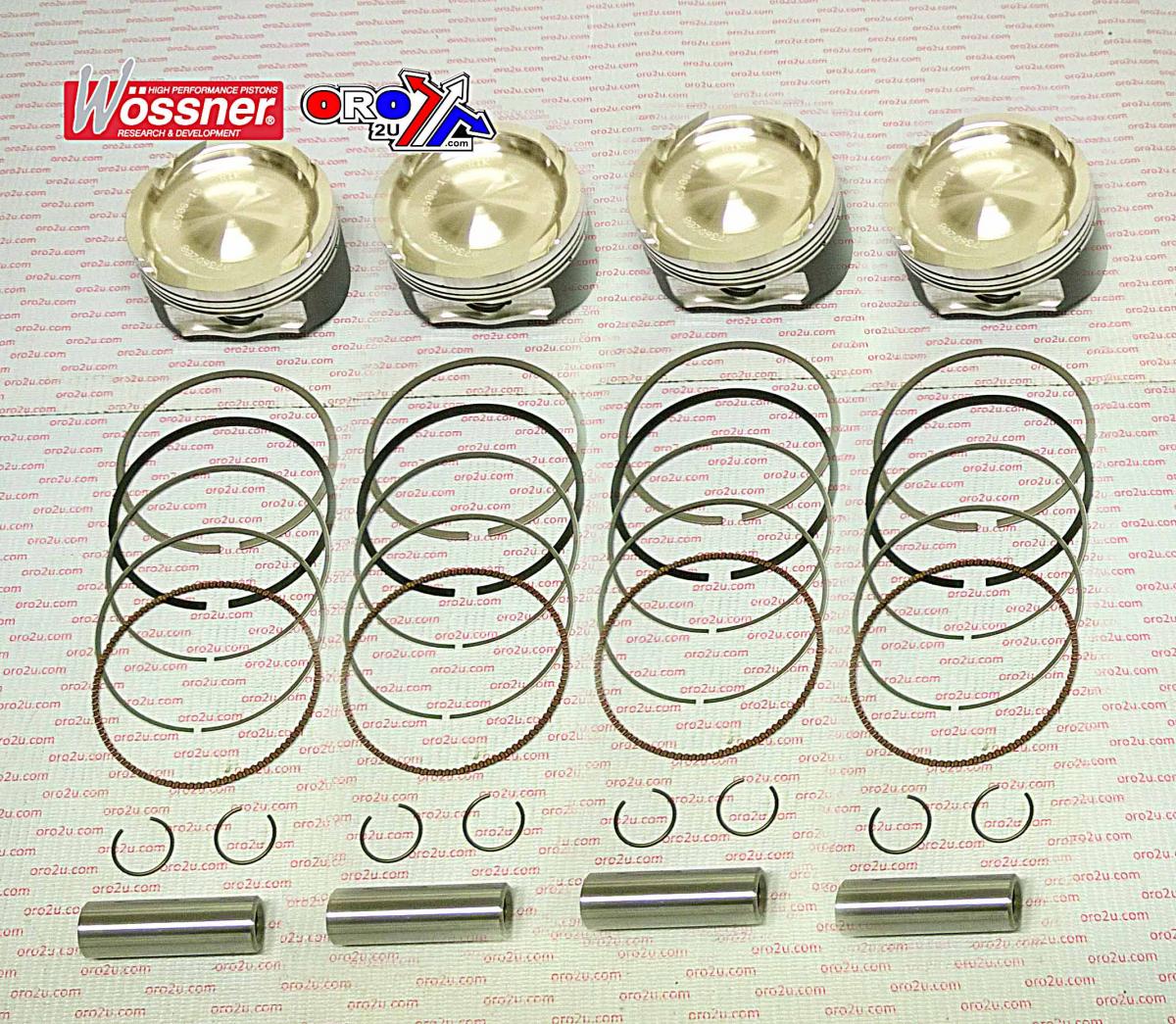

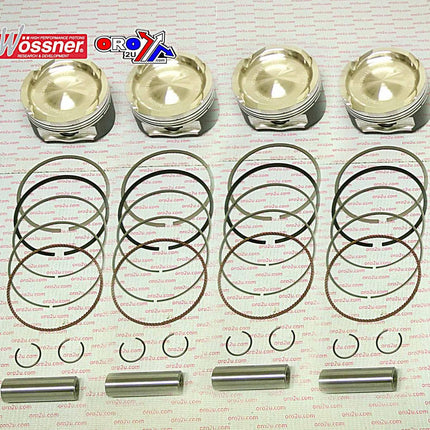

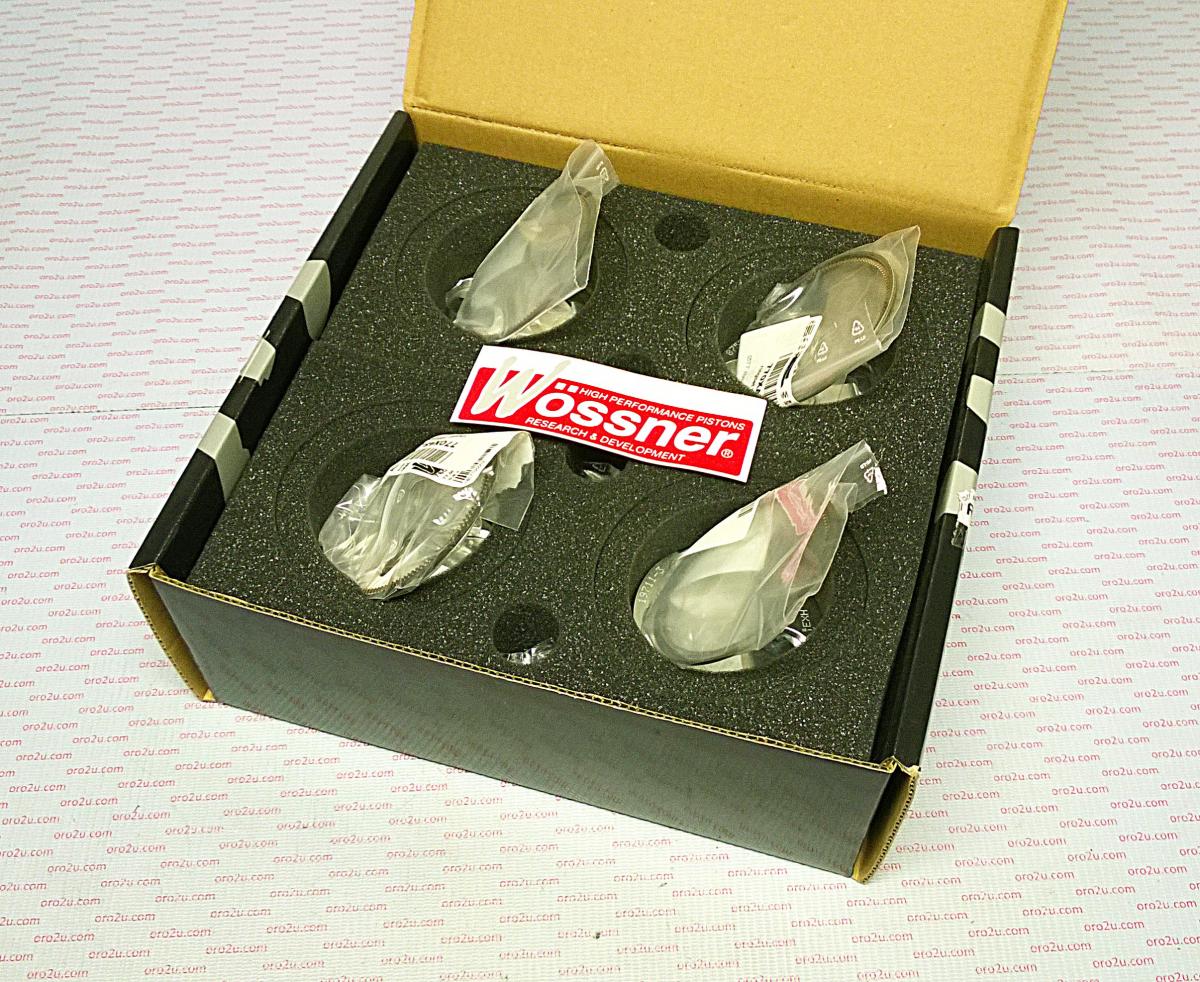

Name: Piston Kit 83mm SET/4 2008-ON Suzuki Hayabusa Turbo Wossner K8736D200-4
Brand: Wossner
SKU: 56-W9896.200.WO

Piston Kit 83mm SET/4 2008-ON Suzuki Hayabusa Turbo Wossner K8736D200-4

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

This piston kit is designed for turbocharged Suzuki Hayabusa models from 2008 onwards. It features forged Wossner pistons engineered for high-performance applications, delivering excellent heat transfer and structural integrity. The pistons are elliptical in design to optimise load distribution and prevent collapse under high stress. Manufactured in Germany, this +2mm oversized set increases engine displacement to 1406cc.

Features

Set of 4 forged Wossner pistons
+2.00mm oversized (83.00mm bore)
Elliptical shape for improved bearing surface and thrust load distribution
Engineered for superior heat transfer to cylinder walls
Designed to withstand high-performance turbo applications
Made in Germany

Specifications

Part Number: K8736D200-4
Bore Size: 83.00mm (actual piston size 82.92mm)
Displacement: 1406cc
Original Display (cm³): 1340 / 1406
Stroke: 65.00mm
Clearance: 0.08mm
Wossner Compression Ratio: 9.00:1
OEM Compression Ratio: 12.50:1
Dome Volume: -19.40cm³
Compression Height: 24.00mm

Cross-Reference OEM Part Numbers

Clip: CW18
Piston Pin: WP064
Replacement Ring Set: RIK83.00A
Wossner: K8736D200-4

Vehicle Fitments

Suzuki Hayabusa Turbo 2008-On

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	GSX R HAYABUSA 1300	2008-2015
