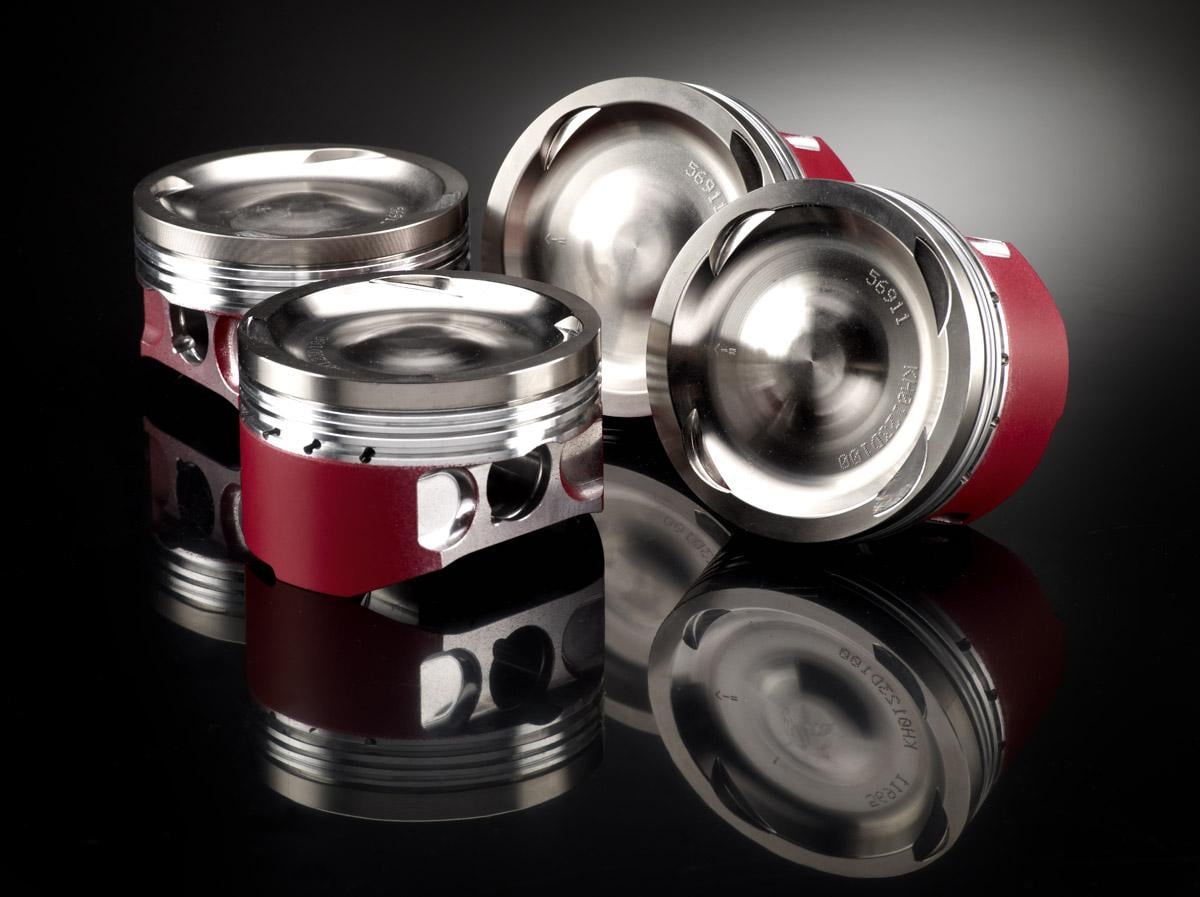

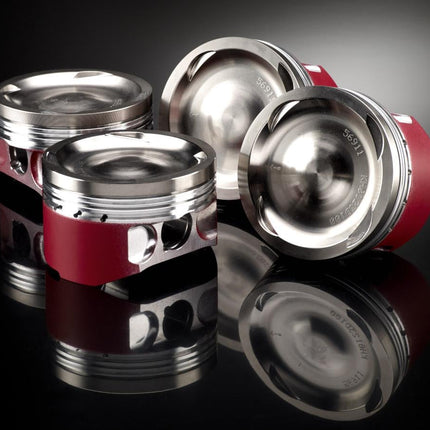

Piston Kit 84 SET/4 1999-2007 Suzuki Hayabusa Hc Wossner K8730D300-4

Description

Forged piston kit set of four from the Pro Series with a +3.00 mm oversize (84.00 mm bore) and high-compression crown, engineered for performance applications. The elliptical design promotes uniform load distribution during thermal expansion, aiding durability under high-demand conditions. Manufactured in Germany.

Features

  • Set of four forged pistons (Pro Series)
  • +3.00 mm oversized bore (84.00 mm, actual piston diameter 83.95 mm)
  • Three-ring configuration
  • Elliptical design for uniform bearing surface and improved thrust load distribution
  • Enhanced heat dissipation for thermal stability
  • Manufactured in Germany

Specifications

  • Bore size: 84.00 mm (actual piston size 83.95 mm)
  • Oversize: +3.00 mm
  • Displacement range: 1299 / 1395 / 1429 cm³
  • Stroke: 63.00 mm
  • Clearance: 0.05 mm
  • Compression ratio (Wössner): 13.50:1
  • OEM compression ratio (reference): 11.00:1
  • Dome volume: −2.45 cm³
  • Compression height: 25.10 mm

Cross-Reference OEM Part Numbers

  • Piston kit reference: K8730D300-4
  • Clip: CW20
  • Piston pin: WP029
  • Replacement ring set: RIK84.00B

Vehicle Fitments

  • Suzuki Hayabusa 1999–2007

Piston Kit 84 SET/4 1999-2007 Suzuki Hayabusa Hc Wossner K8730D300-4

Product form

Forged piston kit set of four from the Pro Series with a +3.00 mm oversize (84.00 mm bore) and high-compression... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9897.300.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Forged piston kit set of four from the Pro Series with a +3.00 mm oversize (84.00 mm bore) and high-compression crown, engineered for performance applications. The elliptical design promotes uniform load distribution during thermal expansion, aiding durability under high-demand conditions. Manufactured in Germany.

    Features

    • Set of four forged pistons (Pro Series)
    • +3.00 mm oversized bore (84.00 mm, actual piston diameter 83.95 mm)
    • Three-ring configuration
    • Elliptical design for uniform bearing surface and improved thrust load distribution
    • Enhanced heat dissipation for thermal stability
    • Manufactured in Germany

    Specifications

    • Bore size: 84.00 mm (actual piston size 83.95 mm)
    • Oversize: +3.00 mm
    • Displacement range: 1299 / 1395 / 1429 cm³
    • Stroke: 63.00 mm
    • Clearance: 0.05 mm
    • Compression ratio (Wössner): 13.50:1
    • OEM compression ratio (reference): 11.00:1
    • Dome volume: −2.45 cm³
    • Compression height: 25.10 mm

    Cross-Reference OEM Part Numbers

    • Piston kit reference: K8730D300-4
    • Clip: CW20
    • Piston pin: WP029
    • Replacement ring set: RIK84.00B

    Vehicle Fitments

    • Suzuki Hayabusa 1999–2007
