Name: Piston Kit 86-09 KDX200 66.00, Wossner 8093DA Kawasaki MX 13001-1219
Brand: Wossner
SKU: 56-W597+P0.WO

Piston Kit 86-09 KDX200 66.00, Wossner 8093DA Kawasaki MX 13001-1219

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

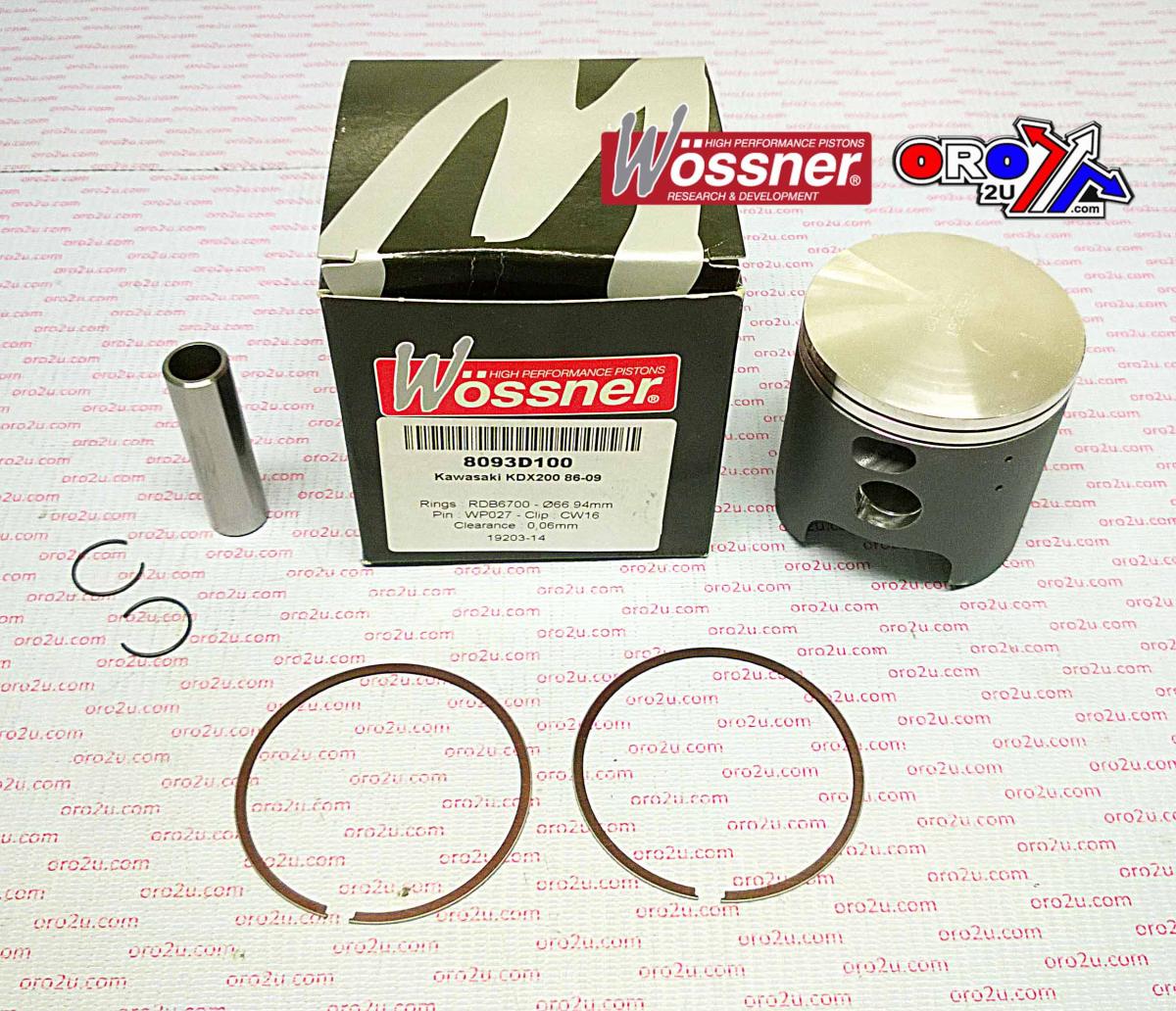

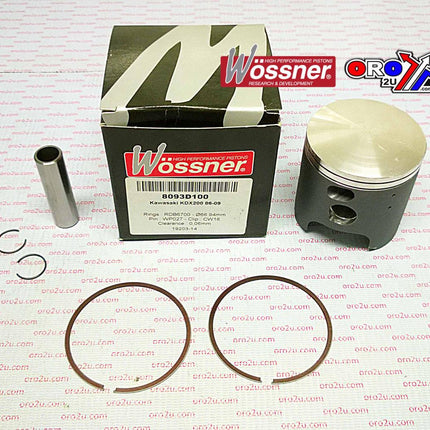

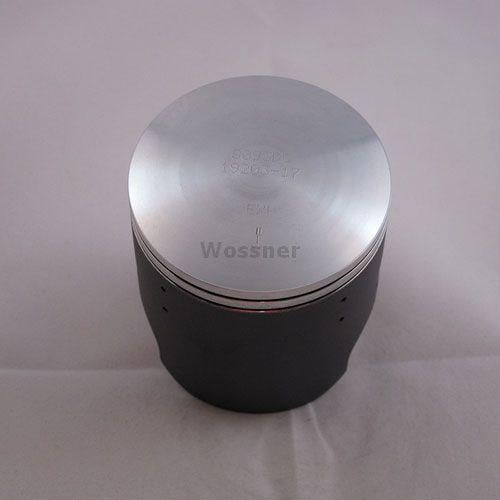

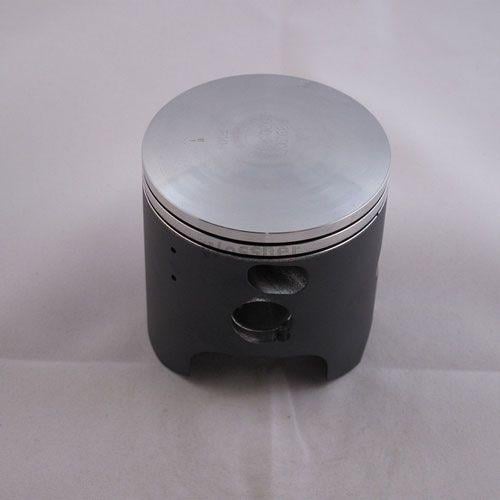

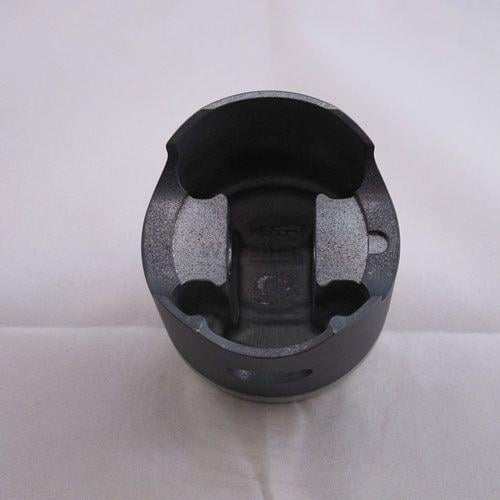

Wossner Forged Piston Kit 66.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is manufactured for Kawasaki KDX200 models produced from 1986 to 2006. With a standard bore of 66.00 mm and a piston diameter of 65.94 mm, this kit delivers durability and performance in demanding 2-stroke engine conditions. The forged aluminium construction and elliptical design allow for superior heat transfer and even load distribution. Made in Germany for precision and reliability.

Features

Forged aluminium piston for increased strength
High-efficiency combustion heat dissipation to cylinder walls
Elliptical geometry for consistent thrust load distribution and reduced stress
Precision-manufactured in Germany

Specifications

Bore Size: 66.00 mm
Piston Diameter: 65.94 mm
Engine Displacement: 198 cm³
Stroke: 58.00 mm
Clearance: 0.06 mm
Compression Height: 32.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

13001-1219
09104822
711M06600

Cross-Reference Wossner Part Numbers

Piston Kit: 8093DA
Lock: CW16
Pin: WP027
Ring Set: RSB6600 x 2
Rod: P2033

Vehicle Fitments

1986 Kawasaki KDX 200
1987 Kawasaki KDX 200
1988 Kawasaki KDX 200
1989 Kawasaki KDX 200
1990 Kawasaki KDX 200
1991 Kawasaki KDX 200
1992 Kawasaki KDX 200
1993 Kawasaki KDX 200
1994 Kawasaki KDX 200
1995 Kawasaki KDX 200
1996 Kawasaki KDX 200
1997 Kawasaki KDX 200
1998 Kawasaki KDX 200
1998 Kawasaki KDX 220
1999 Kawasaki KDX 200
2000–2006 Kawasaki KDX 200

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KDX 200	1986-2006
KAWASAKI	KDX 200	1986-2009
