Description

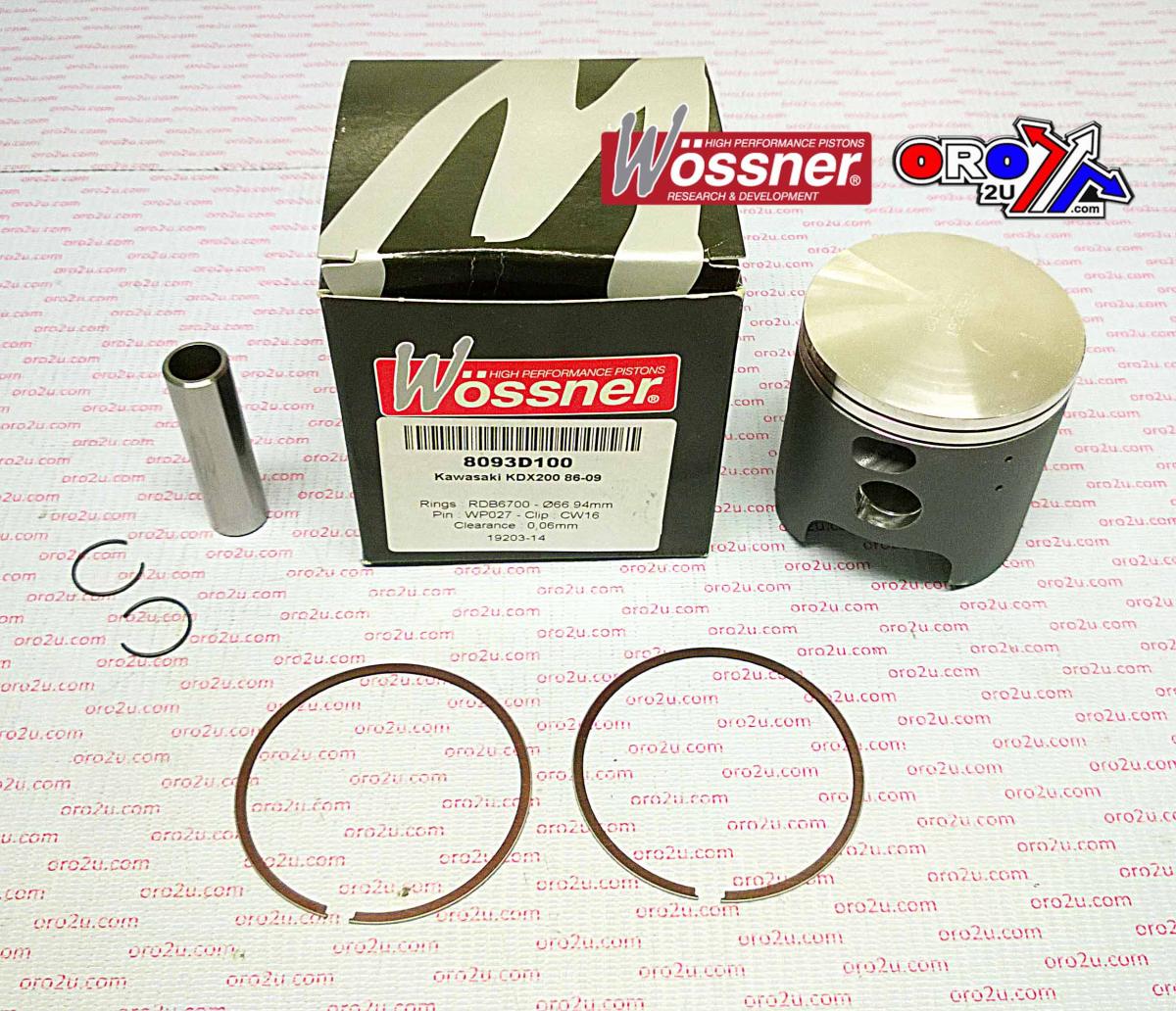

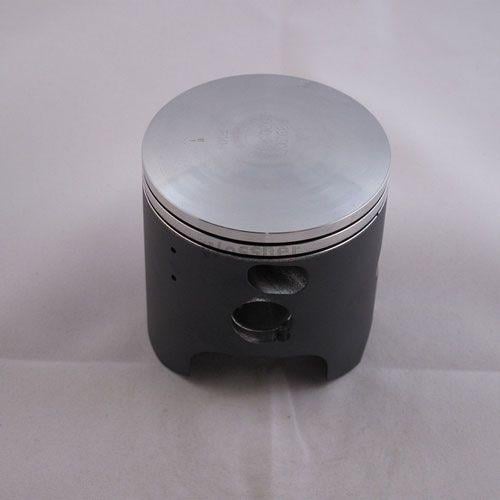

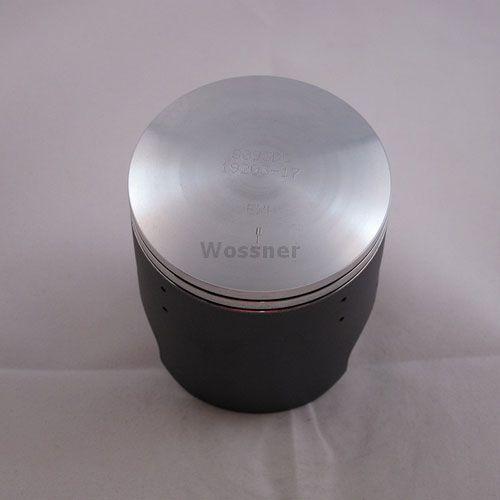

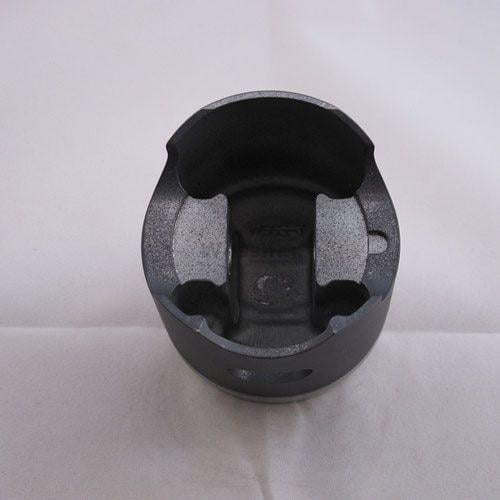

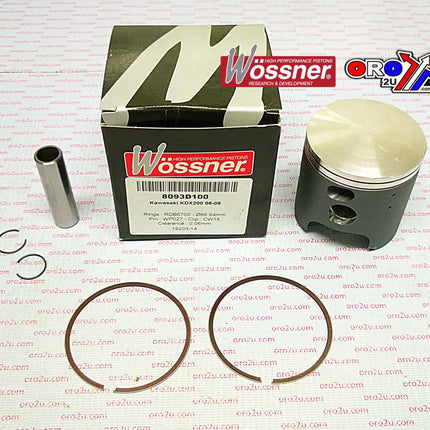

Wossner Forged Piston Kit 66.50mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit features a 66.50 mm bore with a piston diameter of 66.44 mm, intended for Kawasaki KDX200 models from 1986 to 2006. Precision-forged and engineered for optimal performance in 2-stroke engines, it provides excellent heat transfer and superior durability. The elliptical piston design supports uniform load distribution under high thermal stress, reducing wear and minimising the risk of piston failure. Manufactured in Germany.

Features

Forged piston design for enhanced strength and longevity
Efficient thermal transfer from combustion chamber to cylinder walls
Elliptical profile ensures even thrust load distribution under heat expansion
Manufactured in Germany for precision and performance

Specifications

Bore Size: 66.50 mm
Piston Diameter: 66.44 mm
Engine Displacement: 198 cm³
Stroke: 58.00 mm
Clearance: 0.06 mm
Compression Height: 32.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Not specified in provided data

Cross-Reference Wossner Part Numbers

Piston Kit: 8093D050
Lock: CW16
Pin: WP027
Ring Set: RSB6650 x 2
Rod: P2033

Vehicle Fitments

1986 Kawasaki KDX 200
1987 Kawasaki KDX 200
1988 Kawasaki KDX 200
1989 Kawasaki KDX 200
1990 Kawasaki KDX 200
1991 Kawasaki KDX 200
1992 Kawasaki KDX 200
1993 Kawasaki KDX 200
1994 Kawasaki KDX 200
1995 Kawasaki KDX 200
1996 Kawasaki KDX 200
1997 Kawasaki KDX 200
1998 Kawasaki KDX 200
1998 Kawasaki KDX 220
1999 Kawasaki KDX 200
2000–2006 Kawasaki KDX 200

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KDX 200	1986-2006
KAWASAKI	KDX 200	1986-2009
