Name: Piston Kit 86-09 KDX200 67.00, Wossner 8093D100 Kawasaki MX
Brand: Wossner
SKU: 56-W597+P4.WO

Piston Kit 86-09 KDX200 67.00, Wossner 8093D100 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

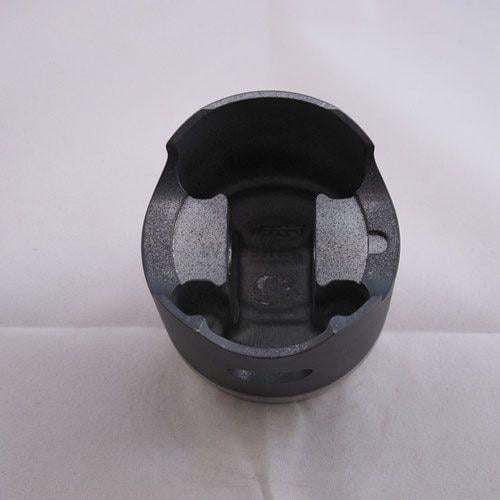

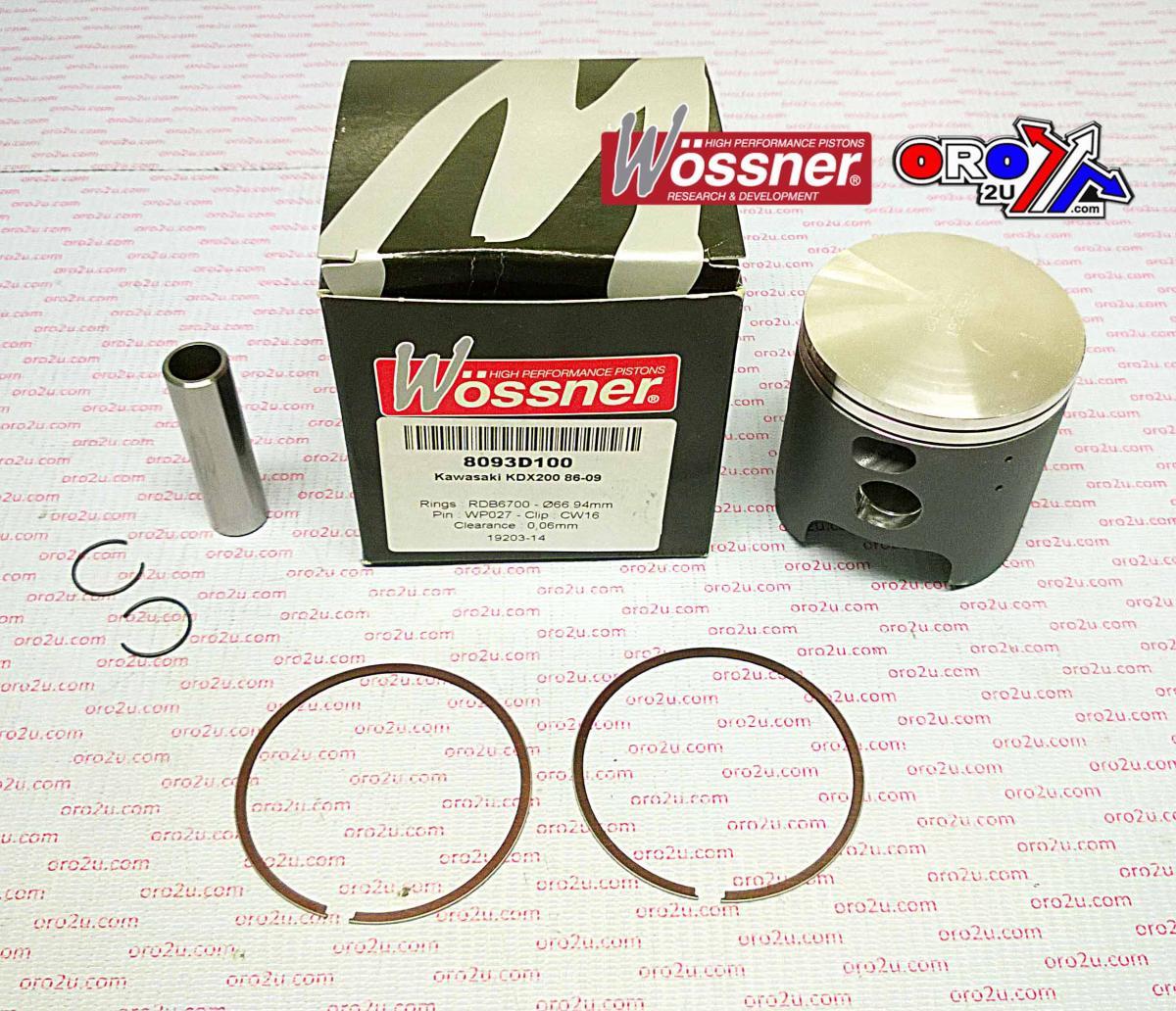

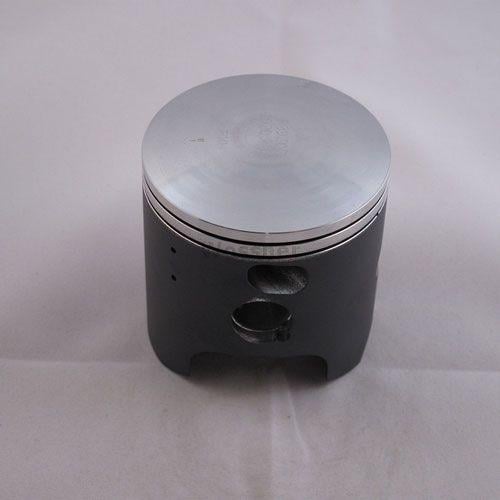

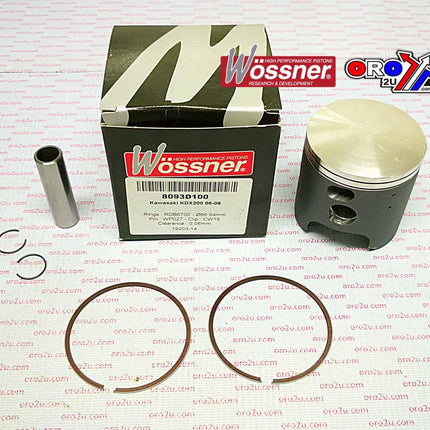

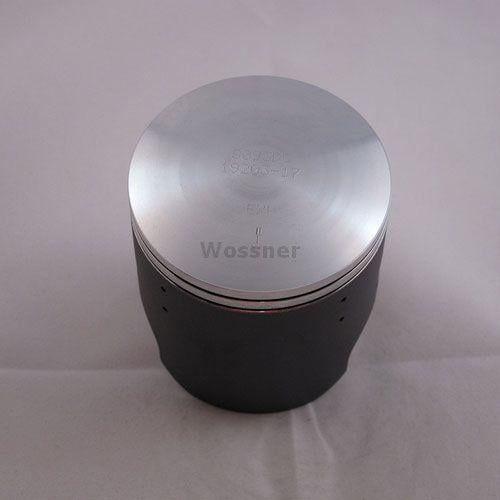

Wossner Forged Piston Kit 67.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is designed for Kawasaki KDX200 models from 1986 to 2006, featuring a 67.00 mm bore and a piston diameter of 66.94 mm (+1.00 mm oversize). Engineered for high-performance 2-stroke applications, the piston’s elliptical design and precision forging ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Made in Germany for accuracy and durability.

Features

Forged piston construction for superior strength
Efficient combustion heat dissipation to cylinder walls
Elliptical design supports even thrust load distribution and minimises pressure points
Precision manufactured in Germany

Specifications

Bore Size: 67.00 mm
Piston Diameter: 66.94 mm
Engine Displacement: 198 cm³
Stroke: 58.00 mm
Clearance: 0.06 mm
Compression Height: 32.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

Piston Kit: 8093D100
Lock: CW16
Pin: WP027
Ring Set: RSB6700 x 2
Rod: P2033

Vehicle Fitments

1986 Kawasaki KDX 200
1987 Kawasaki KDX 200
1988 Kawasaki KDX 200
1989 Kawasaki KDX 200
1990 Kawasaki KDX 200
1991 Kawasaki KDX 200
1992 Kawasaki KDX 200
1993 Kawasaki KDX 200
1994 Kawasaki KDX 200
1995 Kawasaki KDX 200
1996 Kawasaki KDX 200
1997 Kawasaki KDX 200
1998 Kawasaki KDX 200
1998 Kawasaki KDX 220
1999 Kawasaki KDX 200
2000–2006 Kawasaki KDX 200

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KDX 200	1986-2006
KAWASAKI	KDX 200	1986-2009
