Name: Piston Kit 87-88 RM250 67.00, Wossner 8157DA Suzuki MX 12110-00B24-0F0
Brand: Wossner
SKU: 56-W558+000.WO

Piston Kit 87-88 RM250 67.00, Wossner 8157DA Suzuki MX 12110-00B24-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

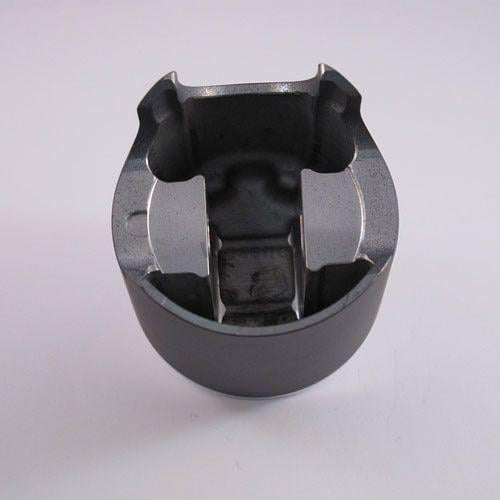

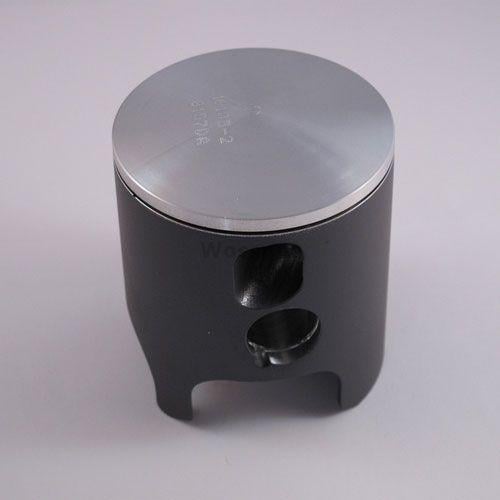

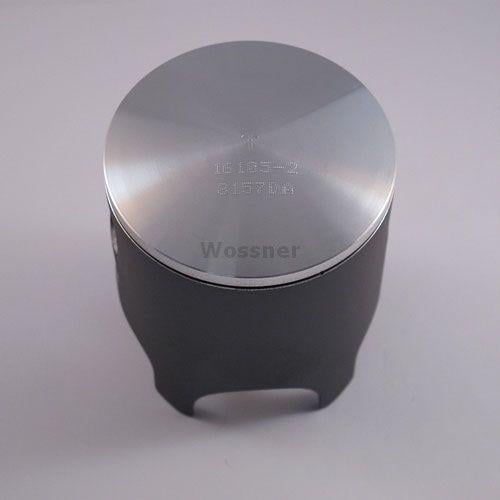

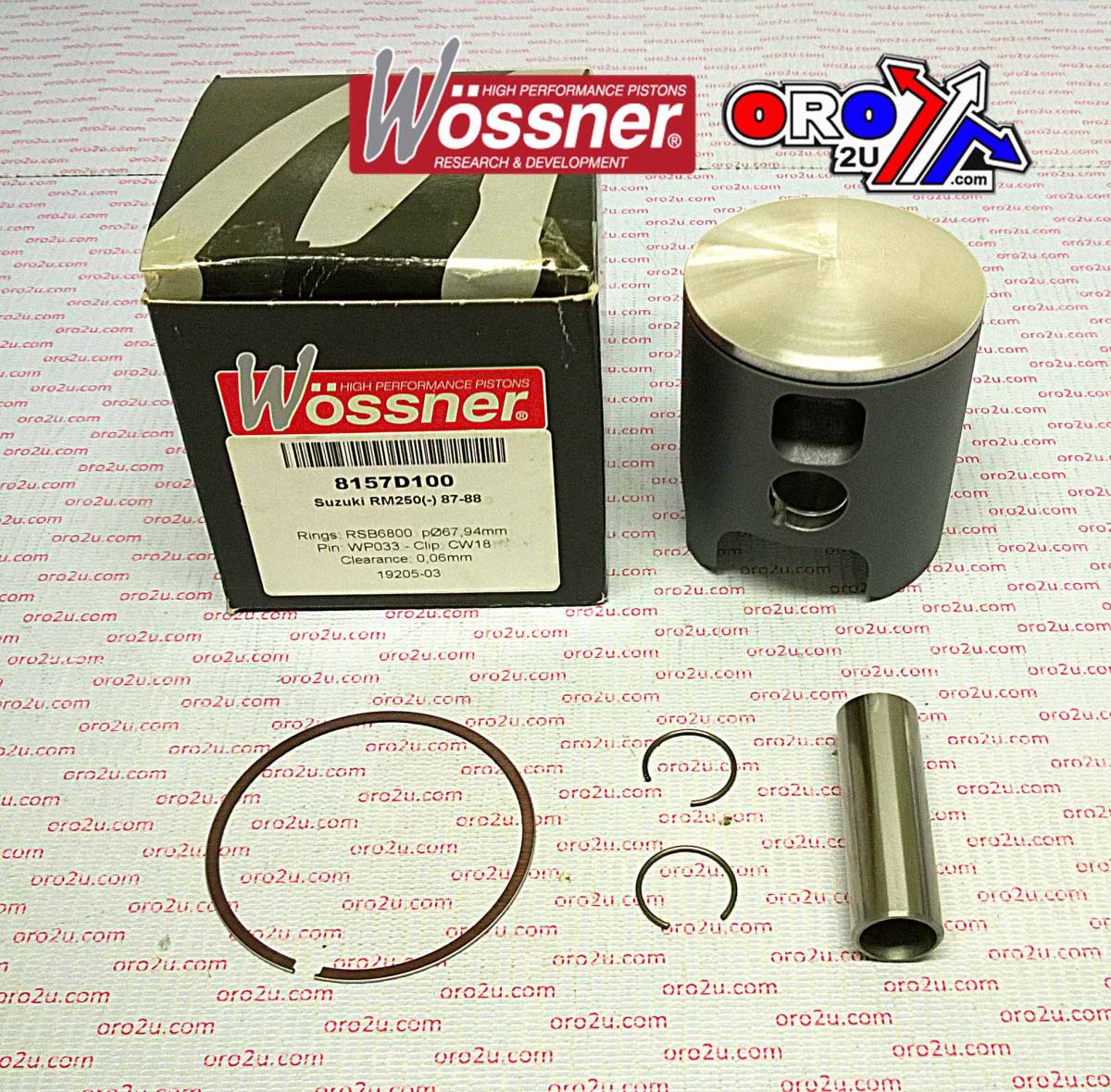

This Wossner 67.00mm standard bore forged piston kit is designed for the Suzuki RM250 models from 1987 to 1988. Engineered for two-stroke applications, the piston features a forged construction and elliptical profile to enhance thermal expansion control, strength, and even thrust load distribution. Manufactured in Germany, it promotes efficient heat transfer from the combustion chamber to the cylinder walls for reliable performance under demanding conditions.

Features

Forged piston construction for improved strength and reliability
Elliptical design provides a uniform bearing surface during heat expansion
Even distribution of thrust loads reduces localised stress and risk of piston collapse
Designed for efficient combustion heat transfer to the cylinder walls
Manufactured in Germany

Specifications

Bore: 67.00mm
Actual diameter: 66.94mm
Displacement: 246 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W558+000.WO
Wossner Piston Kit No.: 8157DA
Lock: CW18
Pin: WP033
Ring Set: RSB6700
OEM Reference: 12110-00B24-0F0
Additional Reference: 558M06700

Vehicle Fitments

Suzuki RM250 1987
Suzuki RM250 1988

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	1987-1988

Piston Kit 87-88 RM250 67.00, Wossner 8157DA Suzuki MX 12110-00B24-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner 67.00mm standard bore forged piston kit is designed for the Suzuki RM250 models from 1987 to 1988. Engineered... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W558+000.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner 67.00mm standard bore forged piston kit is designed for the Suzuki RM250 models from 1987 to 1988. Engineered for two-stroke applications, the piston features a forged construction and elliptical profile to enhance thermal expansion control, strength, and even thrust load distribution. Manufactured in Germany, it promotes efficient heat transfer from the combustion chamber to the cylinder walls for reliable performance under demanding conditions.

Features

Forged piston construction for improved strength and reliability
Elliptical design provides a uniform bearing surface during heat expansion
Even distribution of thrust loads reduces localised stress and risk of piston collapse
Designed for efficient combustion heat transfer to the cylinder walls
Manufactured in Germany

Specifications

Bore: 67.00mm
Actual diameter: 66.94mm
Displacement: 246 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W558+000.WO
Wossner Piston Kit No.: 8157DA
Lock: CW18
Pin: WP033
Ring Set: RSB6700
OEM Reference: 12110-00B24-0F0
Additional Reference: 558M06700

Vehicle Fitments

Suzuki RM250 1987
Suzuki RM250 1988

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 250	1987-1988
