Name: Piston Kit 87-89 KX250 67.40, Wossner 8129DA Kawasaki MX 13001-1246
Brand: Wossner
SKU: 56-W556+000.WO

Piston Kit 87-89 KX250 67.40, Wossner 8129DA Kawasaki MX 13001-1246

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

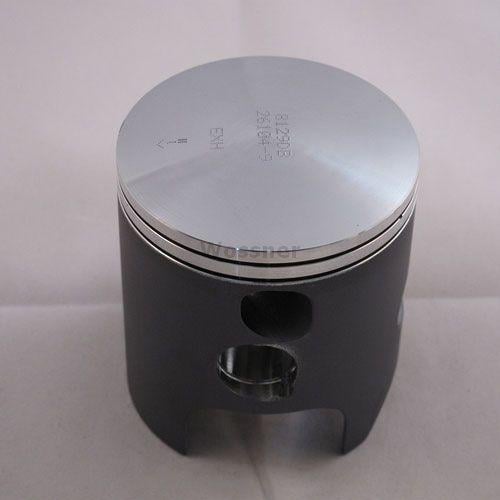

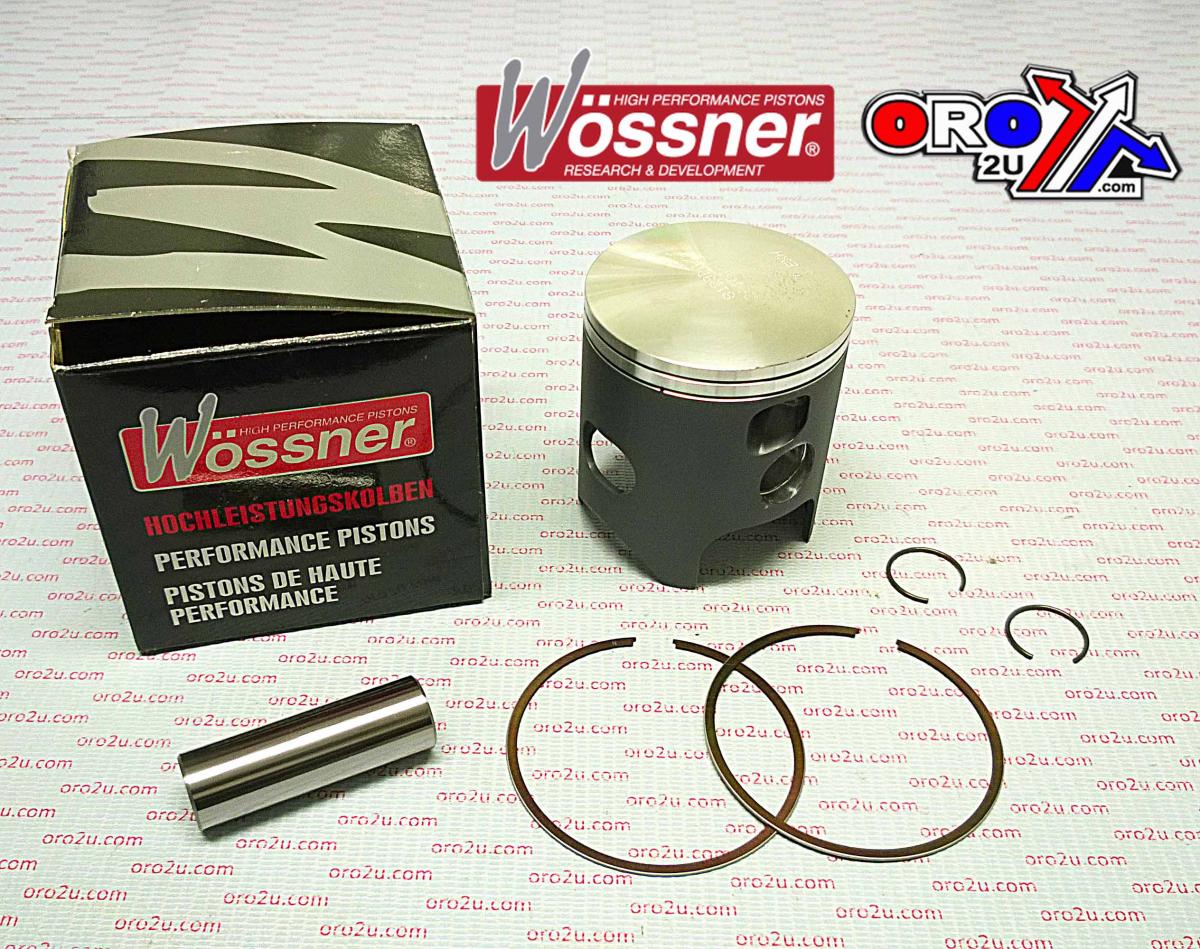

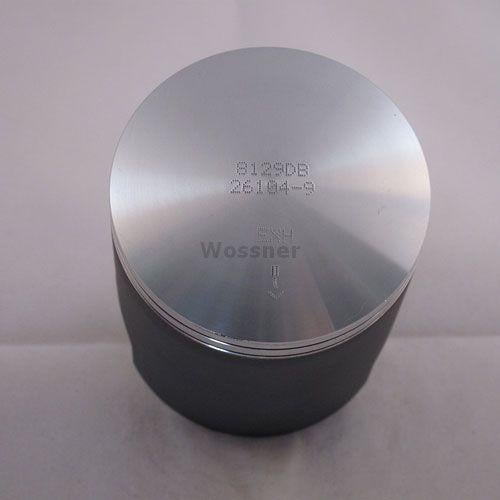

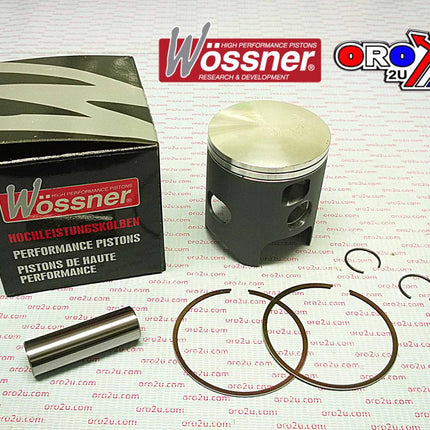

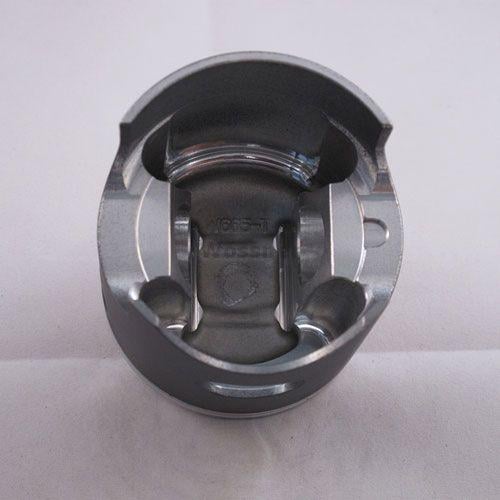

This Wossner 67.40mm standard bore forged piston kit is designed for use in Kawasaki KX250 models from 1987 to 1989. The piston features a forged construction with an elliptical design to manage heat expansion and load distribution effectively. Built for two-stroke applications, the kit supports efficient combustion heat transfer while maintaining structural reliability under demanding performance conditions. Manufactured in Germany, it includes all essential components for compatibility with the specified engine.

Features

Forged piston for superior strength and durability
Elliptical design allows for even bearing surface during thermal expansion
Distributes thrust loads to reduce localised pressure and prevent piston collapse
Engineered for efficient heat transfer from the combustion chamber to the cylinder walls
Manufactured in Germany

Specifications

Bore: 67.40mm
Actual diameter: 67.34mm
Displacement: 249 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W556+000.WO
Wossner Piston Kit No.: 8129DA
Lock: CW18
Pin: WP033
Ring Set: RSB6740 x 2
OEM Reference: 13001-1246
Additional Reference: 556M06740

Vehicle Fitments

Kawasaki KX250 1987
Kawasaki KX250 1988
Kawasaki KX250 1989

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KXF 250	1987-1988
KAWASAKI	KX 250	1987-1989

Piston Kit 87-89 KX250 67.40, Wossner 8129DA Kawasaki MX 13001-1246

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner 67.40mm standard bore forged piston kit is designed for use in Kawasaki KX250 models from 1987 to 1989.... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W556+000.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner 67.40mm standard bore forged piston kit is designed for use in Kawasaki KX250 models from 1987 to 1989. The piston features a forged construction with an elliptical design to manage heat expansion and load distribution effectively. Built for two-stroke applications, the kit supports efficient combustion heat transfer while maintaining structural reliability under demanding performance conditions. Manufactured in Germany, it includes all essential components for compatibility with the specified engine.

Features

Forged piston for superior strength and durability
Elliptical design allows for even bearing surface during thermal expansion
Distributes thrust loads to reduce localised pressure and prevent piston collapse
Engineered for efficient heat transfer from the combustion chamber to the cylinder walls
Manufactured in Germany

Specifications

Bore: 67.40mm
Actual diameter: 67.34mm
Displacement: 249 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W556+000.WO
Wossner Piston Kit No.: 8129DA
Lock: CW18
Pin: WP033
Ring Set: RSB6740 x 2
OEM Reference: 13001-1246
Additional Reference: 556M06740

Vehicle Fitments

Kawasaki KX250 1987
Kawasaki KX250 1988
Kawasaki KX250 1989

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KXF 250	1987-1988
KAWASAKI	KX 250	1987-1989
