Name: Piston Kit 87-89 KX250 69.00, Wossner 8129D160 Kawasaki MX
Brand: Wossner
SKU: 56-W556+160.WO

Piston Kit 87-89 KX250 69.00, Wossner 8129D160 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

This Wossner 69.00mm (+1.60 oversize) forged piston kit is designed for the Kawasaki KX250 models from 1987 to 1989. Engineered for two-stroke engines, it incorporates a forged construction and elliptical profile to enhance strength, thermal expansion management, and load distribution. Made in Germany, this piston enables effective combustion heat transfer, minimising the risk of structural failure under demanding conditions.

Features

Forged piston for high strength and durability
Elliptical design ensures even bearing surface under heat expansion
Distributes thrust loads uniformly to prevent localised pressure and piston collapse
Optimised for efficient heat transfer from combustion chamber to cylinder walls
Manufactured in Germany

Specifications

Bore: 69.00mm
Actual diameter: 68.94mm
Displacement: 249 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

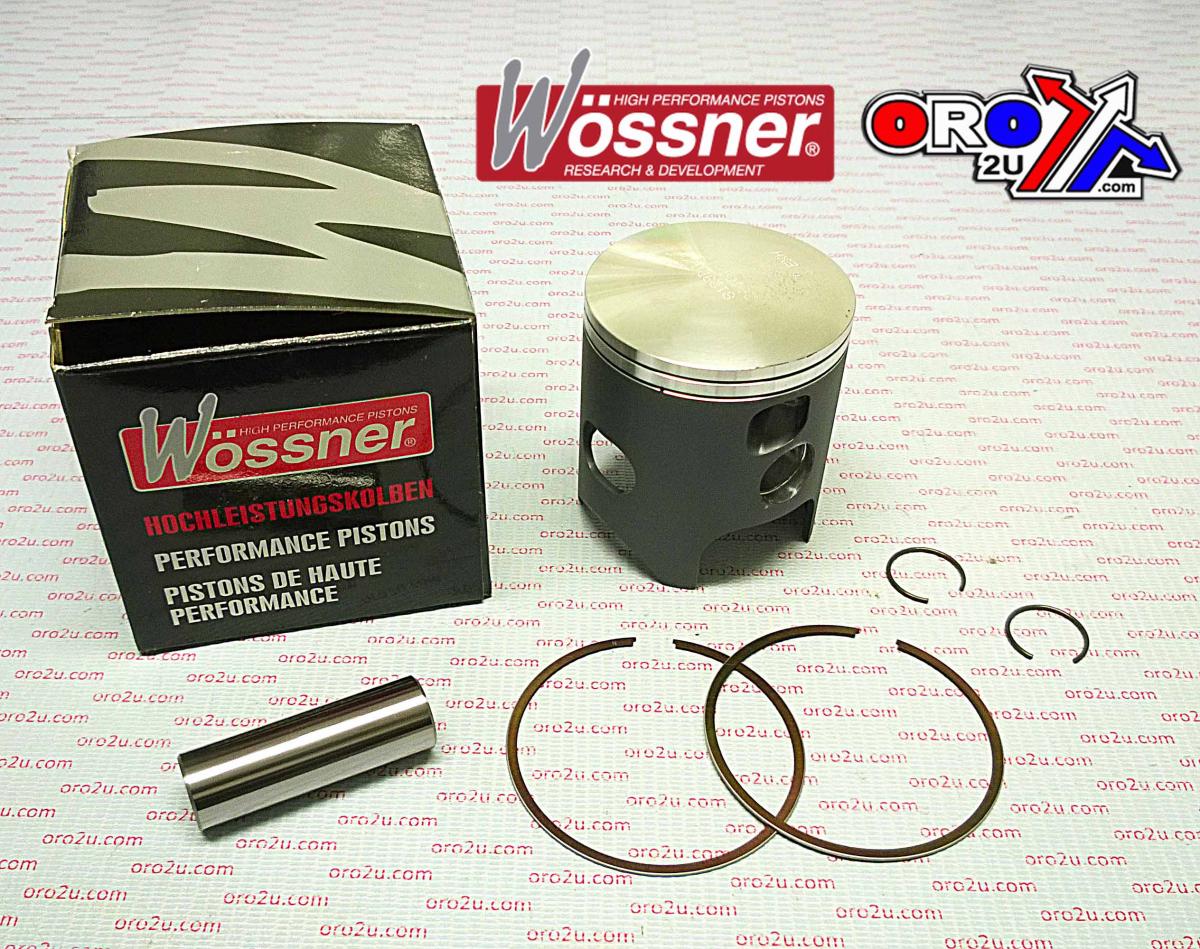

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W556+160.WO
Wossner Piston Kit No.: 8129D160
Lock: CW18
Pin: WP033
Ring Set: RSB6900 x 2

Vehicle Fitments

Kawasaki KX250 1987
Kawasaki KX250 1988
Kawasaki KX250 1989

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1987-1989

Piston Kit 87-89 KX250 69.00, Wossner 8129D160 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner 69.00mm (+1.60 oversize) forged piston kit is designed for the Kawasaki KX250 models from 1987 to 1989. Engineered... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W556+160.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner 69.00mm (+1.60 oversize) forged piston kit is designed for the Kawasaki KX250 models from 1987 to 1989. Engineered for two-stroke engines, it incorporates a forged construction and elliptical profile to enhance strength, thermal expansion management, and load distribution. Made in Germany, this piston enables effective combustion heat transfer, minimising the risk of structural failure under demanding conditions.

Features

Forged piston for high strength and durability
Elliptical design ensures even bearing surface under heat expansion
Distributes thrust loads uniformly to prevent localised pressure and piston collapse
Optimised for efficient heat transfer from combustion chamber to cylinder walls
Manufactured in Germany

Specifications

Bore: 69.00mm
Actual diameter: 68.94mm
Displacement: 249 cm³
Stroke: 70.00mm
Clearance: 0.06mm
Compression height: 37.00mm
Compression ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit Part No.: 56-W556+160.WO
Wossner Piston Kit No.: 8129D160
Lock: CW18
Pin: WP033
Ring Set: RSB6900 x 2

Vehicle Fitments

Kawasaki KX250 1987
Kawasaki KX250 1988
Kawasaki KX250 1989

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1987-1989
