Name: Piston Kit 88-00 KX80 48.00 A, Wossner 8197DA Kawasaki MX 13001-1259
Brand: Wossner
SKU: 56-W644+A.WO
Price: 106.01 GBP
Availability: InStock

Piston Kit 88-00 KX80 48.00 A, Wossner 8197DA Kawasaki MX 13001-1259

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

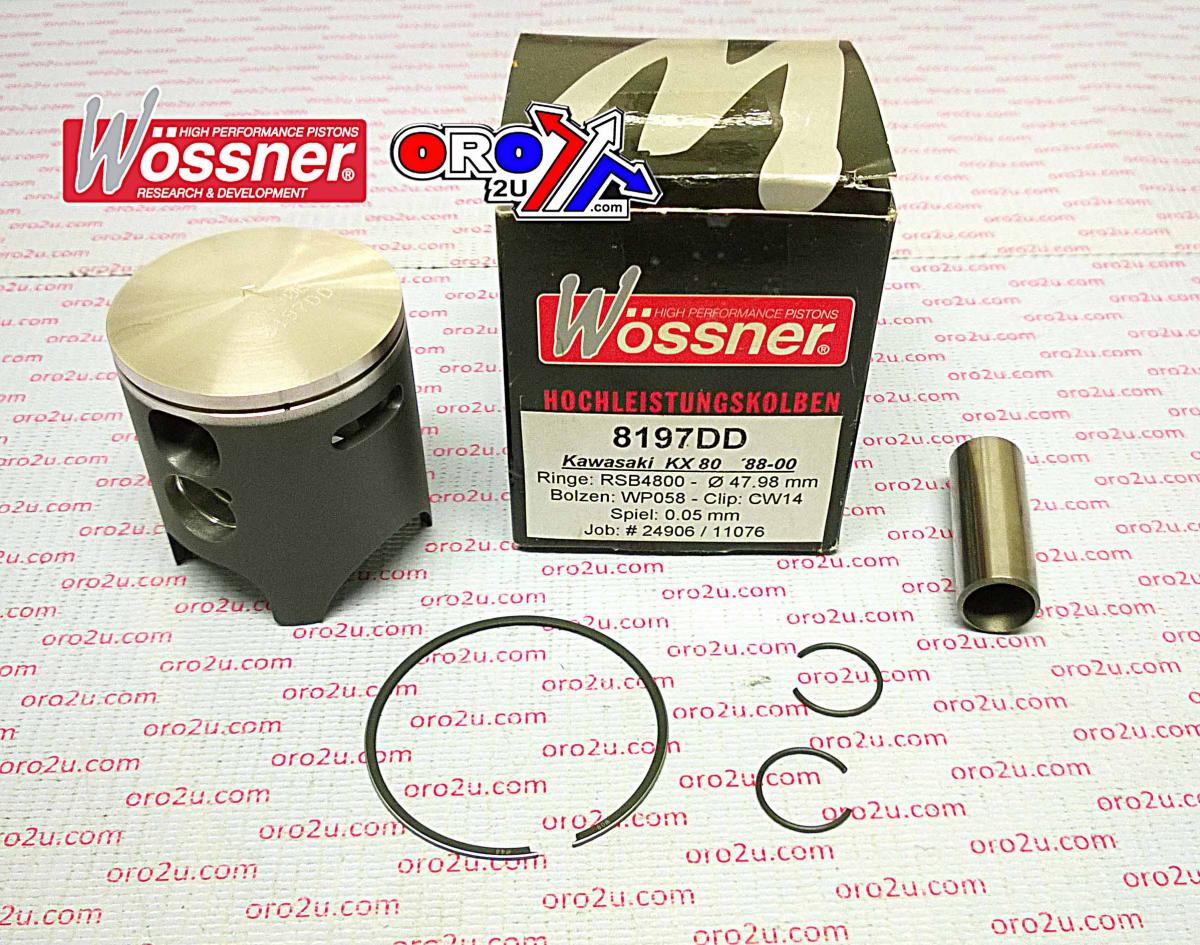

Wossner forged piston kit with a 48mm bore size (47.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit incorporates an elliptical design to ensure a more uniform bearing surface during heat expansion, improving heat transfer efficiency and distributing thrust loads evenly to prevent piston collapse.

Features

Forged piston construction for enhanced strength and reliability
Designed for efficient heat transfer from combustion chamber to cylinder walls
Elliptical shape promotes uniform bearing surfaces under thermal expansion
Reduces localised pressure and prevents piston collapse
Manufactured in Germany

Specifications

Bore Size: 48mm (actual 47.95mm)
Display Displacement: 80 cm³
Stroke: 45.80mm
Clearance: 0.05mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

Piston Kit: 8197DA
Lock: CW14
Pin: WP058
Ring Set: RSB4800
OEM Reference Numbers: 13001-1259, 644M04800

Vehicle Fitments

1994 Kawasaki KX80
1995 Kawasaki KX80
1996 Kawasaki KX80
1997 Kawasaki KX80
1998 Kawasaki KX80
1999 Kawasaki KX80
2000 Kawasaki KX80

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1988-2000

Piston Kit 88-00 KX80 48.00 A, Wossner 8197DA Kawasaki MX 13001-1259

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 48mm bore size (47.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to... Read more

1 in stock 1-2 business days

£106.01 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W644+A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 48mm bore size (47.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit incorporates an elliptical design to ensure a more uniform bearing surface during heat expansion, improving heat transfer efficiency and distributing thrust loads evenly to prevent piston collapse.

Features

Forged piston construction for enhanced strength and reliability
Designed for efficient heat transfer from combustion chamber to cylinder walls
Elliptical shape promotes uniform bearing surfaces under thermal expansion
Reduces localised pressure and prevents piston collapse
Manufactured in Germany

Specifications

Bore Size: 48mm (actual 47.95mm)
Display Displacement: 80 cm³
Stroke: 45.80mm
Clearance: 0.05mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

Piston Kit: 8197DA
Lock: CW14
Pin: WP058
Ring Set: RSB4800
OEM Reference Numbers: 13001-1259, 644M04800

Vehicle Fitments

1994 Kawasaki KX80
1995 Kawasaki KX80
1996 Kawasaki KX80
1997 Kawasaki KX80
1998 Kawasaki KX80
1999 Kawasaki KX80
2000 Kawasaki KX80

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1988-2000
