Name: Piston Kit 88-00 KX80 48.00 C, Wossner 8197DC Kawasaki MX
Brand: Wossner
SKU: 56-W644+C.WO

Piston Kit 88-00 KX80 48.00 C, Wossner 8197DC Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

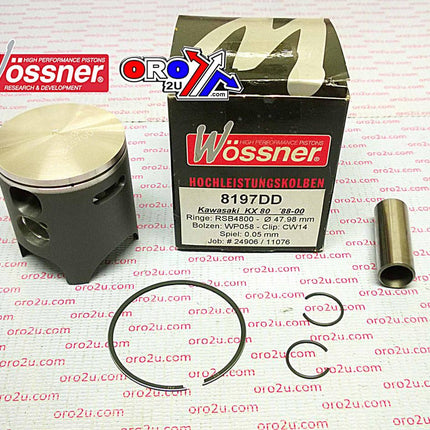

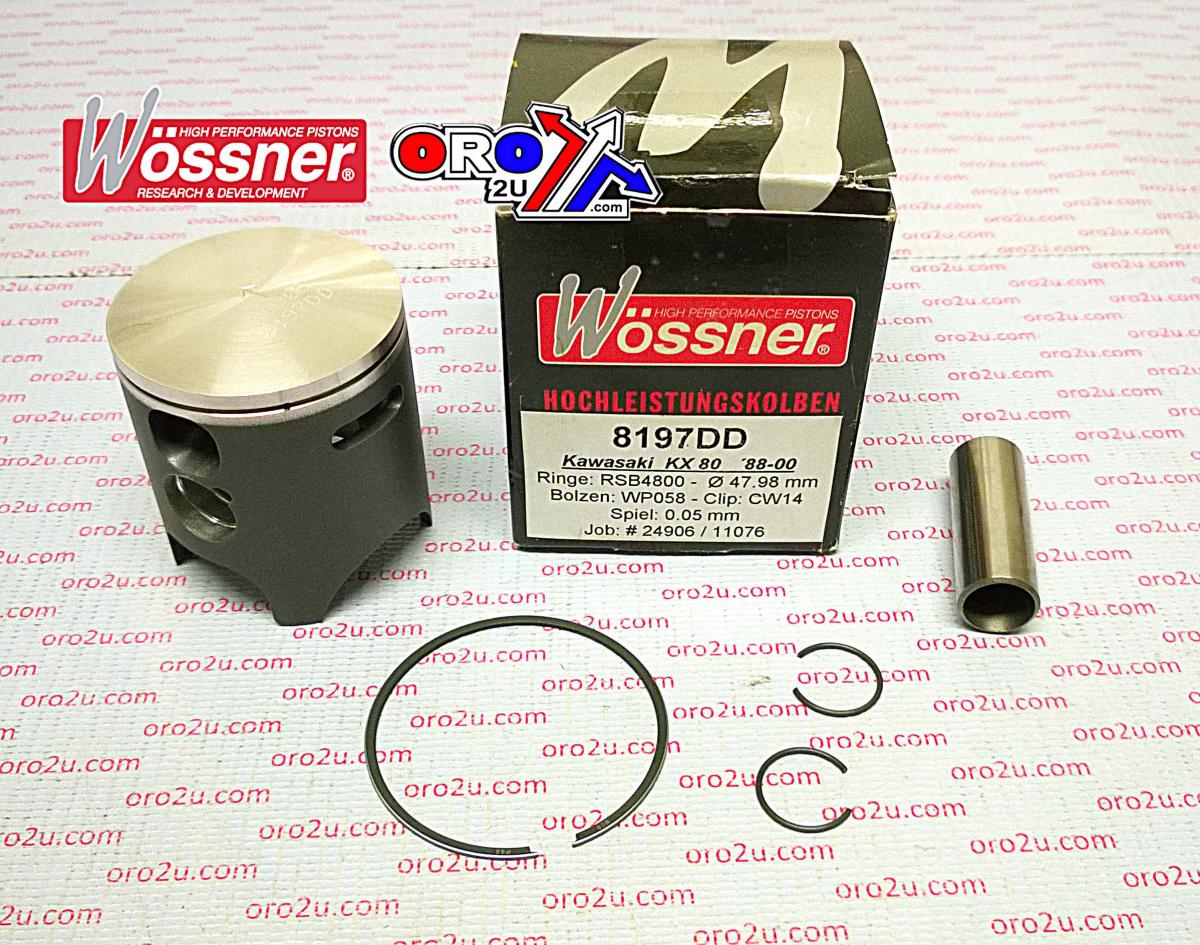

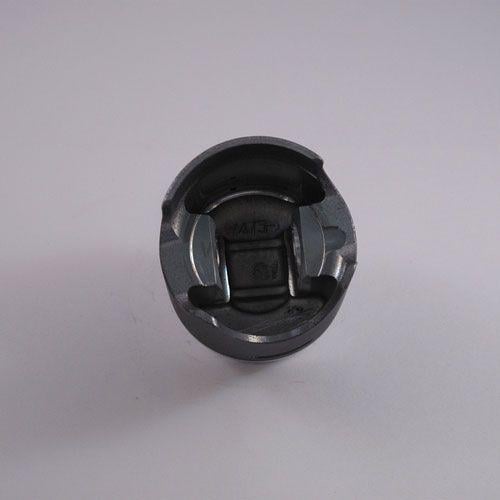

Wossner forged piston kit with a 48.02mm bore size (47.97mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design to promote uniform bearing surfaces under heat expansion, enhancing heat transfer and evenly distributing thrust loads to prevent piston collapse.

Features

Forged piston construction for high strength and durability
Engineered for optimal heat transfer from combustion chamber to cylinder walls
Elliptical design improves bearing surface uniformity during thermal expansion
Reduces localised pressure and prevents piston collapse
Manufactured in Germany

Specifications

Bore Size: 48.02mm (actual 47.97mm)
Display Displacement: 80 cm³
Stroke: 45.80mm
Clearance: 0.05mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

Piston Kit: 8197DC
Lock: CW14
Pin: WP058
Ring Set: RSB4800

Vehicle Fitments

1988 Kawasaki KX80
1989 Kawasaki KX80
1990 Kawasaki KX80
1991 Kawasaki KX80
1992 Kawasaki KX80
1993 Kawasaki KX80
1994 Kawasaki KX80
1995 Kawasaki KX80
1996 Kawasaki KX80
1997 Kawasaki KX80
1998 Kawasaki KX80
1999 Kawasaki KX80
2000 Kawasaki KX80

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1988-2000

Piston Kit 88-00 KX80 48.00 C, Wossner 8197DC Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 48.02mm bore size (47.97mm actual), specifically designed for Kawasaki KX80 models from 1988 to... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W644+C.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 48.02mm bore size (47.97mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design to promote uniform bearing surfaces under heat expansion, enhancing heat transfer and evenly distributing thrust loads to prevent piston collapse.

Features

Forged piston construction for high strength and durability
Engineered for optimal heat transfer from combustion chamber to cylinder walls
Elliptical design improves bearing surface uniformity during thermal expansion
Reduces localised pressure and prevents piston collapse
Manufactured in Germany

Specifications

Bore Size: 48.02mm (actual 47.97mm)
Display Displacement: 80 cm³
Stroke: 45.80mm
Clearance: 0.05mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

Piston Kit: 8197DC
Lock: CW14
Pin: WP058
Ring Set: RSB4800

Vehicle Fitments

1988 Kawasaki KX80
1989 Kawasaki KX80
1990 Kawasaki KX80
1991 Kawasaki KX80
1992 Kawasaki KX80
1993 Kawasaki KX80
1994 Kawasaki KX80
1995 Kawasaki KX80
1996 Kawasaki KX80
1997 Kawasaki KX80
1998 Kawasaki KX80
1999 Kawasaki KX80
2000 Kawasaki KX80

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 80	1988-2000
