Name: Piston Kit 88-04 KX500 86.00, Wossner 8228DA Kawasaki MX 13001-1327
Brand: Wossner
SKU: 56-W575.P0.WO

Piston Kit 88-04 KX500 86.00, Wossner 8228DA Kawasaki MX 13001-1327

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

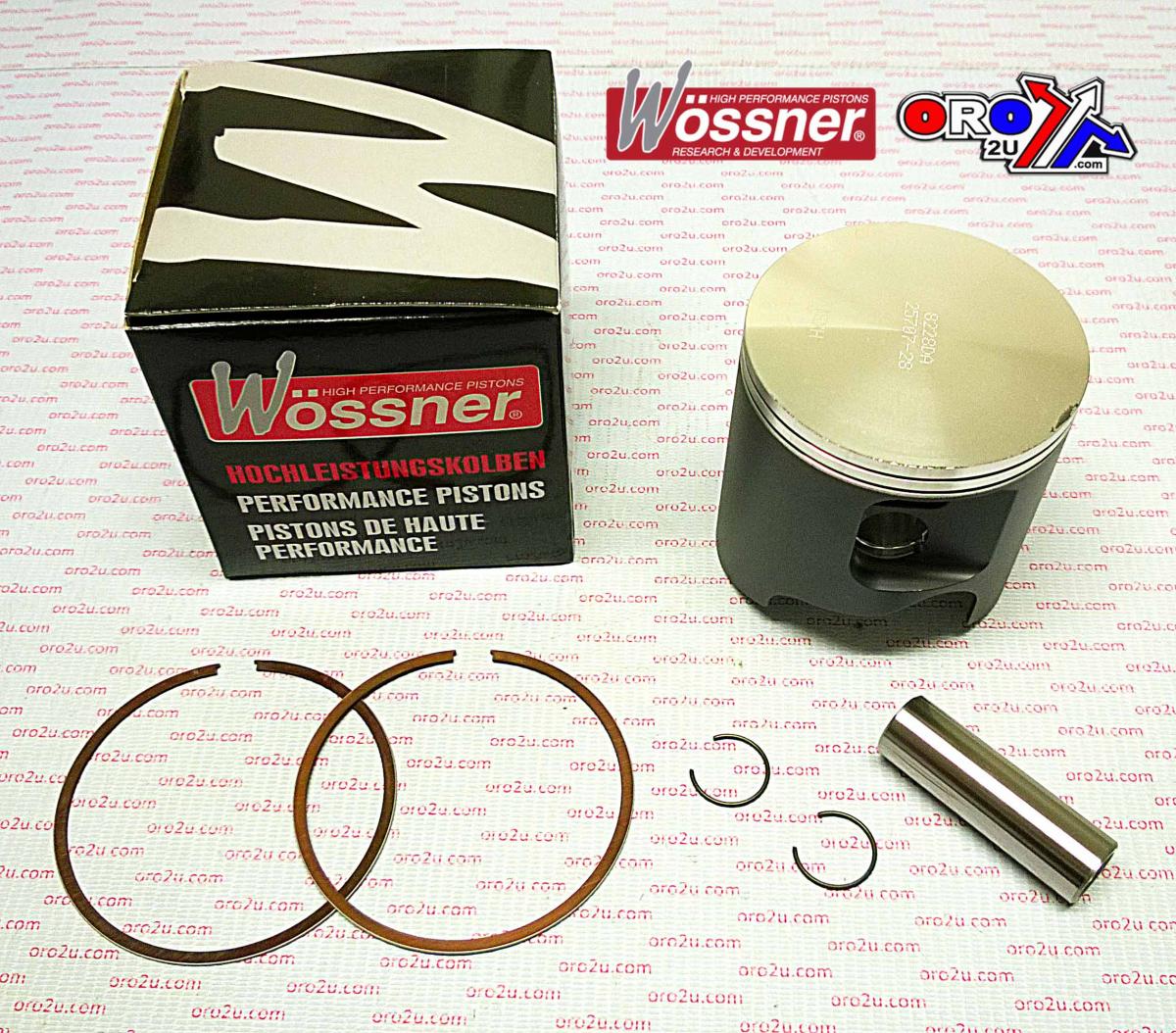

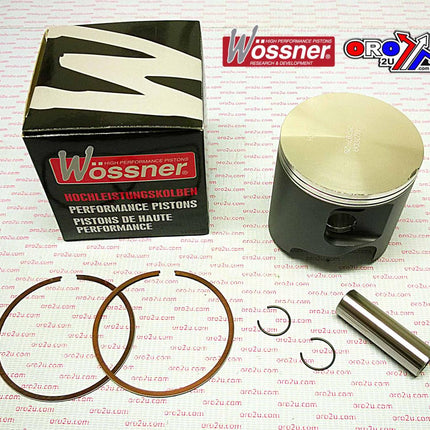

Wossner Forged Piston Kit 8228DA – 86mm Bore (STD) for Kawasaki KX500

The Wossner 8228DA forged piston kit is engineered to deliver durability and precision for the high-performance Kawasaki KX500. With a standard bore of 86mm, this piston ensures efficient combustion and structural integrity under extreme thermal and mechanical stress. The elliptical design helps distribute thrust loads evenly, improving wear resistance and preventing piston failure. Made in Germany, this piston kit is optimised for the two-stroke performance demands of the KX500.

Features

Forged construction ensures strength and durability in demanding conditions
Elliptical design for even expansion and optimal load distribution
Engineered for efficient heat transfer from combustion chamber to cylinder wall
Manufactured in Germany for consistent quality and precision

Specifications

Bore Size: 86.00 mm (actual diameter 85.93 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Kawasaki: 13001-1327
Wiseco: 575M08600
Other: 09104889

Cross-Reference Wossner Part Numbers

Piston Kit: 8228DA
Lock: CW19
Pin: WP019
Ring Set: RSC8600 x2
Rod: P2039
Kit Part No: 56-W575.P0.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004

Piston Kit 88-04 KX500 86.00, Wossner 8228DA Kawasaki MX 13001-1327

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 8228DA – 86mm Bore (STD) for Kawasaki KX500 The Wossner 8228DA forged piston kit is engineered... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W575.P0.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 8228DA – 86mm Bore (STD) for Kawasaki KX500

The Wossner 8228DA forged piston kit is engineered to deliver durability and precision for the high-performance Kawasaki KX500. With a standard bore of 86mm, this piston ensures efficient combustion and structural integrity under extreme thermal and mechanical stress. The elliptical design helps distribute thrust loads evenly, improving wear resistance and preventing piston failure. Made in Germany, this piston kit is optimised for the two-stroke performance demands of the KX500.

Features

Forged construction ensures strength and durability in demanding conditions
Elliptical design for even expansion and optimal load distribution
Engineered for efficient heat transfer from combustion chamber to cylinder wall
Manufactured in Germany for consistent quality and precision

Specifications

Bore Size: 86.00 mm (actual diameter 85.93 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Kawasaki: 13001-1327
Wiseco: 575M08600
Other: 09104889

Cross-Reference Wossner Part Numbers

Piston Kit: 8228DA
Lock: CW19
Pin: WP019
Ring Set: RSC8600 x2
Rod: P2039
Kit Part No: 56-W575.P0.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004
