Description

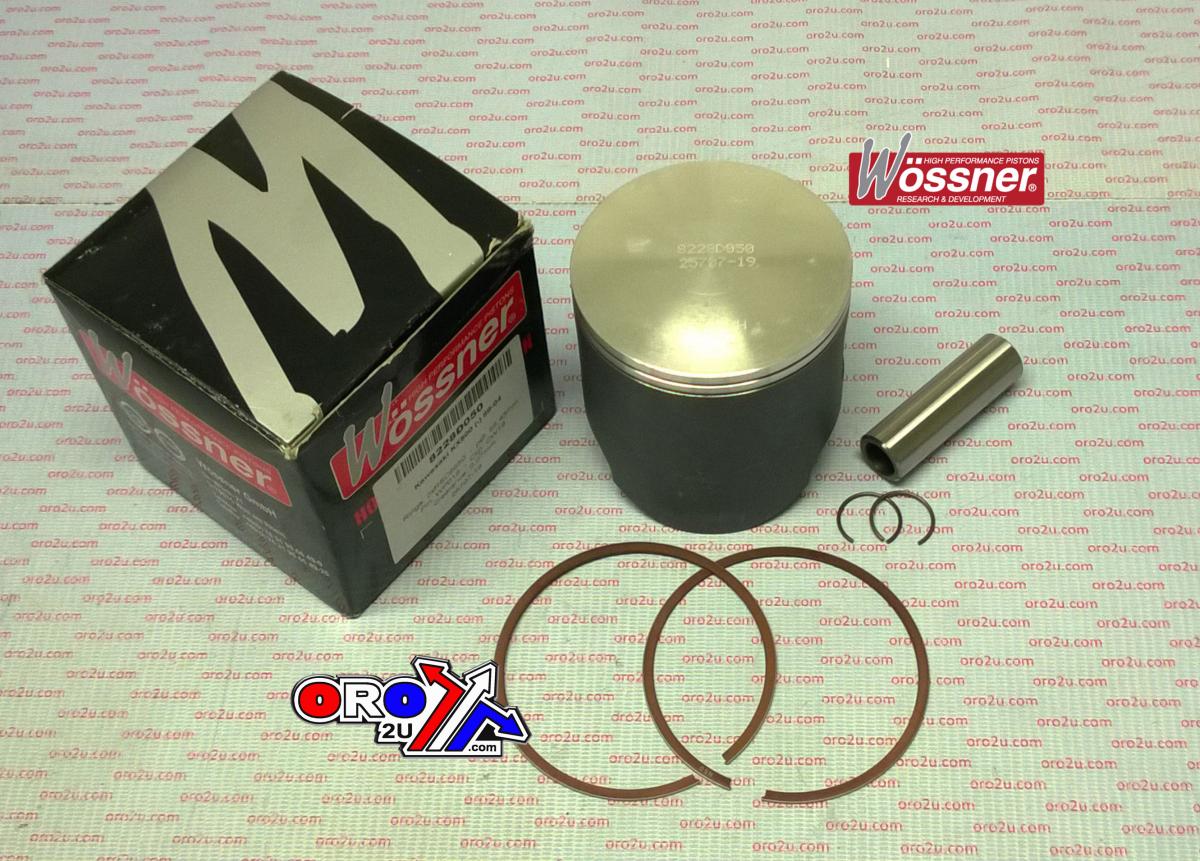

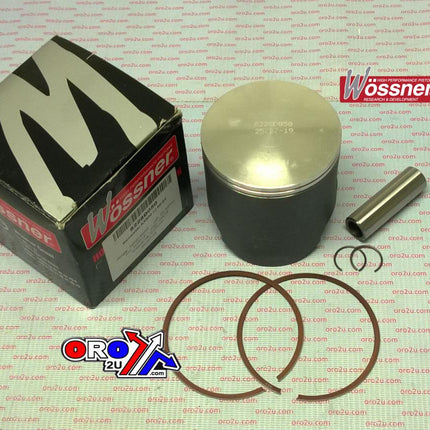

Wossner Forged Piston Kit 8228D050 – 86.50mm Bore (+0.50) for Kawasaki KX500

The Wossner 8228D050 forged piston kit is designed to meet the demands of high-performance off-road riding for the Kawasaki KX500. With a +0.50 mm oversize bore (actual diameter 86.43 mm), this piston improves engine durability while preserving performance characteristics. The elliptical design ensures even expansion and effective heat transfer, distributing thrust loads more evenly and preventing localised wear or piston collapse. Crafted in Germany, this piston is suited for two-stroke racing and recreational applications.

Features

Forged piston construction provides exceptional strength
Elliptical design allows uniform thermal expansion and load distribution
Engineered for efficient combustion heat dissipation
Made in Germany for precision and reliability

Specifications

Bore Size: 86.50 mm (actual diameter 86.43 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference Wossner Part Numbers

Piston Kit: 8228D050
Lock: CW19
Pin: WP019
Ring Set: RSC8650 x2
Rod: P2039
Kit Part No: 56-W575.P2.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004
