Description

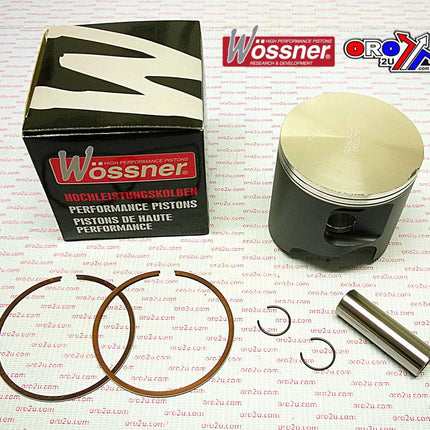

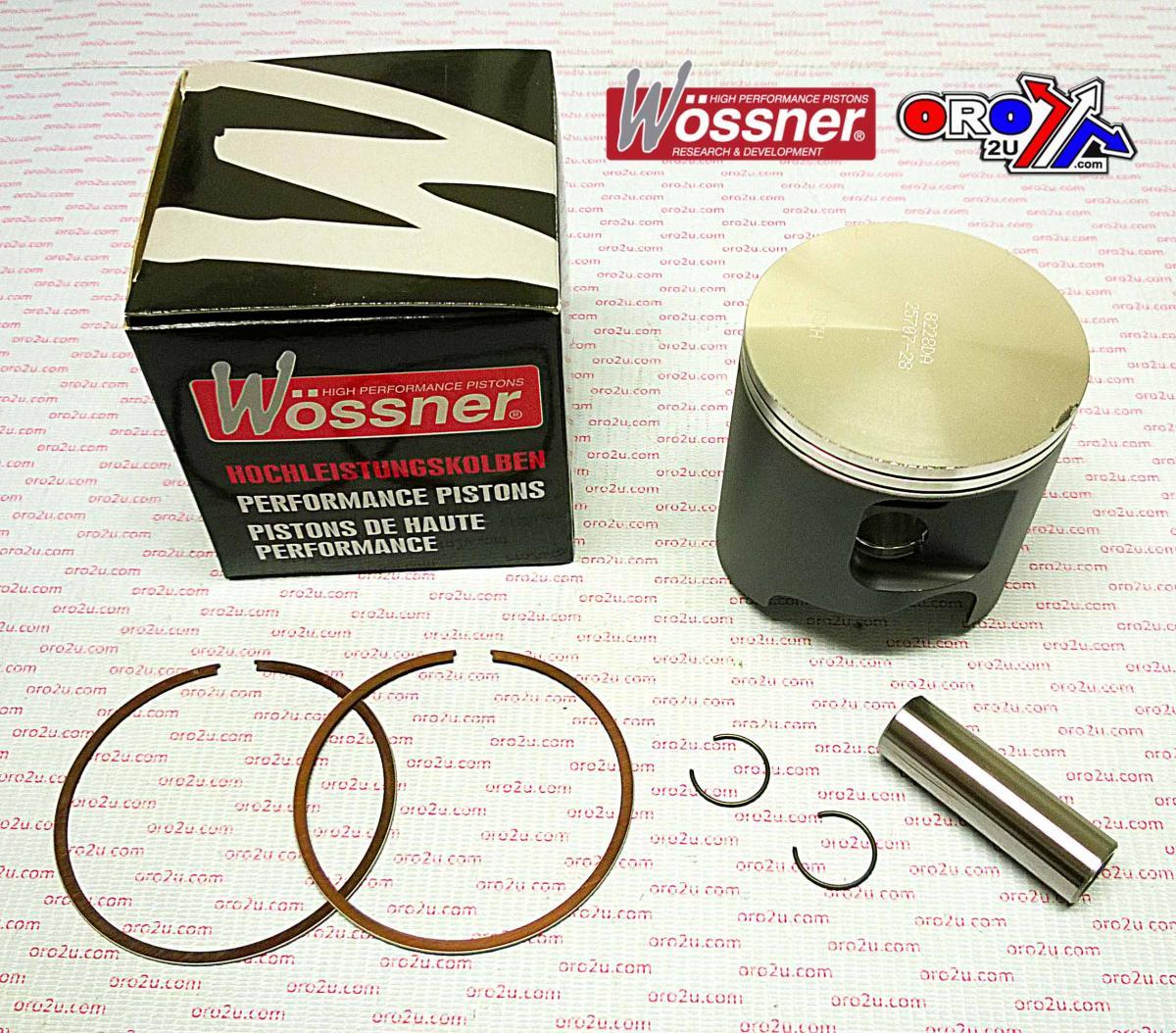

Wossner Forged Piston Kit 8228D100 – 87mm Bore (+1.00) for Kawasaki KX500

The Wossner 8228D100 piston kit is a +1.00 mm oversize forged replacement designed for the Kawasaki KX500 two-stroke engine. Engineered for high durability and performance, this piston maintains optimal heat dissipation and mechanical balance under thermal load. The elliptical profile enhances the bearing surface during expansion, ensuring even thrust distribution and reducing the likelihood of piston collapse. Made in Germany, this piston is crafted for off-road and competition applications where reliability and precision are critical.

Features

Forged piston for maximum strength and resistance to stress
Elliptical design ensures balanced thermal expansion and pressure distribution
Enhanced heat flow path from combustion chamber to cylinder wall
German-manufactured for consistent quality and precision

Specifications

Bore Size: 87.00 mm (actual diameter 86.93 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference Wossner Part Numbers

Piston Kit: 8228D100
Lock: CW19
Pin: WP019
Ring Set: RSC8700 x2
Rod: P2039
Kit Part No: 56-W575.P4.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004
