Description

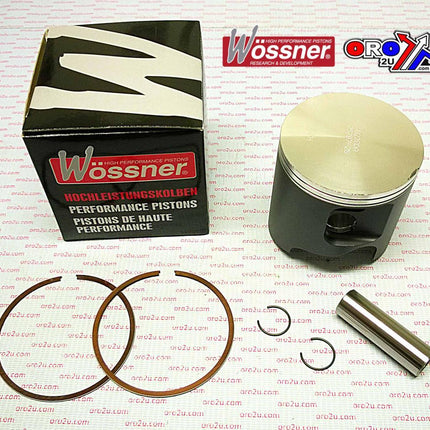

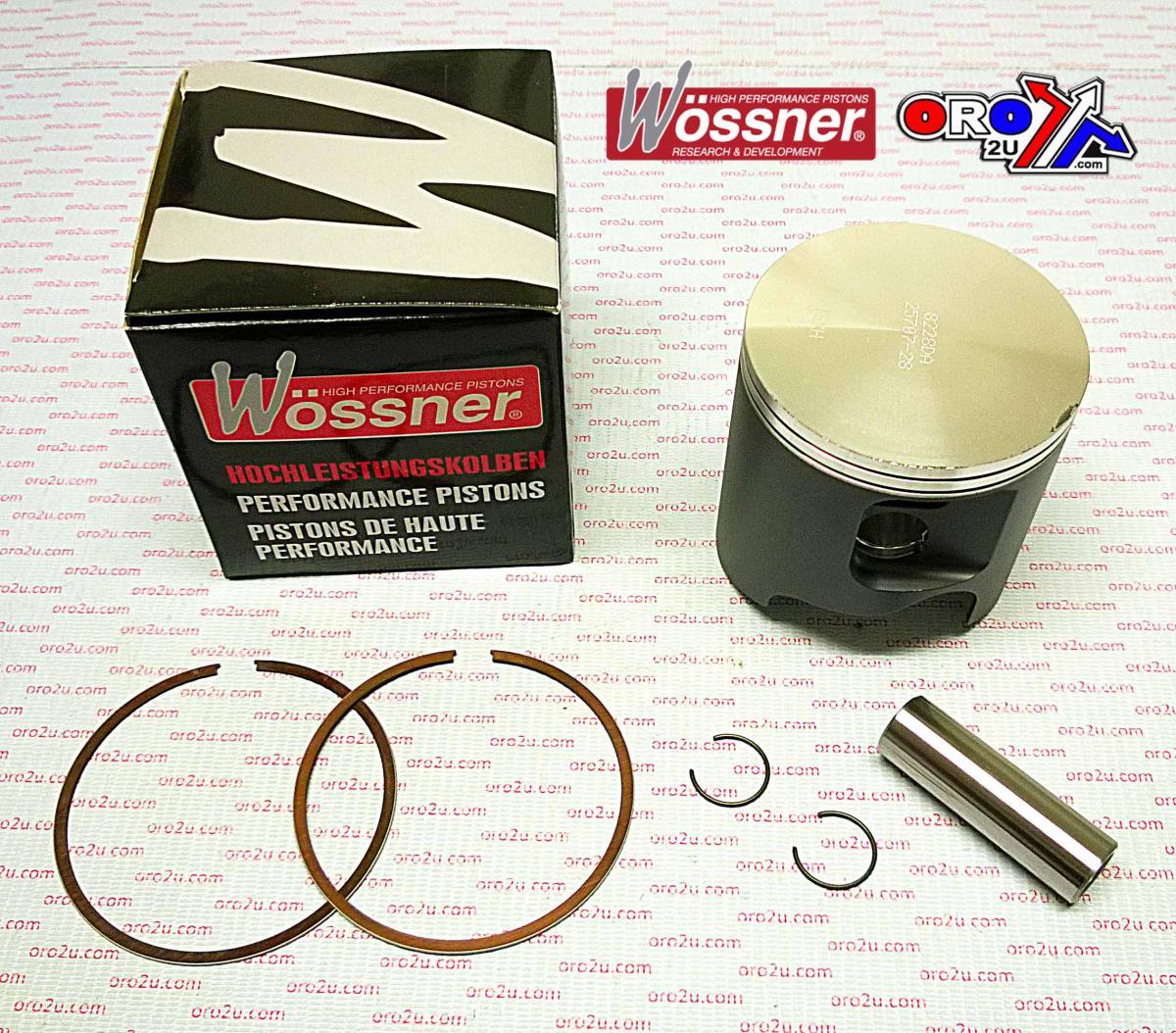

Wossner Forged Piston Kit 8228D150 – 87.50mm Bore (+1.50) for Kawasaki KX500

The Wossner 8228D150 forged piston kit is a +1.50 mm oversize component crafted for Kawasaki KX500 models. This piston features a precision-machined elliptical profile that adapts to heat expansion, ensuring even load distribution and reducing the risk of structural failure. Designed to maximise combustion efficiency and durability, the kit is ideal for high-performance two-stroke applications. Made in Germany, it delivers reliability in demanding off-road conditions.

Features

High-strength forged construction for durability under extreme loads
Elliptical piston shape supports even expansion and load balance
Optimised combustion heat transfer to cylinder walls
Manufactured in Germany for consistent quality and performance

Specifications

Bore Size: 87.50 mm (actual diameter 87.43 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference Wossner Part Numbers

Piston Kit: 8228D150
Lock: CW19
Pin: WP019
Ring Set: RSC8750 x2
Rod: P2039
Kit Part No: 56-W575.P6.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004
