Name: Piston Kit 88-04 KX500 88.00, Wossner 8228D200 Kawasaki MX
Brand: Wossner
SKU: 56-W575.P8.WO

Piston Kit 88-04 KX500 88.00, Wossner 8228D200 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

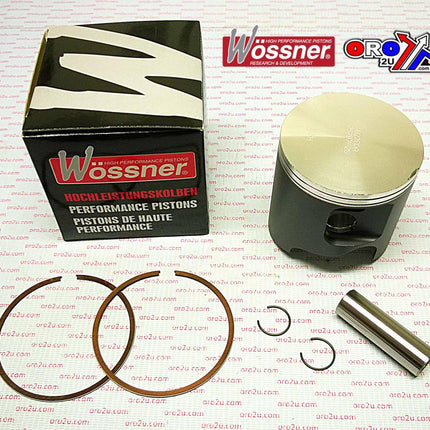

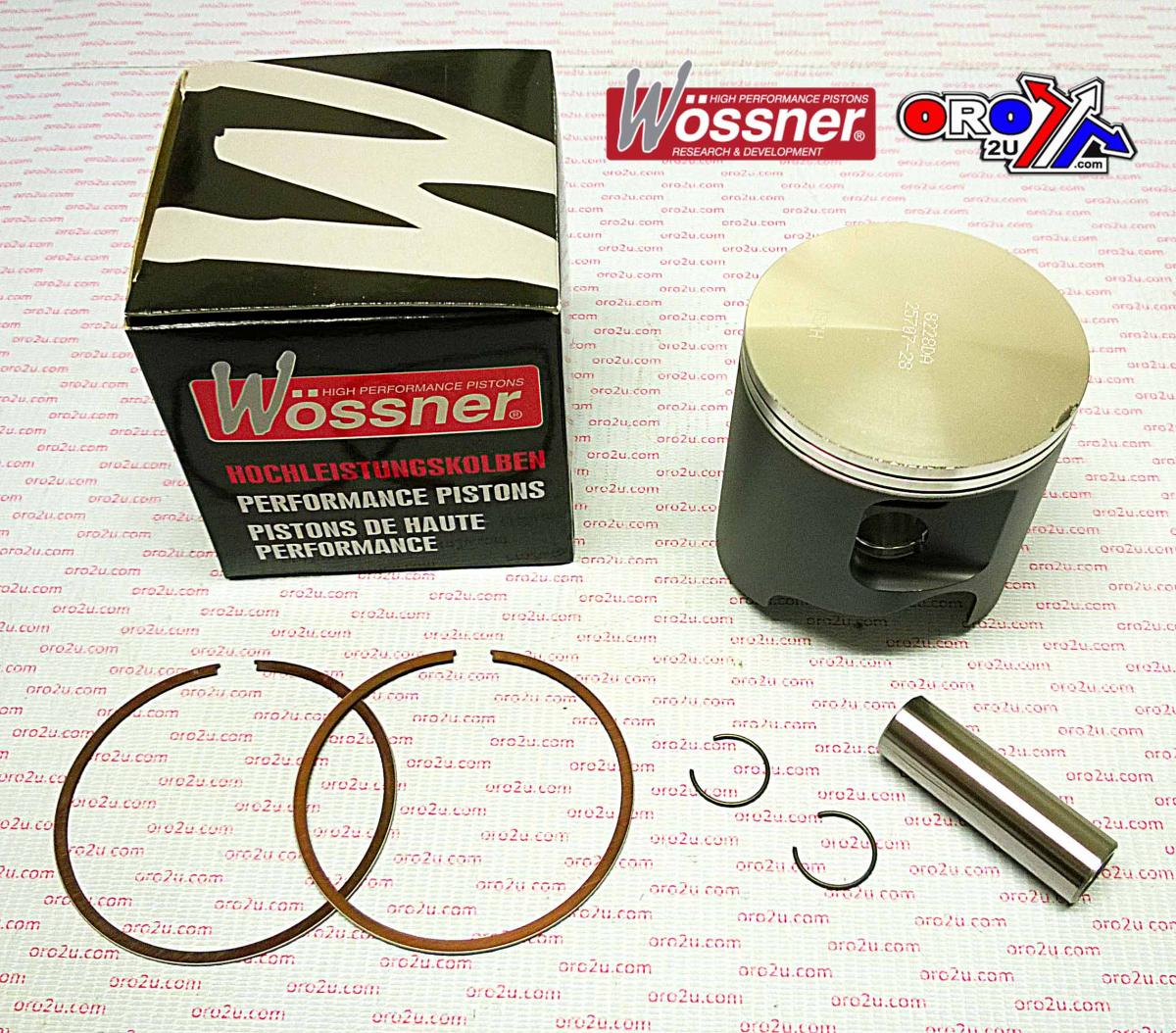

Wossner Forged Piston Kit 8228D200 – 88.00mm Bore (+2.00) for Kawasaki KX500

The Wossner 8228D200 forged piston kit offers a +2.00 mm oversize option for Kawasaki KX500 engines, providing enhanced performance while maintaining engine reliability. This piston features an advanced elliptical profile, allowing for uniform expansion under high temperatures and preventing uneven pressure distribution. Designed to improve heat dissipation and mechanical efficiency, this German-made component is ideal for demanding two-stroke applications in both competition and recreational use.

Features

Forged construction for superior durability and stress resistance
Elliptical shape ensures balanced load distribution during thermal expansion
Engineered for efficient combustion chamber heat transfer
Manufactured in Germany with precision quality standards

Specifications

Bore Size: 88.00 mm (actual diameter 87.93 mm)
Stroke: 86.00 mm
Display Volume: 500 cm³
Compression Height: 37.50 mm
Clearance: 0.07 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference Wossner Part Numbers

Piston Kit: 8228D200
Lock: CW19
Pin: WP019
Ring Set: RSC8800 x2
Rod: P2039
Kit Part No: 56-W575.P8.WO

Vehicle Fitments

1988 Kawasaki KX500
1989 Kawasaki KX500
1990 Kawasaki KX500
1991 Kawasaki KX500
1992 Kawasaki KX500
1993 Kawasaki KX500
1994 Kawasaki KX500
1995 Kawasaki KX500
1996 Kawasaki KX500
1997 Kawasaki KX500
1998 Kawasaki KX500
1999 Kawasaki KX500
2000 Kawasaki KX500
2001 Kawasaki KX500
2002 Kawasaki KX500
2003 Kawasaki KX500
2004 Kawasaki KX500

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 500	1988-2004
