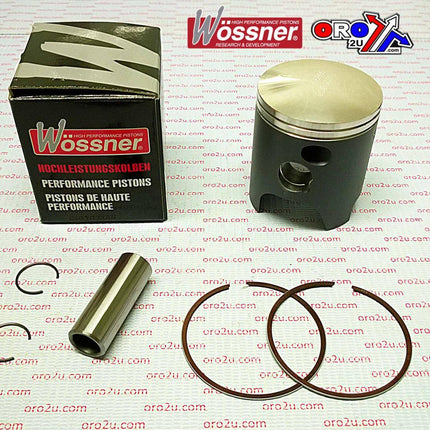

Name: Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA
Brand: Wossner
SKU: 56-W224.000.WO
Price: 126.8 GBP
Availability: InStock

Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Wossner forged piston kit designed for KTM LC2 125 (all years) and Yamaha DT125R, DT125E, DT125X, and TZR125 (1988-2008) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

Forged piston for increased strength and durability
Optimized heat transfer for efficient combustion chamber performance
Elliptical design for even thrust load distribution and reduced piston collapse
Manufactured in Germany

Specifications

Bore Size: 56.00mm
Actual Bore Diameter: 55.94mm
Displacement: 124 cm³
Stroke: 50.70mm
Clearance: 0.06mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 29.90mm
Lock Part Number: CW16
Pin Part Number: WP036
Ring Set Part Number: RSB5600 x 2

Vehicle Fitments

KTM LC2 125 (All Years)
Yamaha DT125R (1988-2008)
Yamaha DT125E (1988-2008)
Yamaha DT125X (1988-2008)
Yamaha TZR125 (1988-2008)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	DT X 125	1991-2006
YAMAHA	DT R 125	1991-2006
YAMAHA	DT E 125	1991-2006
KTM	LC2 125	1997-2000
YAMAHA	DT R 125	1988-2006
YAMAHA	DTX EURO 125	1999-2006
YAMAHA	DTX EURO 125	1991-1998
YAMAHA	DTRE R 125	1991-2006
YAMAHA	DTR 125	1999-2006
YAMAHA	DTR 125	1991-1998
YAMAHA	DT 125	1991-2006

Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit designed for KTM LC2 125 (all years) and Yamaha DT125R, DT125E, DT125X, and TZR125 (1988-2008) models.... Read more

4 in stock 1-2 business days

£126.80 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W224.000.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit designed for KTM LC2 125 (all years) and Yamaha DT125R, DT125E, DT125X, and TZR125 (1988-2008) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

Forged piston for increased strength and durability
Optimized heat transfer for efficient combustion chamber performance
Elliptical design for even thrust load distribution and reduced piston collapse
Manufactured in Germany

Specifications

Bore Size: 56.00mm
Actual Bore Diameter: 55.94mm
Displacement: 124 cm³
Stroke: 50.70mm
Clearance: 0.06mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 29.90mm
Lock Part Number: CW16
Pin Part Number: WP036
Ring Set Part Number: RSB5600 x 2

Vehicle Fitments

KTM LC2 125 (All Years)
Yamaha DT125R (1988-2008)
Yamaha DT125E (1988-2008)
Yamaha DT125X (1988-2008)
Yamaha TZR125 (1988-2008)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	DT X 125	1991-2006
YAMAHA	DT R 125	1991-2006
YAMAHA	DT E 125	1991-2006
KTM	LC2 125	1997-2000
YAMAHA	DT R 125	1988-2006
YAMAHA	DTX EURO 125	1999-2006
YAMAHA	DTX EURO 125	1991-1998
YAMAHA	DTRE R 125	1991-2006
YAMAHA	DTR 125	1999-2006
YAMAHA	DTR 125	1991-1998
YAMAHA	DT 125	1991-2006
