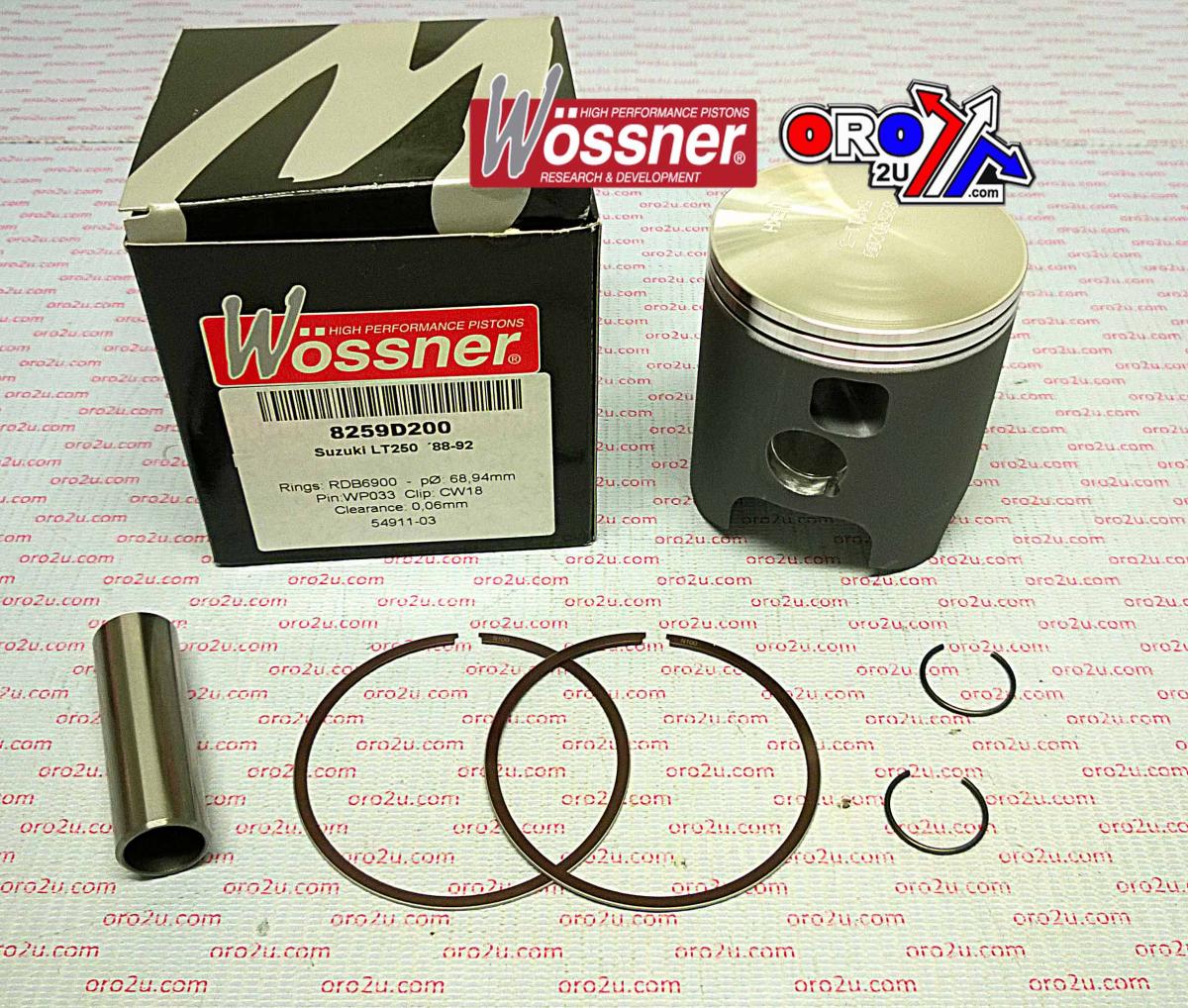

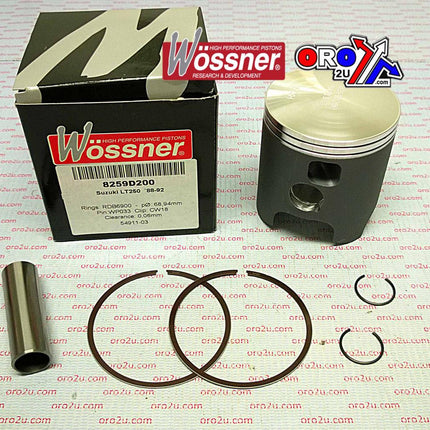

Piston Kit 88-92 LT250 68.00, Wossner 8259D100 Suzuki ATV

Description

The Wossner 8259D100 piston kit is designed for Suzuki LT250 ATV models from 1988 to 1992 and features a 68.00 mm bore for +1.00 mm oversize applications. Manufactured in Germany from high-quality forged materials, this piston ensures excellent durability and efficient heat transfer. Its elliptical design promotes an even load distribution during thermal expansion, minimising localised pressure and helping prevent piston collapse. The kit includes all required components for a complete and dependable engine rebuild.

Features

  • Forged piston ensures superior strength and long service life

  • Optimised for effective heat transfer to cylinder walls

  • Elliptical profile distributes thermal loads evenly to prevent stress concentrations

  • Reduces the risk of piston collapse during high-temperature operation

  • Made in Germany with precision manufacturing standards

Specifications

  • Bore Size: 68.00 mm

  • Actual Bore Diameter: 67.94 mm

  • Stroke: 70.00 mm

  • Display Displacement: 246 cm³

  • Clearance: 0.06 mm

  • Compression Ratio (Wossner and OEM): 2-stroke

  • Compression Height: 37.20 mm

Cross-Reference Wossner Part Numbers

  • Piston Kit: 8259D100

  • Lock: CW18

  • Pin: WP033

  • Ring Set: RSB6800 (Quantity: 2)

  • Part No.: 56-W571+1.00.WO

Vehicle Fitments

  • Suzuki LT250 (1988–1992)

Piston Kit 88-92 LT250 68.00, Wossner 8259D100 Suzuki ATV

Product form

The Wossner 8259D100 piston kit is designed for Suzuki LT250 ATV models from 1988 to 1992 and features a 68.00... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W571+1.00.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner 8259D100 piston kit is designed for Suzuki LT250 ATV models from 1988 to 1992 and features a 68.00 mm bore for +1.00 mm oversize applications. Manufactured in Germany from high-quality forged materials, this piston ensures excellent durability and efficient heat transfer. Its elliptical design promotes an even load distribution during thermal expansion, minimising localised pressure and helping prevent piston collapse. The kit includes all required components for a complete and dependable engine rebuild.

    Features

    • Forged piston ensures superior strength and long service life

    • Optimised for effective heat transfer to cylinder walls

    • Elliptical profile distributes thermal loads evenly to prevent stress concentrations

    • Reduces the risk of piston collapse during high-temperature operation

    • Made in Germany with precision manufacturing standards

    Specifications

    • Bore Size: 68.00 mm

    • Actual Bore Diameter: 67.94 mm

    • Stroke: 70.00 mm

    • Display Displacement: 246 cm³

    • Clearance: 0.06 mm

    • Compression Ratio (Wossner and OEM): 2-stroke

    • Compression Height: 37.20 mm

    Cross-Reference Wossner Part Numbers

    • Piston Kit: 8259D100

    • Lock: CW18

    • Pin: WP033

    • Ring Set: RSB6800 (Quantity: 2)

    • Part No.: 56-W571+1.00.WO

    Vehicle Fitments

    • Suzuki LT250 (1988–1992)
