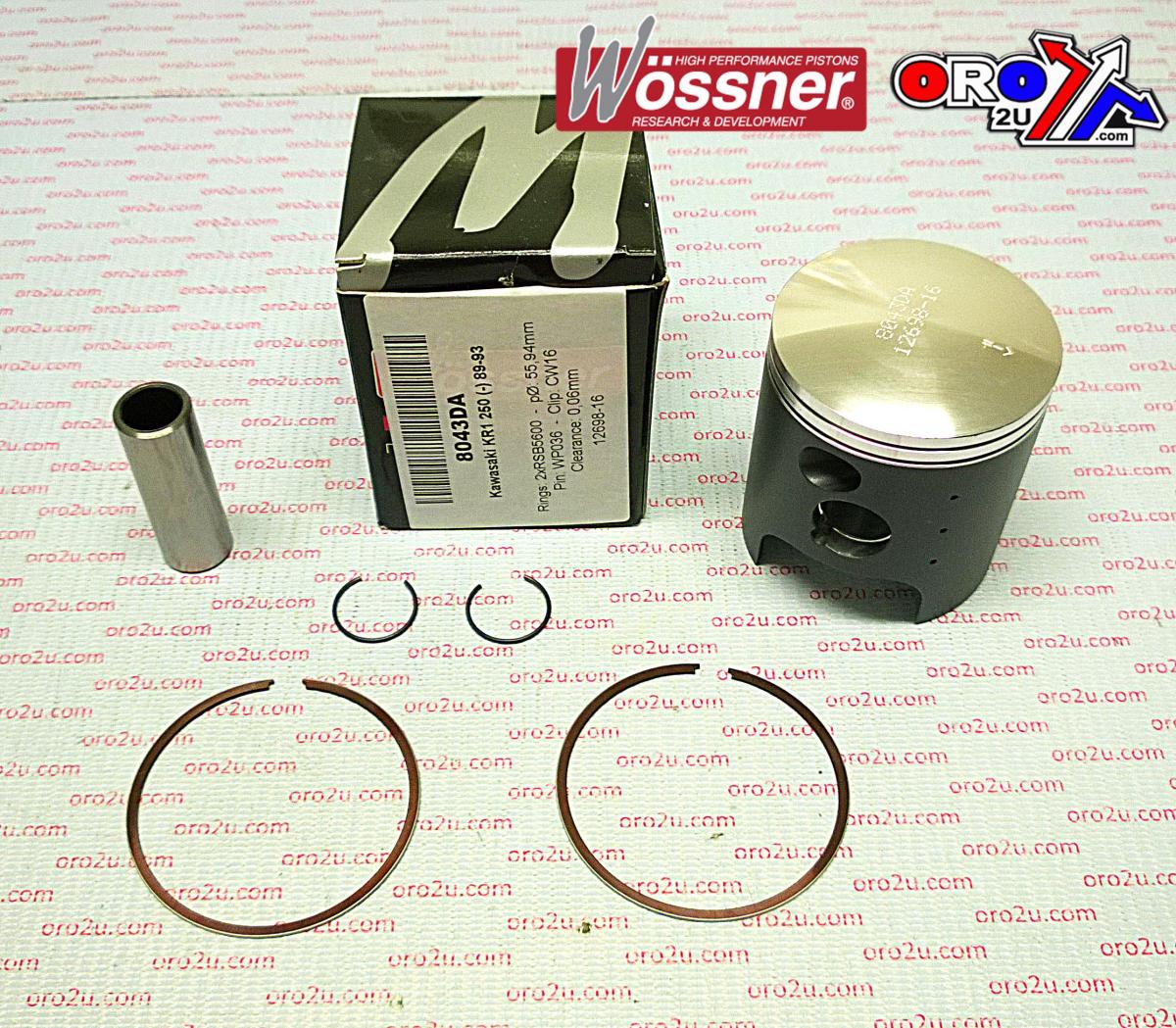

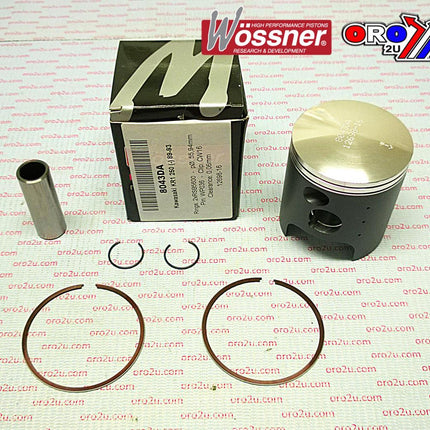

Piston Kit 88-93 KR1-250 56.00, WOSSNER8043DA, Bike Requires 2 Pistons

Description

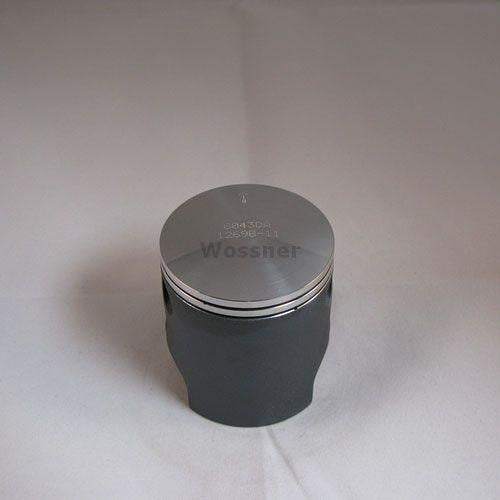

Wossner forged piston kit with a 56mm bore, designed for Kawasaki KR 250 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

  • Forged piston for superior strength and design
  • Optimized heat transfer to cylinder walls
  • Elliptical design for uniform bearing surface and even thrust load distribution
  • Manufactured in Germany

Specifications

  • Bore: 56mm
  • Standard size piston (PN# 8043DA)
  • Lock Part Number: CW16
  • Pin Part Number: WP036
  • Ring Set Part Number: RSB5600 x2
  • Displacement: 249 cm³
  • Stroke: 50.60mm
  • Clearance: 0.06mm
  • Wossner Compression Ratio: 2-stroke
  • OEM Compression Ratio: 2-stroke
  • Compression Height: 29.50mm

Cross-Reference OEM Part Numbers

  • Not provided

Vehicle Fitments

  • Kawasaki KR 250 (1988-1993)

Piston Kit 88-93 KR1-250 56.00, WOSSNER8043DA, Bike Requires 2 Pistons

Product form

Wossner forged piston kit with a 56mm bore, designed for Kawasaki KR 250 models. Engineered for optimal combustion chamber heat... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W179

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Wossner forged piston kit with a 56mm bore, designed for Kawasaki KR 250 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

    Features

    • Forged piston for superior strength and design
    • Optimized heat transfer to cylinder walls
    • Elliptical design for uniform bearing surface and even thrust load distribution
    • Manufactured in Germany

    Specifications

    • Bore: 56mm
    • Standard size piston (PN# 8043DA)
    • Lock Part Number: CW16
    • Pin Part Number: WP036
    • Ring Set Part Number: RSB5600 x2
    • Displacement: 249 cm³
    • Stroke: 50.60mm
    • Clearance: 0.06mm
    • Wossner Compression Ratio: 2-stroke
    • OEM Compression Ratio: 2-stroke
    • Compression Height: 29.50mm

    Cross-Reference OEM Part Numbers

    • Not provided

    Vehicle Fitments

    • Kawasaki KR 250 (1988-1993)
