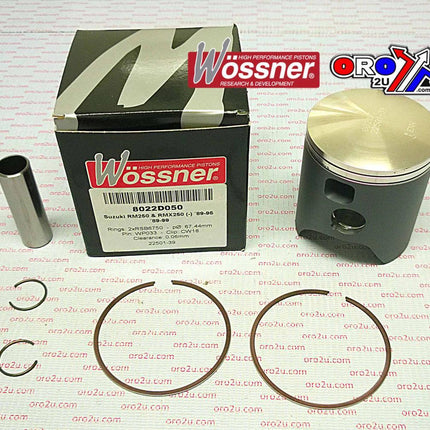

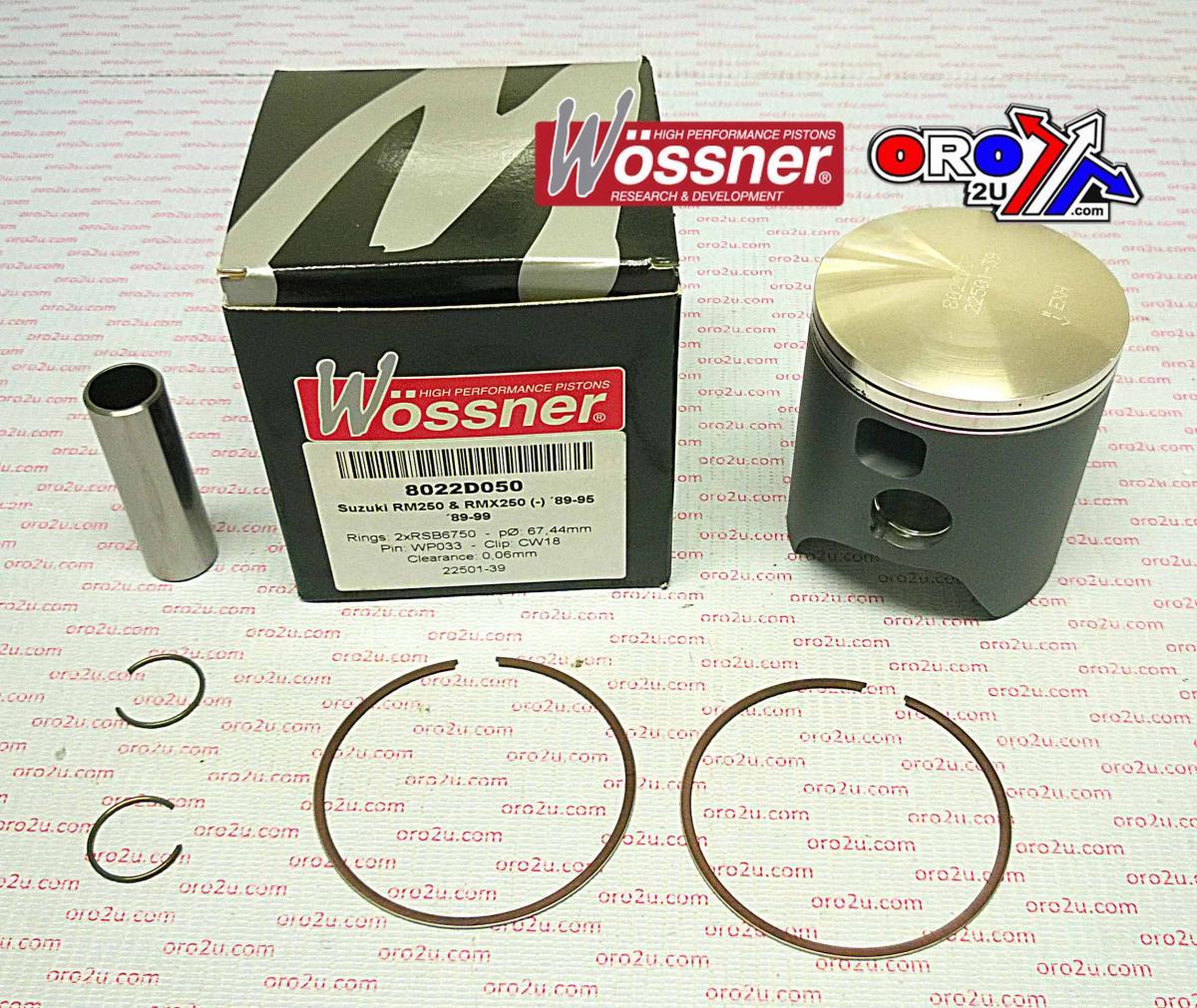

Name: Piston Kit 89-95 RM250 69.00, Wossner 8022D200 Suzuki MX
Brand: Wossner
SKU: 56-W642_200.W0

Piston Kit 89-95 RM250 69.00, Wossner 8022D200 Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Wossner 8022D100 piston with a 69mm bore (68.94mm actual size) is engineered for high durability and strength, fitting Suzuki RM250 (1989-1995) and RMX250 (1993-1995) models. Forged in Germany, it is designed to maximise heat transfer from the combustion chamber to the cylinder walls. The elliptical piston shape promotes even distribution of thrust loads under heat expansion, reducing localised stresses and preventing piston collapse.

Features

Forged construction for enhanced strength and resilience
Optimised for efficient heat transfer to cylinder walls
Elliptical design for uniform load distribution under thermal expansion
Manufactured in Germany

Specifications

Bore: 69mm (actual size 68.94mm)
Part Number: 56-W642_200.WO
Lock Part Number: CW18
Pin Part Number: WP033
Ring Set Part Number: RSB6700 x 2
Displacement: 246 cm³
Stroke: 70.80mm
Clearance: 0.06mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 37.00mm

Cross-Reference OEM Part Numbers

Piston: 12110-28C11-0F0, 12110-29E20-0F0
Ring, Piston: 12141-41600, 12141-41620
Pin, Piston: 12151-28C00, 12151-37F00
Circlip: 09381-18002

Vehicle Fitments

1989-1995 Suzuki RM250
1993-1995 Suzuki RMX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RMX 250	1989-1999
SUZUKI	RM 250	1989-1995

Piston Kit 89-95 RM250 69.00, Wossner 8022D200 Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Wossner 8022D100 piston with a 69mm bore (68.94mm actual size) is engineered for high durability and strength, fitting Suzuki... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W642_200.W0

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Wossner 8022D100 piston with a 69mm bore (68.94mm actual size) is engineered for high durability and strength, fitting Suzuki RM250 (1989-1995) and RMX250 (1993-1995) models. Forged in Germany, it is designed to maximise heat transfer from the combustion chamber to the cylinder walls. The elliptical piston shape promotes even distribution of thrust loads under heat expansion, reducing localised stresses and preventing piston collapse.

Features

Forged construction for enhanced strength and resilience
Optimised for efficient heat transfer to cylinder walls
Elliptical design for uniform load distribution under thermal expansion
Manufactured in Germany

Specifications

Bore: 69mm (actual size 68.94mm)
Part Number: 56-W642_200.WO
Lock Part Number: CW18
Pin Part Number: WP033
Ring Set Part Number: RSB6700 x 2
Displacement: 246 cm³
Stroke: 70.80mm
Clearance: 0.06mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 37.00mm

Cross-Reference OEM Part Numbers

Piston: 12110-28C11-0F0, 12110-29E20-0F0
Ring, Piston: 12141-41600, 12141-41620
Pin, Piston: 12151-28C00, 12151-37F00
Circlip: 09381-18002

Vehicle Fitments

1989-1995 Suzuki RM250
1993-1995 Suzuki RMX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RMX 250	1989-1999
SUZUKI	RM 250	1989-1995
