Name: Piston Kit 89-95 TSR125 58.00, Forged Wossner 8009D200
Brand: Wossner
SKU: 56-W259.200.WO

Piston Kit 89-95 TSR125 58.00, Forged Wossner 8009D200

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

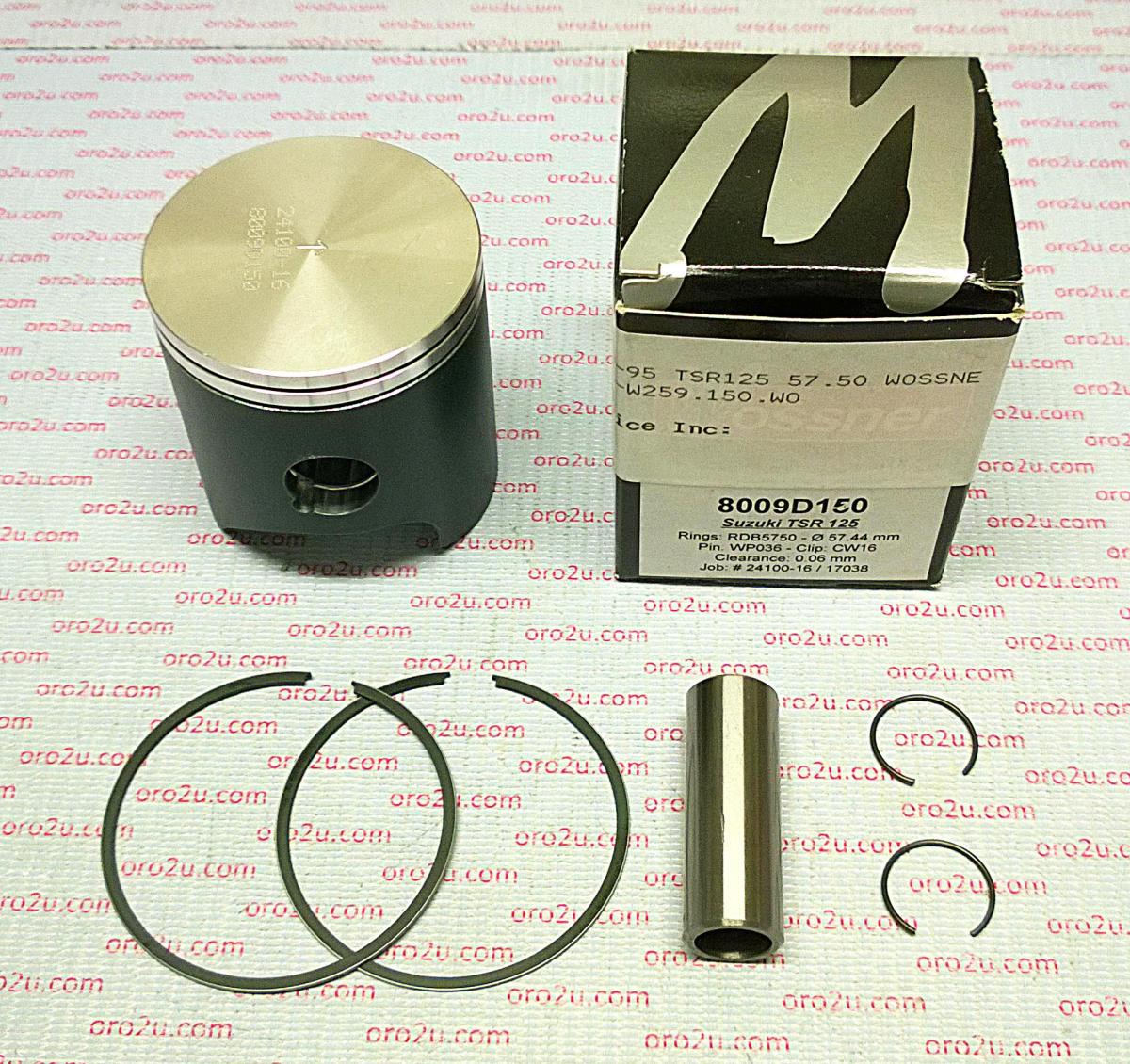

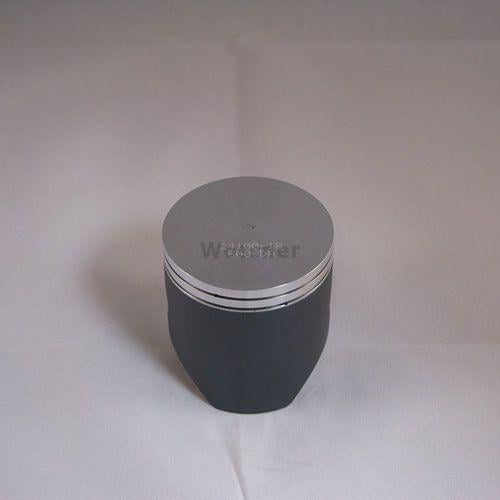

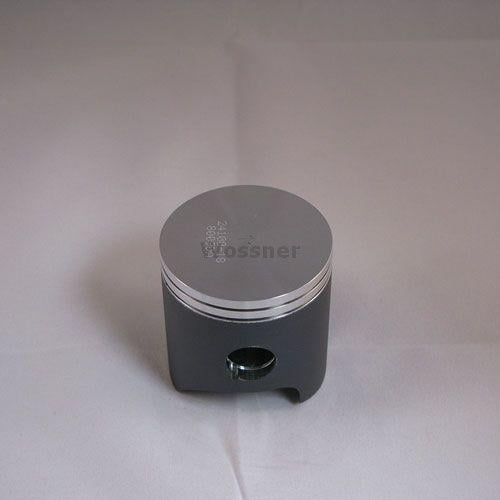

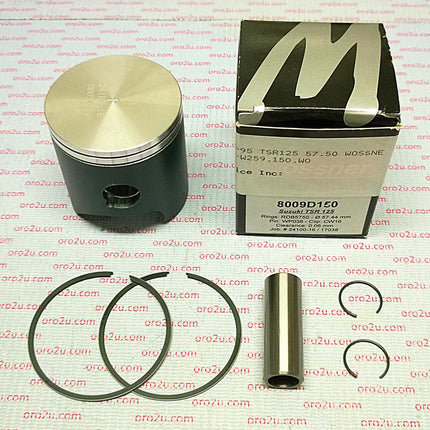

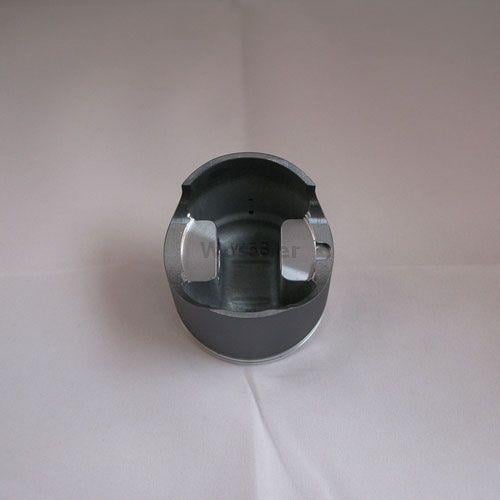

Wossner forged piston kit with a 58.00mm bore and 57.94mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

Forged construction for superior strength
Optimized heat transfer for efficient combustion
Elliptical design for uniform load distribution
Manufactured in Germany

Specifications

Bore: 58.00mm
Diameter: 57.94mm
Display (cm³): 125
Stroke (mm): 54.00
Clearance (mm): 0.06
Wossner Compression Ratio: 2-Stroke
OEM Compression Ratio: 2-Stroke
Compression Height (mm): 28.00

Cross-Reference OEM Part Numbers

Wossner Piston Suzuki TSR125 (PN# 8009D200)
Lock P/N: CW16
Pin P/N: WP036
Ring Set P/N: RSB5800

Vehicle Fitments

Suzuki TSR125 (1989-1995)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	TSR 125	1989-1995

Piston Kit 89-95 TSR125 58.00, Forged Wossner 8009D200

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 58.00mm bore and 57.94mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W259.200.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 58.00mm bore and 57.94mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

Forged construction for superior strength
Optimized heat transfer for efficient combustion
Elliptical design for uniform load distribution
Manufactured in Germany

Specifications

Bore: 58.00mm
Diameter: 57.94mm
Display (cm³): 125
Stroke (mm): 54.00
Clearance (mm): 0.06
Wossner Compression Ratio: 2-Stroke
OEM Compression Ratio: 2-Stroke
Compression Height (mm): 28.00

Cross-Reference OEM Part Numbers

Wossner Piston Suzuki TSR125 (PN# 8009D200)
Lock P/N: CW16
Pin P/N: WP036
Ring Set P/N: RSB5800

Vehicle Fitments

Suzuki TSR125 (1989-1995)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	TSR 125	1989-1995
