Name: Piston Kit 90-91 CR125 54.00 A, Wossner 8107DA Honda MX
Brand: Wossner
SKU: 56-W595+00A.WO

Piston Kit 90-91 CR125 54.00 A, Wossner 8107DA Honda MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

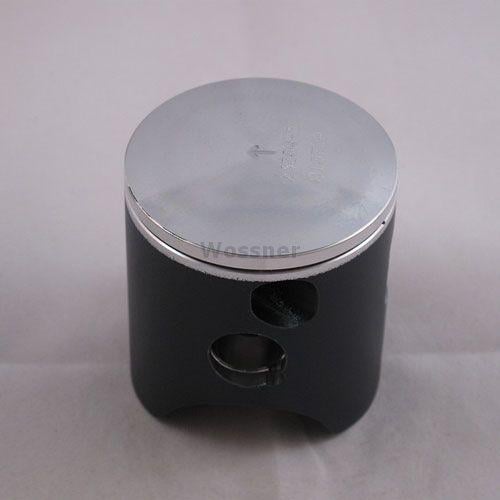

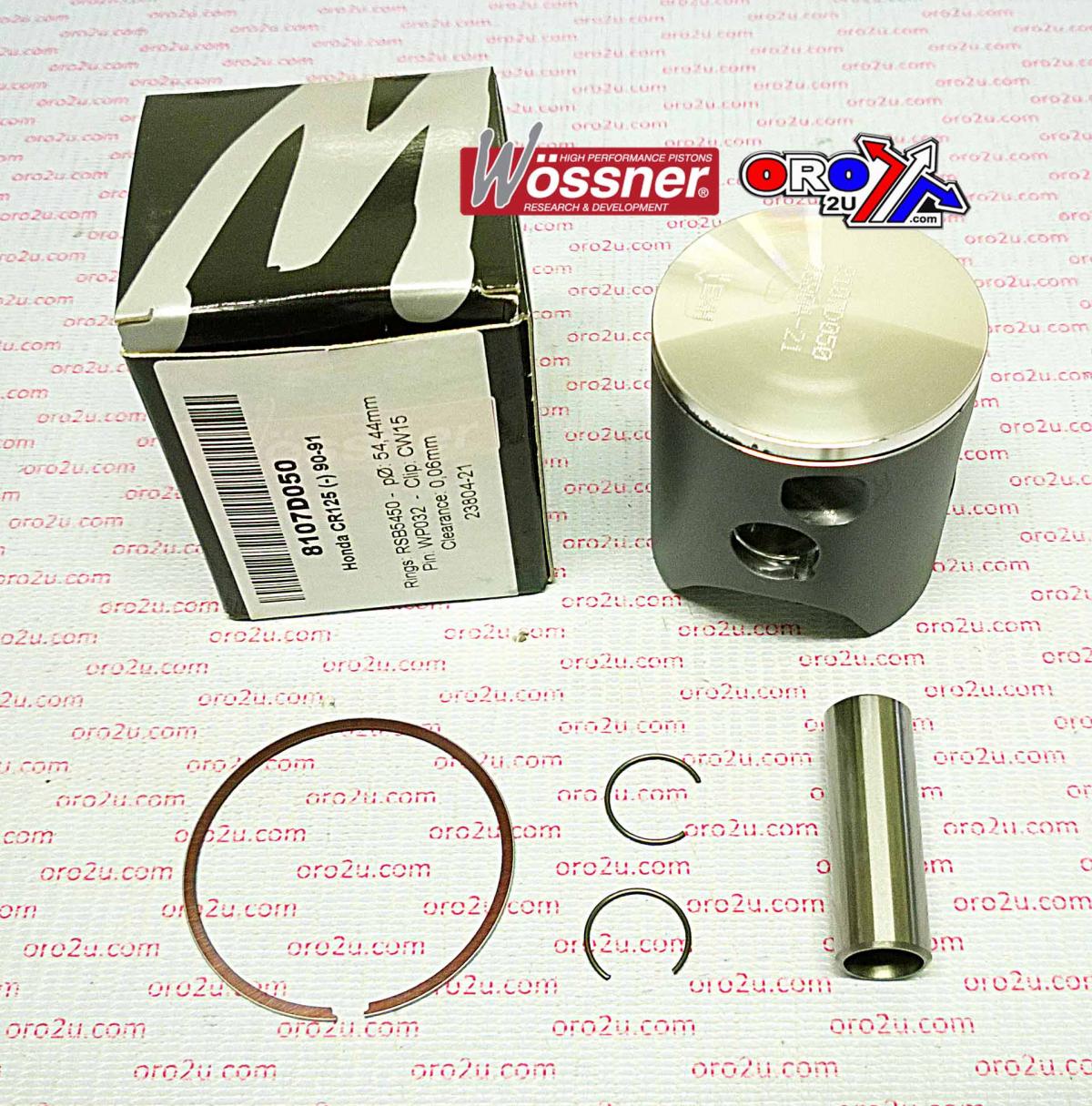

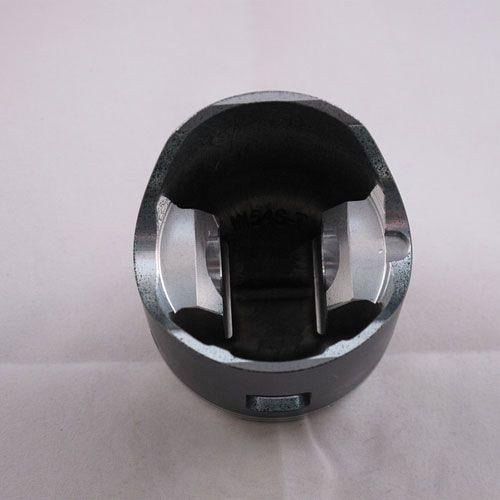

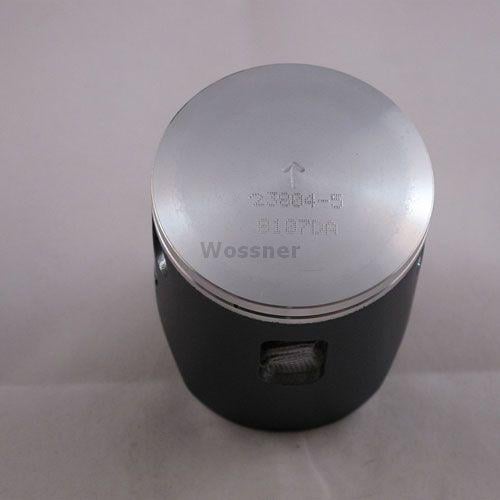

Wossner Forged Piston Kit 54.00mm Bore – Honda CR125 1990–1991 (8107DA STD)
This Wossner forged piston kit is engineered for Honda CR125 models from 1990 to 1991, featuring a standard bore size of 54.00mm (actual 53.94mm). Designed for high-performance 2-stroke engines, it offers exceptional structural integrity, heat transfer efficiency, and resistance to thermal stress. The elliptical piston profile ensures even load distribution during expansion, helping to prevent piston collapse. Precision-made in Germany.

Features

Forged piston for enhanced strength and durability
Engineered to maximise combustion chamber heat transfer
Elliptical profile ensures uniform bearing surface under heat expansion
Suitable for 2-stroke engine performance
Made in Germany

Specifications

Bore Size: 54.00mm (Standard)
Actual Bore: 53.94mm
Compression Height: 28.00mm
Clearance: 0.06mm
Stroke: 54.50mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8107DA
Ring Set: RSB5400
Lock: CW15
Pin: WP032
Rod: P2009
Internal Reference: 56-W595+00A.WO
OEM/Aftermarket Cross Reference: 13120-KZ4-306, 595M05400

Vehicle Fitments

1990 Honda CR125
1991 Honda CR125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CR 125	1990-1991

Piston Kit 90-91 CR125 54.00 A, Wossner 8107DA Honda MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 54.00mm Bore – Honda CR125 1990–1991 (8107DA STD) This Wossner forged piston kit is engineered for... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W595+00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 54.00mm Bore – Honda CR125 1990–1991 (8107DA STD)
This Wossner forged piston kit is engineered for Honda CR125 models from 1990 to 1991, featuring a standard bore size of 54.00mm (actual 53.94mm). Designed for high-performance 2-stroke engines, it offers exceptional structural integrity, heat transfer efficiency, and resistance to thermal stress. The elliptical piston profile ensures even load distribution during expansion, helping to prevent piston collapse. Precision-made in Germany.

Features

Forged piston for enhanced strength and durability
Engineered to maximise combustion chamber heat transfer
Elliptical profile ensures uniform bearing surface under heat expansion
Suitable for 2-stroke engine performance
Made in Germany

Specifications

Bore Size: 54.00mm (Standard)
Actual Bore: 53.94mm
Compression Height: 28.00mm
Clearance: 0.06mm
Stroke: 54.50mm
Displacement: 125 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8107DA
Ring Set: RSB5400
Lock: CW15
Pin: WP032
Rod: P2009
Internal Reference: 56-W595+00A.WO
OEM/Aftermarket Cross Reference: 13120-KZ4-306, 595M05400

Vehicle Fitments

1990 Honda CR125
1991 Honda CR125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CR 125	1990-1991
